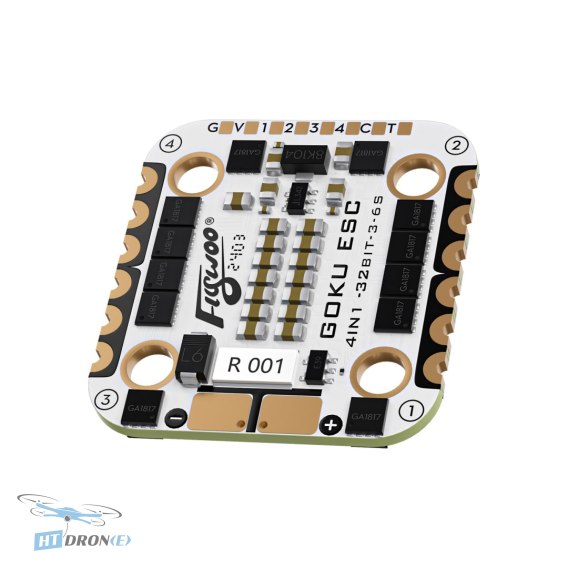

FLYWOO GOKU G45M 4-in-1 ESC 32BIT 2-6S 45A AM32 20x20 for FPV Drones

Introduction

The FLYWOO GOKU G45M 4-in-1 ESC is a top-tier electronic speed controller built for serious FPV pilots demanding precision and unwavering reliability. Powered by the advanced AM32 firmware and supporting a wide PWM frequency range, this ESC ensures exceptionally smooth motor control and responsive throttle input, crucial for competitive FPV flying. It's engineered to handle the demands of high-performance freestyle and racing drones.

Key Advantages

• High-Performance AM32 Firmware for superior motor control.
• 45A Continuous Current rating for robust power delivery.
• 2-6S LiPo Input Voltage compatibility for versatile builds.
• 20x20mm Mounting Pattern for compact and lightweight designs.
• Wide PWM Frequency (24k-128k) for optimized throttle response.
• DShot1200 Support for fast and clear signal transmission.
• Lightweight design at only 6.4g, ideal for weight-sensitive drones.
• Includes all necessary cables and a capacitor for easy installation.

Technical Specifications

• Name: GOKU G45M AM32 4-in-1 ESC
• Firmware: GOKU_F4A32_PRO
• Supported Firmware: AM32
• Supported Protocols: DShot300, DShot600, DShot1200
• PWM Frequency: 24 kHz to 128 kHz
• Input Voltage: 3-6S LiPo
• Continuous Current: 45A

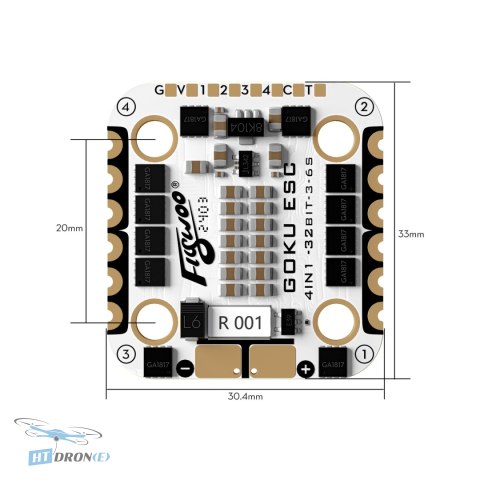

• Mounting: 20 × 20 mm
• Weight: 6.4 g

Applications

This ESC is perfectly suited for building high-performance FPV drones, including freestyle quads, racing drones, and any custom UAV requiring precise and reliable motor management. Its compact size and lightweight nature make it ideal for builds where every gram counts.

Compatibility

The FLYWOO GOKU G45M ESC is designed for 3-6S LiPo battery input and features a 20x20mm mounting standard, making it compatible with a wide range of FPV flight controllers and frames. It supports advanced digital protocols like DShot1200 for seamless integration with modern flight controllers.

FAQ

What is the FLYWOO GOKU G45M 4-in-1 ESC best suited for?

The FLYWOO GOKU G45M 4-in-1 ESC is specifically designed for high-performance FPV drones, making it an excellent choice for both freestyle and racing applications where precise motor control and reliability are paramount.

What is the maximum continuous current for the FLYWOO GOKU G45M ESC?

This ESC offers a continuous current rating of 45A, ensuring it can handle the power demands of most high-performance FPV drone motors during intense flight maneuvers.

What battery voltage range does the FLYWOO GOKU G45M support?

The GOKU G45M ESC is compatible with a wide input voltage range, supporting 3S to 6S LiPo batteries, providing flexibility for various drone builds.

What mounting size does this ESC use?

The FLYWOO GOKU G45M 4-in-1 ESC features a standard 20x20mm mounting pattern, making it compatible with a wide array of modern FPV flight controllers and frames.
