GEPRC GEP-TAKER G4 35A AIO FC for FPV Drones

Introduction

The GEPRC GEP-TAKER G4 35A AIO is a newly developed All-in-One Flight Controller from GEPRC, engineered for demanding FPV drone applications. It utilizes the advanced G473 main control chip, offering significant computational power and improved performance. Designed with the user in mind, it features an upgraded USB Type-C interface and optimized power and motor wiring pads for easier soldering and setup. This flight controller is compatible with 25.5-26.5mm mounting holes, ensuring broad compatibility with various FPV drone frames.

Key advantages

• Powerful Performance: Equipped with the STM32G473CEU6 MCU running at 170MHz for superior processing capabilities.
• Optimized Design: Features an improved USB Type-C connector and user-friendly soldering pads for power and motor connections.
• Wide Compatibility: Supports 25.5-26.5mm mounting patterns, fitting a wide range of FPV drone frames.
• Compact and Lightweight: Measures just 33.4x34.4mm and weighs only 7.7g, ideal for tight builds.
• Integrated OSD: Includes Betaflight OSD with AT7456Ev for essential flight data display.
• Robust ESC: 35A continuous and 45A burst current handling with a BB21F16G ESC MCU.
• Versatile Power: Compatible with 2-4S LIPO batteries, offering flexibility for different builds.
• Built-in Features: Includes buzzer and LED support for enhanced functionality.

Technical specifications

• Model Name: TAKER G4 35A AIO
• MCU: STM32G473CEU6
• IMU: ICM 42688-P
• Target Firmware: TAKERG4AIO
• OSD: Betaflight OSD with AT7456Ev
• UART: R1 T1 / R2 T2 / R4 T4 / R5 T5
• Buzzer: YES
• LED: YES
• USB: USB Type-C
• BEC Output: 5V@3A
• ESC MCU: BB21F16G
• Continuous Current: 35A
• Burst Current: 45A (5″)
• Output Voltage: 2-4S (LIPO battery)
• Supported Protocols: Dshot600, Oneshot, Multishot
• Current Meter: YES
• Target: J -H -15

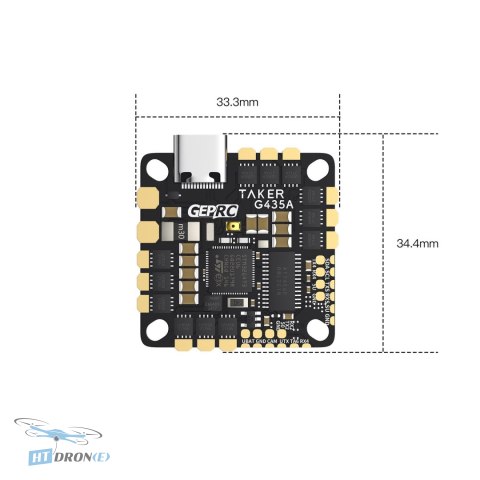

• Size: 33.4x34.4 mm board
• Mounting Hole: 25.5-26.5mm, Φ3.05 mm

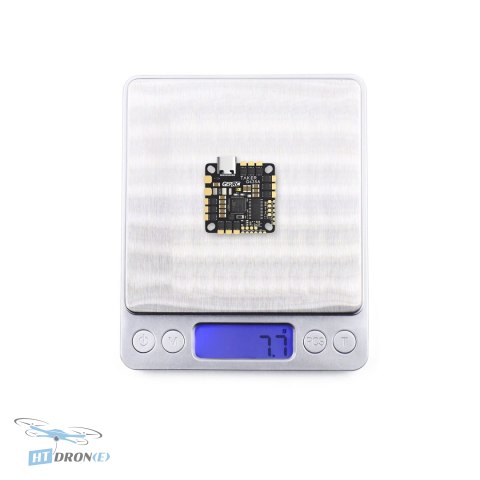

• Weight: 7.7g

Applications

The GEPRC GEP-TAKER G4 35A AIO FC is ideal for building custom FPV racing drones, freestyle quads, and compact cinematic FPV setups. Its robust features and reliable performance make it suitable for pilots looking for a high-quality, integrated flight control solution.

Compatibility

This AIO flight controller features mounting holes compatible with 25.5mm and 26.5mm patterns. It supports 2-4S LIPO batteries and includes multiple UART ports for connecting peripherals like GPS, receivers, and VTX. The USB Type-C interface ensures easy firmware flashing and configuration.

FAQ

What is the GEPRC GEP-TAKER G4 35A AIO FC?

The GEPRC GEP-TAKER G4 35A AIO FC is an integrated flight controller and Electronic Speed Controller (ESC) unit designed for FPV drones. It uses a powerful STM32G473CEU6 MCU and offers a 35A continuous current rating.

What are the key features of the GEP-TAKER G4 35A AIO?

Key features include its compact size, lightweight design (7.7g), STM32G473CEU6 MCU, upgraded USB Type-C port, Betaflight OSD, and compatibility with 25.5-26.5mm mounting holes.

What is the voltage compatibility for the GEPRC GEP-TAKER G4 35A AIO?

This AIO flight controller is compatible with 2-4S LIPO batteries, providing flexibility for various FPV drone builds.

Where can I buy the GEPRC GEP-TAKER G4 35A AIO FC?

You can buy the GEPRC GEP-TAKER G4 35A AIO FC at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What applications is the GEPRC GEP-TAKER G4 35A AIO FC suitable for?

It is best suited for building custom FPV racing drones, freestyle quadcopters, and compact cinematic FPV systems that require a reliable and powerful integrated flight control solution.
