HGLRC AIO FC FLYWOO GOKU F405 HD 1S 5A ELRS V2.0 Flight Controller

Introduction

The Flywoo GOKU F405 HD 1S 5A ELRS V2.0 is an ultralight, all-in-one flight controller meticulously engineered for high-performance 1S HD FPV micro drones. It combines essential components into a single, compact unit, making it ideal for building agile and powerful small-scale drones. This controller is designed to address the need for lightweight, integrated solutions that don't compromise on performance, especially for digital HD video transmission systems.

Key advantages

• Ultralight all-in-one design perfect for 1S micro drone builds.
• Integrated ELRS receiver with TCXO for stable, low-latency control.
• High-performance F405 processor ensures smooth and responsive flight characteristics.
• Built-in 5V BEC supports digital HD systems, including DJI O4.
• Compact cross-shaped layout fits most 1S frames.
• Integrated ESC simplifies wiring and promotes cleaner builds.
• Onboard black box for flight data logging and tuning.
• Reliable gyroscope for stable and precise flight performance.
• Pre-soldered motor connectors for easier installation.

Technical specifications

• Flight Controller:
• MCU: STM32F405BGA
• Gyroscope: ICM42688P
• Barometer: SPL06
• Blackbox: 8 MB
• Receiver: ELRS 2.4 GHz (TCXO)
• BEC: 5V / 3A (Supports HD systems including DJI O4)
• UARTs: UART3 (ELRS), UART4, UART5 (SBUS), UART
• Protocols: CRSF, SBUS, iBus, Spektrum
• Firmware: FLYWOOF405S_AIO

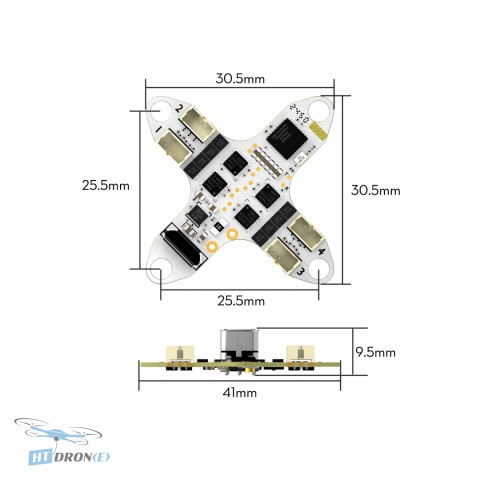

• Dimensions: 30.5 x 30.5 mm
• Mounting Pattern: 25.5 x 25.5 mm

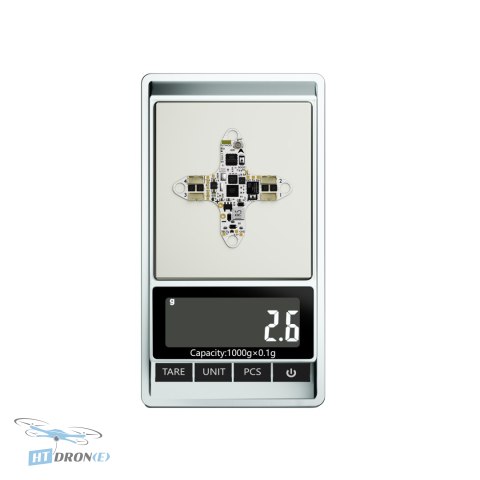

• Weight: 2.6 g
• ESC (4 in 1):
• Input Voltage: 1S LiPo
• Continuous Current: 5 A
• Peak Current: 8 A
• Firmware: Bluejay
• Signal Protocol: DShot300 / DShot600
• Motor Connector: JST1.25
• Battery Connector: A30

Applications

This flight controller is specifically designed for FPV micro drones, small freestyle quads, and indoor racing setups. Its lightweight nature and integrated features make it suitable for building agile, high-definition FPV systems that require minimal weight and clean wiring. Ideal for pilots who want to experience crisp HD footage from their small 1S builds.

Compatibility

The GOKU F405 HD AIO board features a 25.5x25.5mm mounting pattern compatible with many 1S FPV frames. It supports various receiver protocols including CRSF, SBUS, iBus, and Spektrum. The integrated 5V BEC is designed to power digital HD systems like the DJI O4. Motor connections use JST1.25 connectors, and the battery connects via an A30 connector, compatible with 1S LiPo batteries.

FAQ

What is the HGLRC FLYWOO GOKU F405 HD 1S 5A ELRS V2.0?

This is an ultralight, all-in-one flight controller designed for 1S HD FPV micro drones. It integrates the flight controller, ESC, and an ELRS receiver into a single compact unit.

What are the main advantages of this AIO flight controller?

Key advantages include its ultralight design for 1S builds, integrated ELRS for stable control, a 5V BEC for HD systems like DJI O4, and a compact layout simplifying builds. Pre-soldered connectors also ease installation.

What are the technical specifications of the GOKU F405 HD 1S 5A ELRS V2.0?

It features an STM32F405 MCU, ICM42688P gyro, 8MB blackbox, ELRS 2.4GHz receiver, 5V/3A BEC, and a 5A continuous ESC. It has a 25.5x25.5mm mounting pattern and weighs only 2.6g.

What digital HD systems is this flight controller compatible with?

The built-in 5V BEC is specifically designed to support digital HD video transmission systems, including the popular DJI O4 system.
