IFlight BLITZ M10 GPS V2 Module with QMC5883L Compass for FPV Drones

Introduction

The iFlight BLITZ M10 GPS V2 Module is a newly upgraded navigation component designed for FPV drones. It offers significantly faster and more stable satellite search capabilities, ensuring reliable positioning for your aerial adventures. This module is perfect for pilots who demand accuracy and speed in their FPV setups, from racing to freestyle flying.

Key advantages

• Advanced UBLOX M10 Chipset: Provides low power consumption and a strong satellite signal for consistent performance.
• Integrated QMC5883L Compass: Offers precise heading information, crucial for stable flight and navigation.
• Fast Satellite Acquisition: Features a built-in farad capacitor for quicker cold and hot starts, minimizing downtime.
• High Precision Positioning: Delivers accurate location data for reliable navigation and return-to-home functions.
• Enhanced Signal Processing: Includes a built-in LNA (Low Noise Amplifier), RF filter, and TCXO (Temperature Compensated Crystal Oscillator) for superior signal integrity.
• 10 Hz Refresh Rate: Provides up-to-date positioning data for smooth flight control.
• Onboard Flash Memory: Stores configuration settings for convenience.
• Multi-GNSS Support: Compatible with GPS, SBAS, Galileo, QZSS, and Glonass systems for global coverage.

Technical specifications

• Compass Module: QMC5883L
• Baud Rate: 9600-460800 / 4800bps-921600bps (Default: 115200bps)
• Sensitivity: Tracking: -167dBm
• Cold Start: 27s
• Hot Start: 1s
• Max Altitude: 80000 m
• Max Speed: 500 m/s
• Speed Accuracy: 0.05 m/s
• Max Acceleration: ≦ 4G
• Refresh Rate: 10 Hz

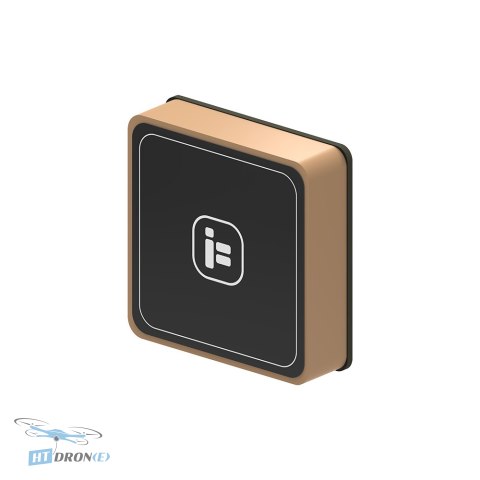

• GPS Antenna Size: 25 x 25 x 6 mm
• Overall Dimensions: 25 x 25 x 11 mm
• Weight: 16 g
• Input Voltage: 3.3-5.5 V

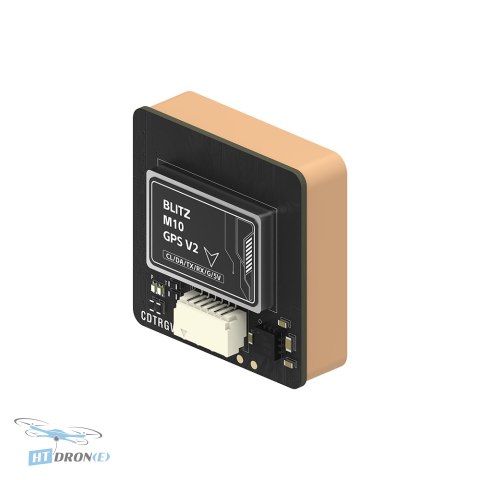

• GPS Pin Definition: RX/TX UART
• Compass Pin Definition: SDA/SLA
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Applications

This GPS module is essential for various FPV and UAV applications, including FPV drone racing, freestyle flying, aerial photography, long-range exploration, autonomous flight missions, and drone inspection tasks. Its precision and reliability make it suitable for both hobbyists and professional users.

Compatibility

The iFlight BLITZ M10 GPS V2 Module is compatible with flight controllers supporting UART interfaces for GPS (RX/TX) and I2C interfaces for the compass (SDA/SLA). It operates with an input voltage range of 3.3-5.5V, making it compatible with most modern FPV flight stacks.

FAQ

What is the iFlight BLITZ M10 GPS V2 Module?

The iFlight BLITZ M10 GPS V2 Module is an upgraded navigation unit for FPV drones, featuring the UBLOX M10 chipset for faster satellite acquisition and an integrated QMC5883L compass for precise heading. It ensures reliable positioning for various aerial applications.

What are the main advantages of the BLITZ M10 GPS V2?

Key advantages include rapid satellite search with a farad capacitor for quick starts, high precision positioning, a 10Hz refresh rate, and support for multiple GNSS systems (GPS, Galileo, Glonass, etc.). It also boasts low power consumption and a strong signal.

What GNSS systems does the iFlight BLITZ M10 GPS V2 support?

The module supports a wide range of GNSS constellations, including GPS, SBAS, Galileo, QZSS, and Glonass, ensuring global coverage and improved accuracy in diverse environments.

What is the refresh rate of the BLITZ M10 GPS V2 module?

The iFlight BLITZ M10 GPS V2 module offers a refresh rate of 10 Hz, providing up-to-date positioning data for smooth and responsive control during FPV flights.

Where can I buy the iFlight BLITZ M10 GPS V2 Module with fast delivery?

You can order the iFlight BLITZ M10 GPS V2 Module from HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast international delivery via DHL for customers worldwide.
