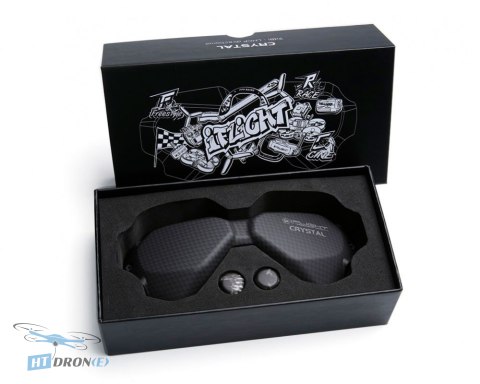

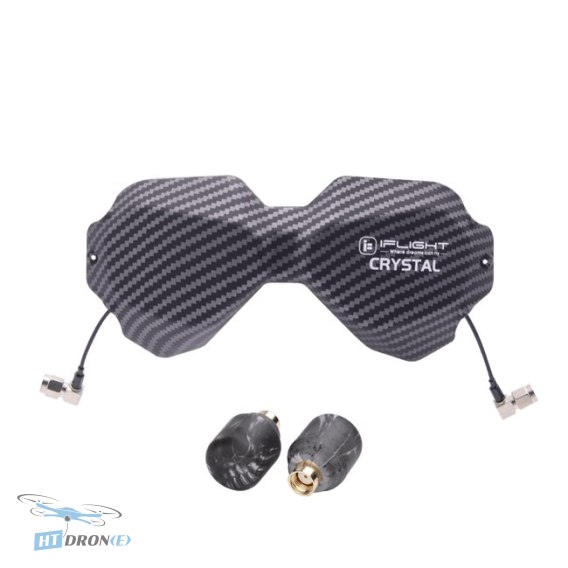

IFlight Crystal HD Patch + Short Stubby Combo LHCP FPV Goggle Antenna Set

Introduction

Upgrade your FPV experience with the iFlight Crystal HD Patch + Crystal Short Stubby Combo antenna set. Specifically engineered for DJI Digital FPV Goggles, this advanced system replaces your stock antenna plate, delivering significantly enhanced signal reception. It's ideal for FPV pilots who demand superior range, clarity, and reliability, especially in challenging environments with dense foliage or complex terrain.

Key advantages

• High-gain LHCP directional patch antenna for extended range and improved signal penetration.
• Includes two Crystal Short Stubby omni-directional antennas for versatile coverage.
• Wide beamwidth (105° H, 75° V) ensures a broad reception area, even off-axis.
• Low-profile, compact design reduces bulk for easier transport and handling.
• Durable RG178 cables provide excellent longevity and signal integrity.
• Optimized performance with 93% antenna efficiency and axial ratio ≤1.6.
• Direct RP-SMA connector fits DJI Digital FPV Goggles seamlessly.
• Offers a noticeable upgrade over standard stock antennas for clearer video feeds.

Technical specifications

• Frequency: 5.8 GHz
• Bandwidth: 5600~5900 MHz
• Gain: 9 dBi
• Axial Ratio: ≤1.6
• Impedance: 50Ω
• Radiation Efficiency: 93%
• Beamwidth: 105° Horizontal, 75° Vertical
• Polarization: Left-Hand Circularly Polarized (LHCP)
• Cable: RG178
• Connector: RP-SMA (Direct fit for DJI Goggles, not compatible with standard SMA)
• Weight: 52.1 g

Applications

This antenna set is perfect for a wide range of FPV applications, including long-range flying, drone racing, freestyle FPV, aerial photography, and general FPV piloting where a clear and stable video link is crucial. It enhances the performance of DJI Digital FPV Goggles in various conditions.

Compatibility

The iFlight Crystal HD Patch + Short Stubby Combo features RP-SMA connectors, designed to fit directly onto DJI Digital FPV Goggles. Please note: these are not compatible with standard SMA connectors.

FAQ

What is the iFlight Crystal HD Patch + Short Stubby Combo?

This is an advanced FPV antenna set designed for DJI Digital FPV Goggles. It includes a high-gain LHCP directional patch antenna and two short stubby omni-directional antennas to significantly improve your video reception range and clarity.

Who is this antenna set for?

This antenna set is ideal for FPV pilots using DJI Digital FPV Goggles who want to enhance their long-range capabilities, improve signal penetration through obstacles, and achieve a more stable video link during flights.

What are the main benefits of using this iFlight antenna combo?

The key benefits include extended flight range due to the high-gain LHCP directional antenna, better signal penetration through trees and buildings, a wider reception beamwidth, and a more compact, durable design compared to stock antennas.

Does this antenna set fit all FPV goggles?

No, the iFlight Crystal HD Patch + Short Stubby Combo is specifically designed with RP-SMA connectors to fit DJI Digital FPV Goggles. It is not compatible with standard SMA connectors or other FPV goggle brands.

Where can I buy the iFlight Crystal HD Patch + Short Stubby Combo with fast delivery?

You can buy the iFlight Crystal HD Patch + Short Stubby Combo at HTDRONE. We offer fast and reliable delivery options for FPV enthusiasts, ensuring you get your order quickly.
