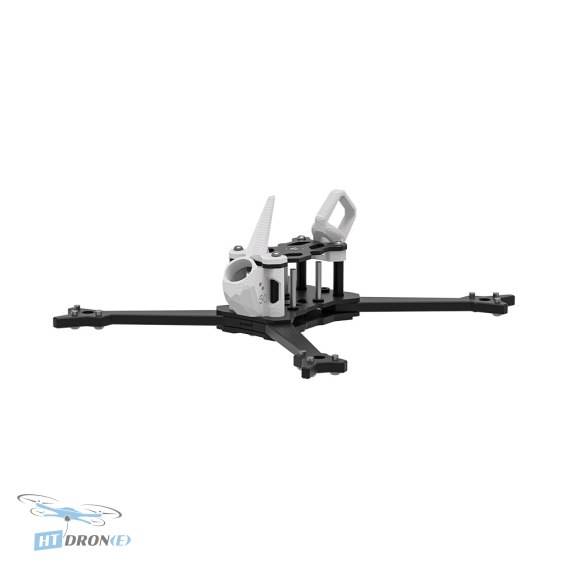

IFlight Mach R5 Sport Ultra FPV Racing Drone Frame Kit

Introduction

The iFlight Mach R5 Sport Ultra Frame Kit is meticulously engineered for competitive FPV drone racing enthusiasts who demand peak performance and adaptability. This kit is part of the Mach R5 Sport Race Frame series, offering different configurations to suit various racing styles. The Ultra version is optimized for agility and speed, making it a top choice for pilots seeking a competitive edge.

Key advantages

• Ultra-lightweight design: Weighing only 92g (Ultra version), it minimizes drag and maximizes agility.
• Robust construction: Made from high-quality carbon fiber with 5mm thick arms for superior durability and crash resistance.
• Optimized for racing: Aerodynamic profile and stable flight characteristics ensure top-tier performance at high speeds.
• Modular design: Simplifies assembly, maintenance, and component replacement, saving you time and effort.
• Ample component space: Generous room for VTX and flight controller stacks, supporting up to 23mm height.
• Versatile mounting: Supports standard FC and motor mounting patterns for broad compatibility.
• Customizable configurations: Available in Canopy, Lite, and Ultra versions to match specific racing needs.
• Enhanced stability: Designed for precise control and stability during aggressive maneuvers.

Technical specifications

• Model: Mach R5 Sport Ultra Version
• Wheelbase: 190 mm (Ultra version)
• Frame Dimensions: 169×161×35 mm (Ultra version)
• Top Plate Thickness: 2 mm (Ultra version)
• Arm Thickness: 5 mm (Ultra version)
• Bottom Plate Thickness: 2 mm
• Max Stack Height: 23 mm (Ultra version)
• Max VTX Height: 23 mm (Ultra version)
• FC Mounting: 20×20 mm / Φ3 mm
• Motor Mounting: 16×16 mm / Φ3 mm
• VTX Mounting: 20×20 mm / Φ3 mm
• Weight: 92 g (Ultra version)
• Recommended Motors: 22**, 23**, 24**, 25** series

Applications

This FPV frame is ideal for competitive drone racing, high-speed freestyle flying, and demanding FPV missions where agility, speed, and durability are paramount. It's built to perform on the race track and in challenging aerial environments.

Compatibility

The frame supports 20x20mm flight controller mounting and 16x16mm motor mounting patterns. It offers ample space for FPV stacks and VTX units, with a maximum height clearance of 23mm. Recommended motor sizes include the 22**, 23**, 24**, and 25** series.

FAQ

What is the main advantage of the iFlight Mach R5 Sport Ultra frame?

The main advantage is its ultra-lightweight design, weighing only 92g, combined with robust carbon fiber construction, making it ideal for high-speed FPV racing where agility and durability are crucial.

What are the key dimensions and mounting options for the iFlight Mach R5 Sport Ultra frame?

The Ultra version features a 190mm wheelbase and dimensions of 169x161x35mm. It supports 20x20mm FC mounting and 16x16mm motor mounting, with a maximum stack and VTX height of 23mm.

Who is the iFlight Mach R5 Sport Ultra frame designed for?

This frame is designed for demanding FPV drone racing enthusiasts and pilots who prioritize performance, speed, and a lightweight setup for competitive flying.

What recommended components are compatible with the iFlight Mach R5 Sport Ultra frame?

It is recommended to use motors from the 22**, 23**, 24**, or 25** series. Compatible flight controllers and ESCs include the BLITZ Mini F722 and BLITZ E55R 4-in-1 ESC.

Where can I buy the iFlight Mach R5 Sport Ultra frame with fast delivery?

You can buy the iFlight Mach R5 Sport Ultra frame at HTDRONE. We offer fast and reliable delivery options, including worldwide shipping via DHL.
