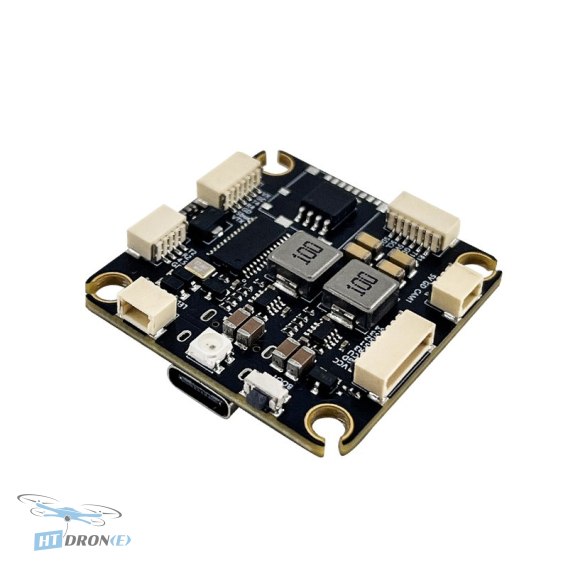

Pilotix F405 V3 ICM42688 Flight Controller for FPV Drones - High Performance

Introduction

The Pilotix F405 V3 Flight Controller is a robust control board designed for FPV drones and unmanned aerial vehicles (UAVs). It offers a comprehensive suite of features, including advanced sensor integration, extensive receiver protocol support, and flexible power outputs, making it an ideal choice for demanding aerial projects and high-performance FPV builds. This flight controller is engineered to provide pilots with enhanced stability, precise control, and reliable data logging.

Key Advantages

• High-performance STM32F405RGT6 ARM Cortex-M4 MCU for powerful processing.
• Precision flight stabilization with the ICM42688 6-axis high-performance gyroscope.
• Integrated barometer (SPL06) for accurate altitude data.
• On-Screen Display (OSD) support for real-time flight data overlay.
• 16MB onboard Black Box memory plus microSD support for extensive flight data logging.
• Versatile receiver protocol compatibility including ELRS, CRSF, SBUS, and more.
• Supports DJI/Vista Digital FPV systems for high-definition video transmission.
• Multiple power outputs (5V/2.5A, 9V/3A) for powering peripherals like FPV cameras and VTX.

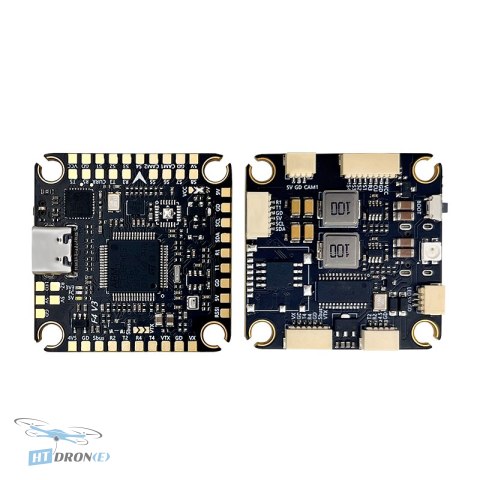

Technical Specifications

• Master Chip: STM32F405RGT6, 32-bit ARM Cortex-M4 microcontroller.
• Gyroscope: ICM42688, high-performance 6-axis.
• Barometer: SPL06.
• OSD: Supported.
• Black Box: 16 MB onboard memory, microSD support.
• Motor Output: 8 channels.
• Support Features: LED Light Strip, Buzzer.
• Receiver Protocols: ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX.

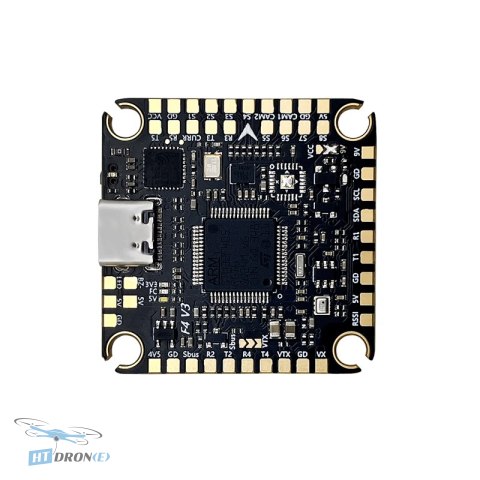

• Ports: 5-way universal serial port.
• Power Output: 5V/2.5A and 9V/3A.
• USB Connector: Type-C.
• DJI/Vista Digital Support: Yes.

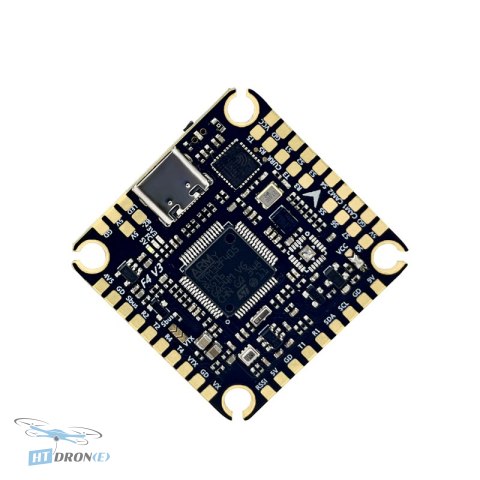

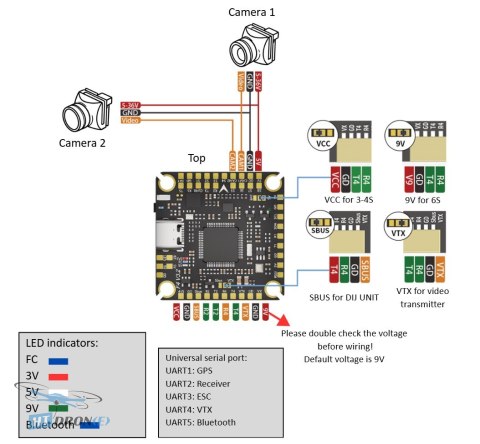

• Camera Switching & Jumper Options: SBUS/VTX, 9V/VCC.
• Weight: 9.6 grams.
• Dimensions: 36mm x 36mm (outer), 30.5mm x 30.5mm mounting holes.
• Firmware: F405V3/F405V3SD compatible.

Applications

This flight controller is suitable for a wide range of applications including FPV racing drones, freestyle FPV quadcopters, professional UAV systems for aerial photography and videography, inspection drones, and custom drone builds requiring precise flight control and extensive features.

Compatibility

The Pilotix F405 V3 is compatible with numerous receiver protocols such as ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, and DSMX. It features a 5-way universal serial port for flexible connections and supports DJI/Vista digital FPV systems. Power options include 5V/2.5A and 9V/3A outputs. The mounting pattern is 30.5mm x 30.5mm, fitting standard FPV drone frames. Jumper options allow for flexible configuration of camera switching and power delivery.

FAQ

What makes the Pilotix F405 V3 Flight Controller ideal for FPV racing?

The Pilotix F405 V3 features a high-performance ICM42688 gyroscope for precise flight stability, crucial for racing. Its STM32F405RGT6 MCU ensures fast processing, and it supports popular low-latency receiver protocols like ELRS and CRSF, vital for competitive FPV racing.

Does the Pilotix F405 V3 support digital FPV systems?

Yes, the Pilotix F405 V3 flight controller explicitly supports DJI and Vista digital FPV systems. This allows for seamless integration, enabling high-definition digital video transmission for an enhanced FPV experience.

What are the key specifications of the Pilotix F405 V3 regarding data logging?

This flight controller comes with 16MB of onboard Black Box memory for flight data logging. It also supports microSD cards, allowing for extensive logging capabilities. This is essential for analyzing flight performance and diagnosing issues after flights.

Where can I buy the Pilotix F405 V3 Flight Controller with reliable delivery?

You can buy the Pilotix F405 V3 Flight Controller at HTDRONE. We are based in Poland and offer worldwide shipping via DHL for fast and reliable international delivery. Check our store for the best deals on FPV parts.
