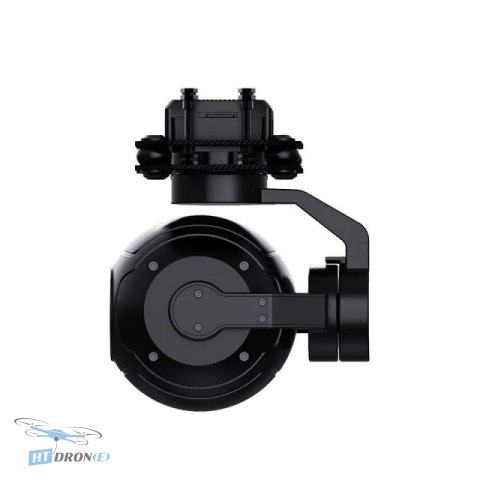

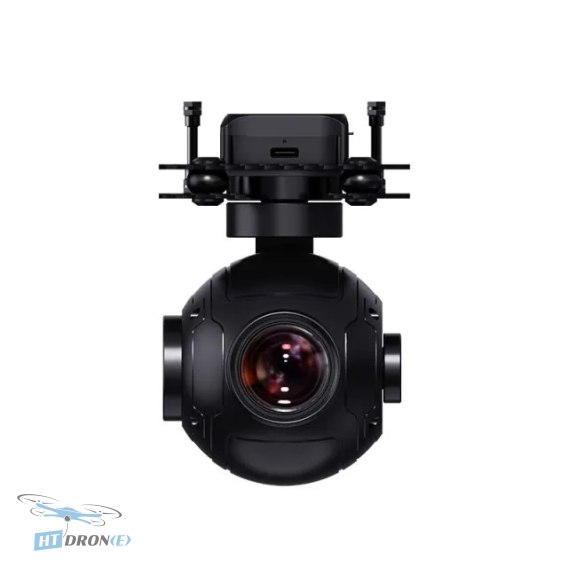

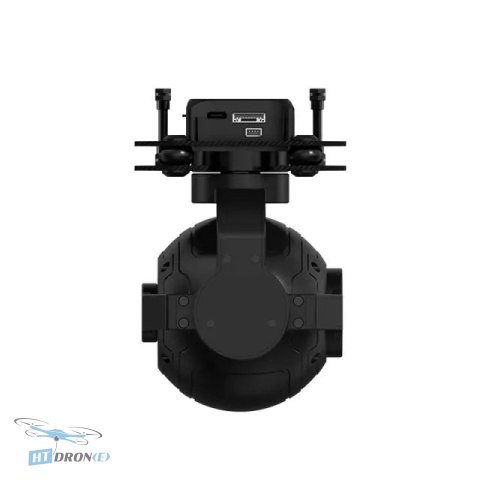

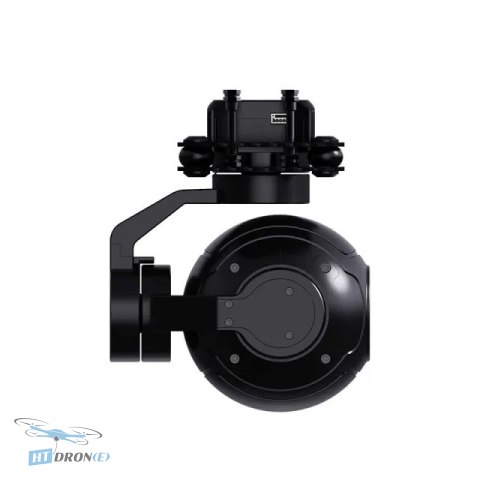

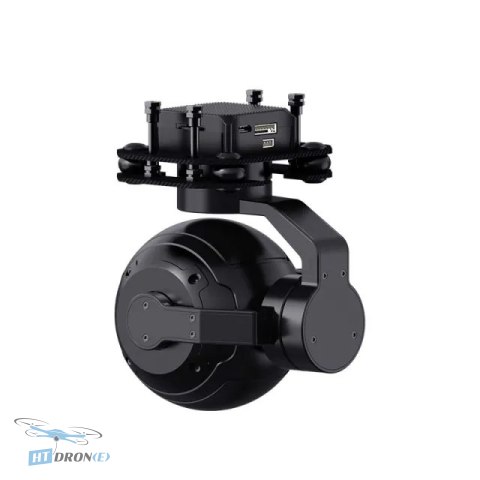

SIYI ZR10 4MP 10X Optical Zoom FPV HD Gimbal Camera

Introduction

The SIYI ZR10 is a high-performance FPV HD gimbal camera designed for demanding aerial applications. Equipped with a 1/2.7-inch 4MP CMOS sensor, it delivers exceptional low-light performance and captures stunning 2K video and high-resolution photos. Its advanced stabilization and zoom capabilities make it perfect for professional drone operators and enthusiasts seeking superior image quality and versatility.

Key advantages

• Capture stunning detail with 4MP resolution and 2K video recording.
• Achieve incredible clarity from a distance with 10x optical zoom and 3x digital zoom.
• Experience superior low-light performance with Starlight Night Vision technology.
• Benefit from smooth, stable footage thanks to the integrated 3-axis gimbal with high-precision FOC control.
• Enjoy flexibility with multiple control signal inputs (S.Bus, PPM, UART, UDP) and Ethernet video output.
• Built for durability with a shockproof, water, and dust-resistant IP4X casing.
• Wide operating voltage range (11-25.2V) and low power consumption (3W).
• Easy remote control via wireless network connection.

Technical specifications

• Zoom: 10x Optical Zoom / 3x Digital Zoom (30x Hybrid Zoom)
• Resolution: 4 Megapixels
• Memory Support: TF card / 2K video recording / 2K photos
• Gimbal: 3-axis
• Control Precision: High-accuracy FOC
• Dynamic Range: HDR
• Night Vision: Starlight Camera
• Aperture: F1.8
• Video Output Port: Ethernet
• Control Signal Input Port: S.Bus / PPM / UART / UDP
• Working Voltage: 11 to 25.2 V
• Power Consumption: 3W
• Operating Temperature: -10 to 50°C
• Waterproof Rating: IP4X
• Dimensions: 121x101x78 mm
• Weight: 381 g
• Lens: 10x Optical Zoom
• Focal Length: 5.15±5% to 47.38±5% mm
• Minimum Focusing Distance: 200 mm
• Image Sensor: 1/2.7 inch, 4MP effective resolution
• Aperture Range: F1.8 to F2.5
• Field of View: Diagonal 79.5°, Horizontal 71.5°
• TF Recording Resolution: 2K (2560x1440) at 30 fps
• Video Bitrate: 12 Mbps
• File System Format: FAT32
• Image Format: JPEG
• Video Format: MP4 (recorded in H.265, automatically converted to MP4 upon restart)
• Supported MicroSD Cards: MicroSD Class10, up to 128 GB
• Photo Taking Mode: Single shot
• Metering Mode: Evaluative metering

Applications

The SIYI ZR10 is ideal for a wide range of applications including professional FPV, UAV surveillance, security operations, wildlife observation, infrastructure inspection, and cinematic aerial videography. Its powerful zoom and low-light capabilities make it suitable for missions requiring detailed reconnaissance and long-range observation.

Compatibility

This camera is designed for seamless integration with various drone systems. It supports multiple control signal inputs including S.Bus, PPM, UART, and UDP. The Ethernet video output allows for easy integration into networked systems. It operates on a wide voltage range from 11 to 25.2V, making it compatible with most professional drone power setups.

FAQ

What makes the SIYI ZR10 suitable for low-light conditions?

The SIYI ZR10 features a Starlight camera sensor and a wide F1.8 aperture, allowing it to capture clear and detailed footage even in very low light environments. This makes it ideal for nighttime surveillance or operations during dawn and dusk.

What zoom capabilities does the SIYI ZR10 offer?

This advanced FPV camera boasts a 10x optical zoom lens, providing crisp magnification without loss of quality. It also includes a 3x digital zoom, enabling a hybrid zoom capability of up to 30x for observing distant subjects.

How can I control the SIYI ZR10 camera on my drone?

The SIYI ZR10 supports multiple control signal inputs, including S.Bus, PPM, UART, and UDP, ensuring broad compatibility with various flight controllers and remote control systems. Wireless remote control via a network connection is also supported.

What is the video output and recording capability of the SIYI ZR10?

The camera offers an Ethernet video output for real-time streaming and supports recording 2K (2560x1440) video at 30 fps directly to a MicroSD card (up to 128GB, Class10). Video is recorded in H.265 and converted to MP4.

Where can I buy the SIYI ZR10 FPV HD camera with fast delivery?

You can order the SIYI ZR10 FPV HD camera at HTDRONE. We offer fast and reliable delivery options, including worldwide shipping via DHL from our base in Poland.
