SKYZONE CRSF Repeater Signal Extension Module for FPV Drones

Introduction

The SKYZONE CRSF Repeater is an advanced signal extension module designed for FPV and UAV drone enthusiasts. It enhances the reliability and range of your control link by intelligently boosting and repeating the signal. This device is perfect for pilots who experience signal degradation or interference, ensuring a stable connection for critical maneuvers and long-range flights. Easily integrate it into your existing setup for a superior flying experience.

Key Advantages

• Automatic protocol detection (SBUS or CRSF) for seamless integration.
• Flexible receiver connection: External Dupont 2.54mm connector or internal soldering option.
• Wide input voltage support: Compatible with 2-6S Lipo batteries.
• Supports various TX modules: Crossfire TX, ELRS TX, and standard CRSF TX.
• Extends telemetry range: SmartPort/CRSF RX output for enhanced data feedback.
• Firmware updatable for future features and improved performance.
• Compact design for easy mounting on various drone frames.
• Enhances control link stability for long-range FPV flights and complex aerial missions.

Technical Specifications

• Type: Repeater
• Brand: Skyzone
• Input Voltage: 2-6S Lipo
• Signal Input: SBUS/CRSF TX
• TX Module Support: Crossfire TX module, ELRS TX module
• Telemetry Output: SmartPort/CRSF RX
• Telemetry Features: Supports INAV/Ardupilot Yappu Script (Radio); Firmware updateable for more functions.

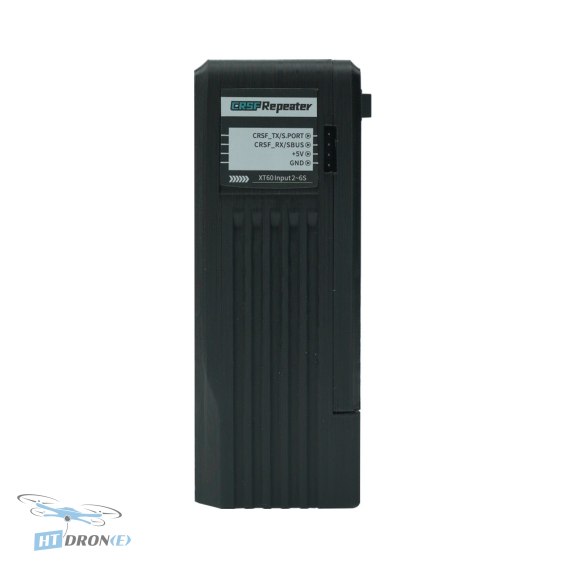

• Connectivity: External Dupont 2.54mm connector or internal soldering.
• Simultaneous Use: External and internal ports cannot be used at the same time.

Applications

This CRSF Repeater is essential for a wide range of applications including FPV racing, freestyle flying, long-range exploration, aerial photography, professional UAV operations, and drone inspection missions. It ensures a robust control link under all conditions.

Compatibility

The SKYZONE CRSF Repeater is compatible with SBUS and CRSF protocols, supporting Crossfire TX and ELRS TX modules. It operates with an input voltage range of 2-6S Lipo batteries. The telemetry output is compatible with SmartPort/CRSF RX, and currently supports INAV/Ardupilot Yappu Script on the radio, with future updates planned for expanded functionality.

FAQ

What is the SKYZONE CRSF Repeater and what does it do?

The SKYZONE CRSF Repeater is a signal extension module designed to enhance the reliability of your FPV drone's control link. It automatically detects SBUS or CRSF input and boosts the signal, ensuring a more stable connection for better control and telemetry.

How do I connect a receiver to the SKYZONE CRSF Repeater?

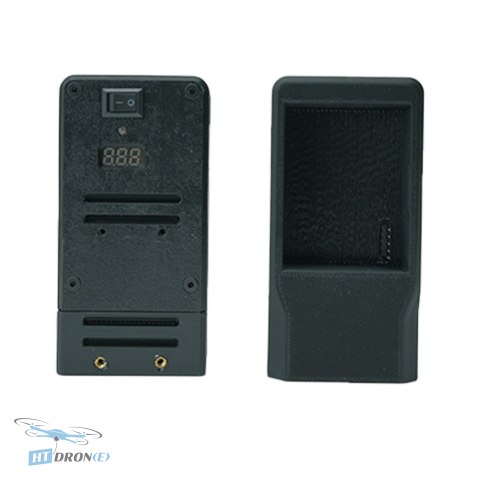

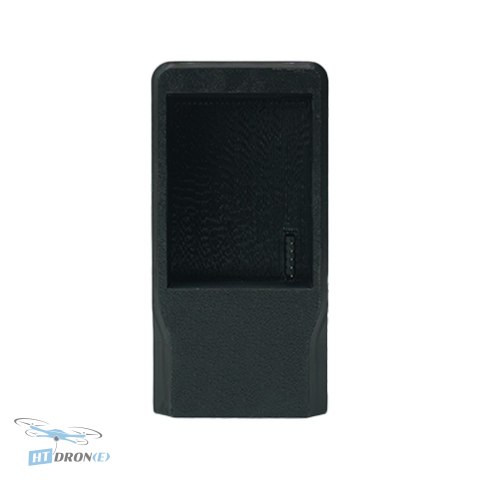

You have two connection options: an external Dupont 2.54mm connector for easy plug-and-play, or you can solder the receiver directly inside the casing for a more permanent installation. Please note that the external and internal ports cannot be used simultaneously.

What TX modules are compatible with the SKYZONE CRSF Repeater?

This repeater supports popular TX modules including the Crossfire TX module and the ELRS TX module, alongside standard CRSF TX signals. It also offers SmartPort/CRSF RX telemetry output.

What is the input voltage range for the SKYZONE CRSF Repeater?

The SKYZONE CRSF Repeater supports a wide input voltage range, making it compatible with 2S to 6S Lipo batteries, offering flexibility for various FPV drone setups.

Where can I buy the SKYZONE CRSF Repeater and what are the shipping options?

You can buy the SKYZONE CRSF Repeater at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best price and order yours today!
