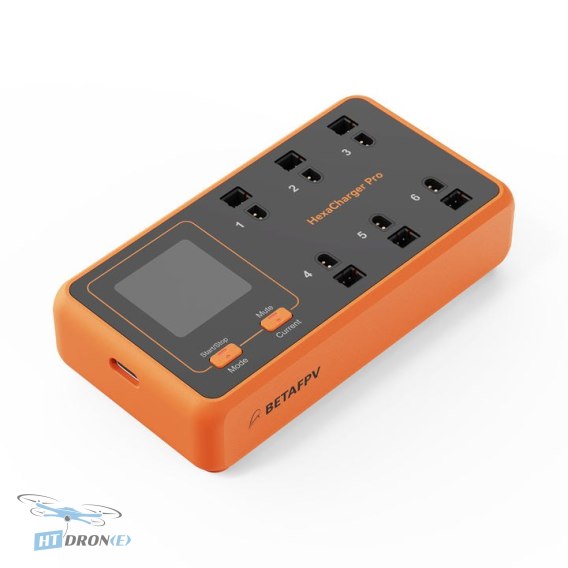

BETAFPV HexaCharger 1S Pro LiPo/LiHV Battery Charger for FPV Whoop Drones

Introduction

The BETAFPV HexaCharger 1S Pro is a high-performance, compact charging station engineered for dedicated FPV whoop pilots. It efficiently charges up to six 1S batteries concurrently, leveraging high PD output, precise voltage control, and real-time monitoring. Designed for speed, safety, and portability, this charger is the ultimate solution for both home and field charging needs, ensuring minimal downtime between flights.

Key advantages

• Compact and lightweight design for superior portability.
• Comprehensive battery management with charge, storage, and adjustment modes.
• Intuitive operation via two buttons and a clear color display.
• High-power PD charging for rapid turnaround times between flights.
• Wide compatibility with popular 1S battery connectors.
• Intelligent cooling system for stable, high-power performance.
• Robust physical construction for secure battery connections.

Technical specifications

• Input: 5V 3A max ~ 20V 5A max
• Charging Current: 3A max (all ports in use)
• Charging Power: 78W max
• Supported Battery Types: LiPo/LiHV
• Output Voltage: 4.2V/4.35V
• Storage Voltage: 3.85V
• Discharge Current: 6 x 400mA
• Voltage Accuracy: ±0.03V
• Input Port: Type-C
• Charging Protocol: PD 3.0
• Output Connectors: BT2.0/PH2.0

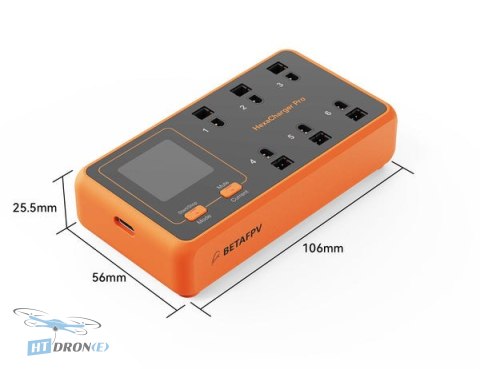

• Dimensions: 106 x 56 x 25.5 mm
• Battery: LAVA II 1S (Note: This seems to be a specific battery model mentioned, not a general spec)
• Operating Temperature: 0~40℃

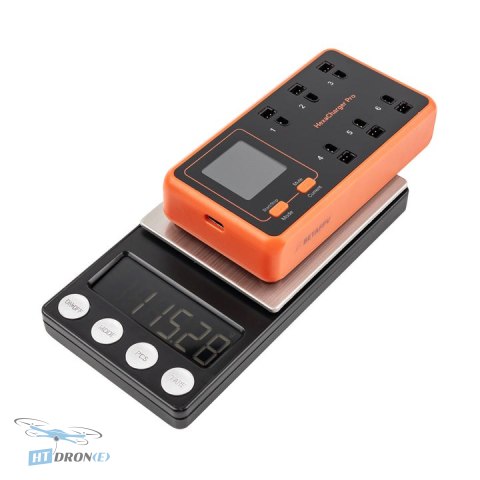

• Weight: 115 g
• Warning: Use a PD 3.0 adapter with 100W or higher output.

Applications

Ideal for FPV racing, freestyle, drone inspections, and general UAV operations where multiple 1S batteries need efficient and rapid charging. Perfect for pilots who demand quick turnaround times and reliable power management for their small FPV drones and whoops.

Compatibility

Compatible with popular 1S LiPo/LiHV batteries featuring BT2.0 and PH2.0 connectors. Requires a PD 3.0 power adapter (100W or higher recommended) via its Type-C input port.

FAQ

What types of batteries can the BETAFPV HexaCharger 1S Pro charge?

The BETAFPV HexaCharger 1S Pro is designed to charge both LiPo and LiHV 1S batteries. It supports popular connectors like BT2.0 and PH2.0, making it versatile for many FPV whoop setups.

What is the maximum charging power and speed of this charger?

This charger offers a maximum charging power of 78W, with a maximum charging current of 3A per port when all ports are in use. It utilizes PD 3.0 protocol for high-power, fast charging, significantly reducing downtime between flights.

Is the BETAFPV HexaCharger 1S Pro portable for field use?

Yes, the HexaCharger 1S Pro features a compact and lightweight design, weighing only 115g, making it highly portable. It's ideal for charging your FPV batteries at the field or during travel.

What power adapter is recommended for the BETAFPV HexaCharger 1S Pro?

For optimal performance, it is crucial to use a PD 3.0 power adapter with an output of 100W or higher. The charger uses a Type-C input port for power delivery.

Where can I buy the BETAFPV HexaCharger 1S Pro with reliable delivery?

You can order the BETAFPV HexaCharger 1S Pro directly from HTDRONE. We offer fast and reliable international shipping via DHL to ensure you receive your order promptly.
