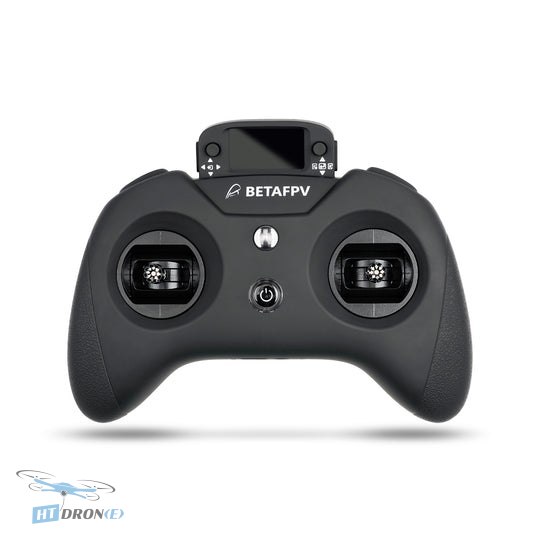

BETAFPV LiteRadio 3 Pro ELRS 2.4G Hall Gimbal Radio Transmitter

Introduction

The BETAFPV LiteRadio 3 Pro is an advanced open-source radio transmitter designed for FPV pilots seeking precision and flexibility. Running on the popular EdgeTX operating system, it offers a customizable and intuitive control experience. Its robust construction and advanced features make it an excellent choice for both beginners and experienced pilots looking for a high-performance controller.

Key advantages

• Precision Hall gimbal with four bearings, adjustable spring tension, and ergonomic stick ends for superior feel.
• Integrated 2000mAh 1S battery offers up to 15 hours of operation, ensuring long flight sessions.
• Internal ELRS TX module with up to 250mW output power for extended control range.
• Supports external BETAFPV ELRS Nano TX modules and other brands' nano TX modules for multi-protocol flexibility.
• Equipped with a 1.3-inch OLED screen for immediate visual feedback and control interface.
• EdgeTX compatibility provides extensive customization options for flight control.
• Versatile USB Type-C port for simulator use, charging, firmware updates, and ELRS 2.4G passthrough.
• Supports multiple RF protocol options including ExpressLRS 2.4G and CC2500 for compatibility with various receivers.

Technical specifications

• Item: LiteRadio 3 Pro Radio Transmitter (ELRS 2.4G Mode 2)
• Channel: 8 Channels
• Gimbal: Hall Sensor
• Frequency Range: 2.4G
• RF System: SX1280
• Antenna: Internal Antenna
• RF Output Power: 50mW, 100mW, 250mW
• Display: 1.3-inch OLED Display
• Protocol: ExpressLRS 2.4G
• Battery: Built-in 2000mAh 1S Battery
• Operating System: EdgeTX
• Port: USB Type-C Port / 3.5mm Audio Port
• USB Support: Most Simulator Practice / USB Charging / Firmware Update / Passthrough (ELRS 2.4G)
• Recommended External TX Module: ELRS Nano TX Module
• Recommended Accessories: Nano Gimbal for LiteRadio 3 Pro, Storage Case, Transmitter Neck Strap

Applications

This radio transmitter is ideal for a wide range of FPV applications, including drone racing, freestyle flying, cinematic FPV, and general UAV control. Its versatility and advanced features cater to pilots who demand precision and reliability in their equipment.

Compatibility

The LiteRadio 3 Pro is compatible with ExpressLRS 2.4G and utilizes the CC2500 chip for broader protocol support, including Corona, Hitec, Futaba S-FHSS, Frsky D, X, RadioLink, and Graupner HoTT. It supports external nano TX modules from BETAFPV and other manufacturers. The USB Type-C port allows for simulator use with most practice software, charging, firmware updates, and passthrough functionality for ELRS 2.4G.

FAQ

What is the BETAFPV LiteRadio 3 Pro?

The BETAFPV LiteRadio 3 Pro is an open-source 2.4GHz radio transmitter that supports the EdgeTX operating system. It features high-precision Hall gimbals, an OLED display, and a 2000mAh battery for extended use, making it suitable for FPV pilots.

What are the key features of the LiteRadio 3 Pro?

Key features include Hall sensor gimbals with adjustable tension, a 1.3-inch OLED screen, built-in 2000mAh 1S battery providing up to 15 hours of flight time, and an internal ELRS TX module with up to 250mW output power. It also supports external nano TX modules.

What protocols does the BETAFPV LiteRadio 3 Pro support?

The LiteRadio 3 Pro supports ExpressLRS 2.4G protocol. Additionally, its CC2500 option provides compatibility with a wide range of protocols including Corona, Hitec, Futaba S-FHSS, Frsky D, X, RadioLink, and Graupner HoTT.

How long does the battery last on the LiteRadio 3 Pro?

The built-in 2000mAh 1S battery offers impressive endurance, providing up to 15 hours of operating time without an external module, ensuring pilots can enjoy extended sessions without frequent recharging.
