Holybro Pixhawk 6C Flight Controller with PM02-12S Power Module & M10 GPS - H7 MCU for UAVs

Introduction

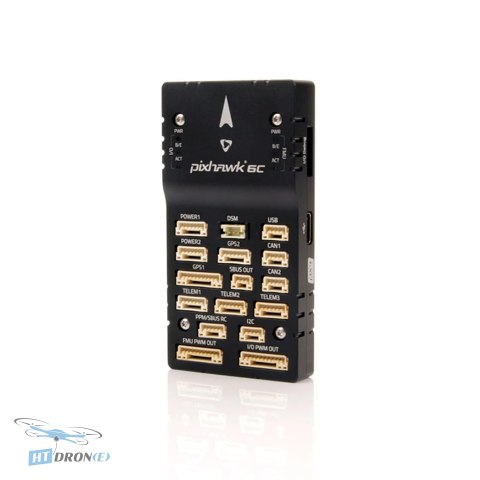

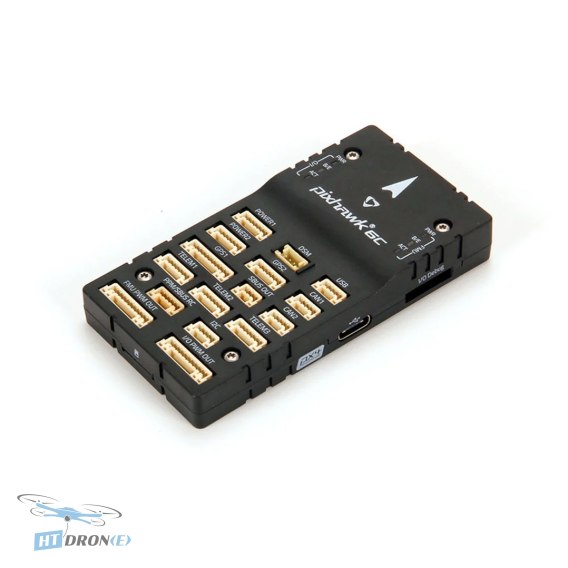

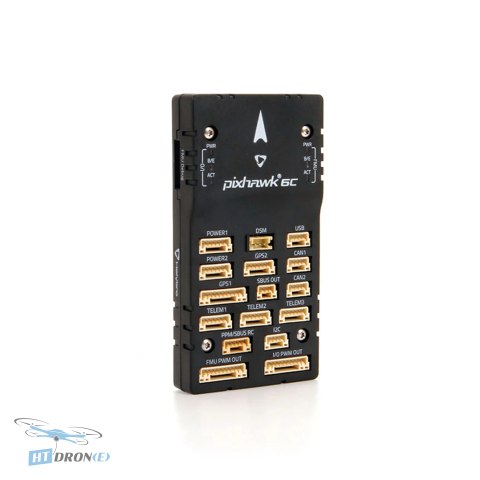

The Pixhawk® 6C represents the latest evolution in the renowned Pixhawk® flight controller family, built upon the open-source Pixhawk® FMUv6C standard. Pre-loaded with the PX4 Autopilot firmware, this controller is powered by STMicroelectronics' STM32H743 MCU and integrates high-quality sensors from Bosch® and InvenSense®. It offers unparalleled flexibility and reliability for controlling any autonomous vehicle, making it perfect for demanding academic research and commercial ventures. Get the best performance for your custom drone builds.

Key advantages

• High-performance STM32H743 H7 processor running up to 480 MHz for complex algorithms.
• Redundant Inertial Measurement Units (IMUs) from Bosch® and InvenSense® ensure flight stability and safety.
• Newly designed integrated vibration isolation system effectively filters high-frequency vibrations and reduces noise for accurate sensor readings.
• Low-profile, economical plastic casing design for efficient integration.
• Supports PX4 Autopilot firmware for advanced autonomous flight capabilities.
• Includes essential components: M10 GPS module and PM02-12S power module for a ready-to-go solution.
• Ideal for developers in corporate R&D, startups, academic environments, and commercial drone operations.

Technical specifications

• FMU Processor: STM32H743, 32-bit Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB SRAM
• IO Processor: STM32F103, 32-bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM
• IMU: ICM-42688-P (Accelerometer/Gyroscope), BMI055 (Accelerometer/Gyroscope)
• Magnetometer: IST8310
• Barometer: MS5611
• Rated Voltage: Max Input Voltage: 6V
• Power Input: USB Power Input: 4.75~5.25V
• Servo Rail Input: 0~36V
• Rated Voltages: Telem1 Max Output Current Limiter: 1.5A
• Other Ports Current Limiter: Total for all other ports: 1.5A
• Mechanical Dimensions: 84.8 x 44 x 12.4 mm
• Weight (plastic case): 34.6 g
• Included GPS Module: Holybro M10 GPS Module
• Included Power Module: Holybro PM02 V3-12S Power Module

Applications

This advanced flight controller is designed for a wide range of applications including autonomous UAVs, professional aerial photography, agricultural monitoring, industrial inspections, research projects, educational platforms, and high-performance FPV racing drones requiring precise control and navigation.

Compatibility

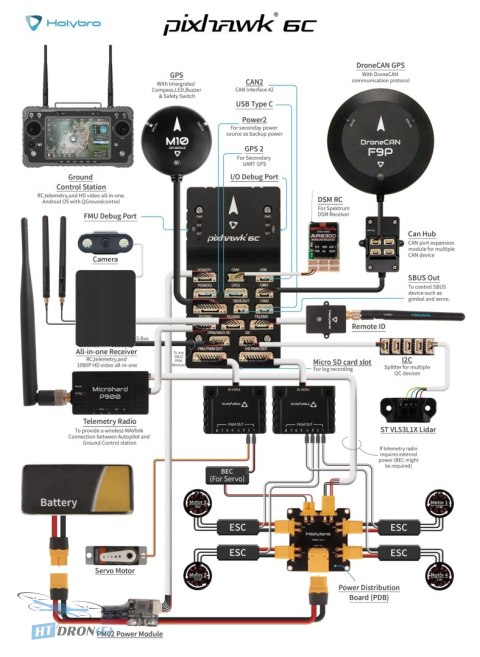

The Pixhawk® 6C is compatible with various peripherals through its standard Pixhawk® connectors. The included PM02-12S power module supports up to 12S LiPo batteries, ensuring compatibility with high-power systems. The M10 GPS module provides reliable navigation data. Standard servo rail input supports 0-36V. USB power input is 4.75-5.25V.

FAQ

What is the Holybro Pixhawk 6C flight controller best suited for?

The Pixhawk 6C is ideal for both academic research and commercial applications, including custom UAV builds, autonomous drone projects, and advanced FPV systems that require high processing power and reliable navigation.

What processors and sensors are included in the Pixhawk 6C?

It features a powerful STM32H743 32-bit Arm® Cortex®-M7 processor (up to 480 MHz) and includes redundant IMUs (ICM-42688-P, BMI055), a magnetometer (IST8310), and a barometer (MS5611) for precise flight control.

What is included in the Holybro Pixhawk 6C kit?

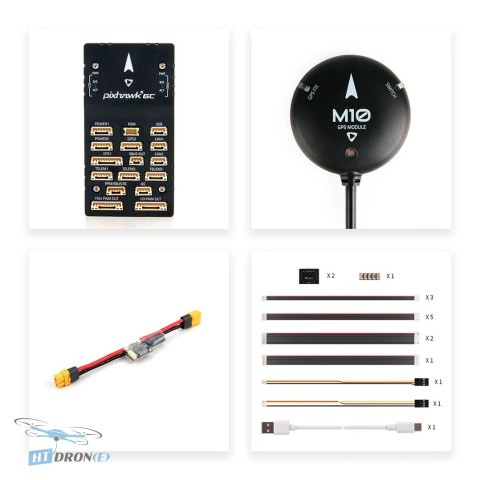

The kit includes the Pixhawk 6C flight controller with a plastic case, the Holybro M10 GPS Module, and the Holybro PM02 V3-12S Power Module, providing a comprehensive solution for your drone.

What are the power specifications for the Pixhawk 6C?

The flight controller has a maximum input voltage of 6V and a USB power input of 4.75-5.25V. The included PM02 power module supports up to 12S LiPo batteries, and the servo rail input ranges from 0-36V.
