AKK Ultra Long Range 5W VTX - 96CH 4.9G-6G FPV Drone Video Transmitter

Introduction

The AKK Ultra Long Range VTX is engineered for FPV pilots who demand the ultimate in video transmission performance. Designed to redefine the limits of drone exploration, this powerful transmitter delivers stable and clear video feeds over extraordinary distances, ensuring you never lose sight of your aircraft. It is the perfect upgrade for serious FPV enthusiasts and professional UAV operators seeking reliability and extended range.

Key advantages

• Ultra-long range video transmission capabilities.
• Supports 96 channels across the 4.9G-6G frequency band for maximum compatibility.
• Adjustable output power up to a massive 5000mW (5W) for extended flight operations.

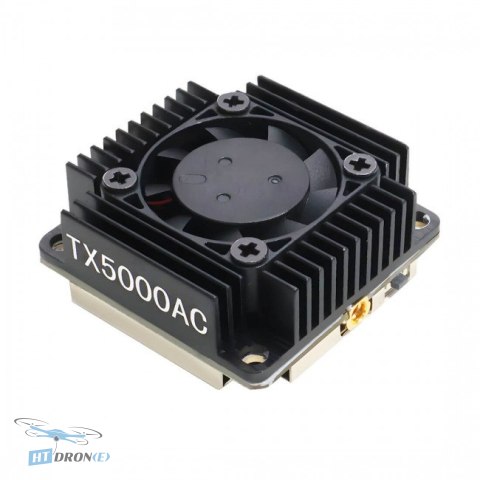

• Advanced cooling system ensures stable performance even under high load.
• Smart Audio 5000mW feature for easy control and configuration.
• Wide input voltage range compatible with 6S batteries.
• Compact and lightweight design suitable for various drone builds.

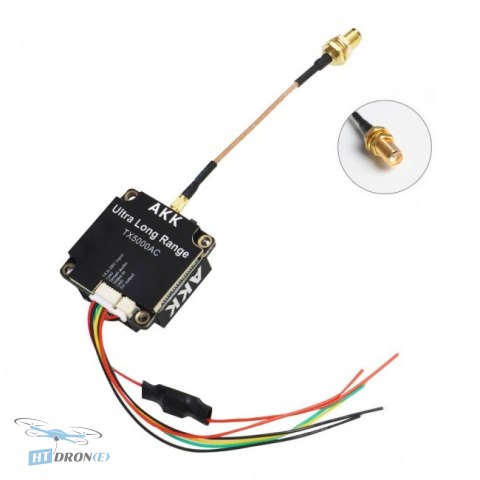

• Includes essential cables and pigtail for straightforward installation.

Technical specifications

• Input Voltage: 14.6V to 28V, recommended 6S battery
• Additional Features: Smart Audio 5000mW
• Power for Camera: 5V Camera @ below 500mA max.
• Output Power: 25mW / 1000mW / 3000mW / 5000mW
• Microphone: Not Supported
• Antenna Connector: MMCX
• Cable Connector: JST, 6pin

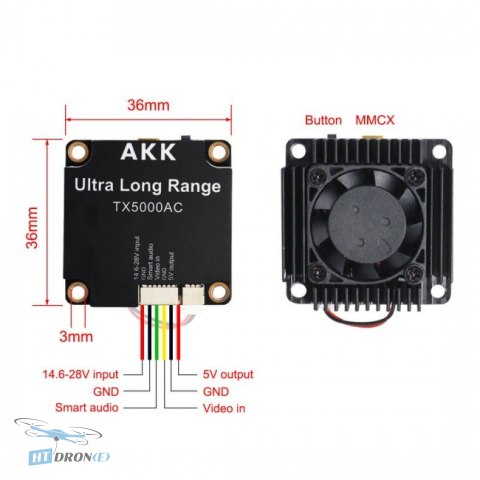

• Mounting Dimensions: 36x36mm, with 30.5 x 30.5mm mounting holes
• Weight: 25g (without antenna)

Applications

This VTX is ideal for long-range FPV flying, drone racing, aerial photography, cinematic FPV, and general UAV operations where extended video link range and reliability are crucial. It allows pilots to explore further and capture unique perspectives with confidence.

Compatibility

Features a 6-pin JST connector for power and control, and an MMCX connector for the antenna. Compatible with standard FPV flight controllers and 6S battery systems. The 36x36mm mounting pattern with 30.5x30.5mm holes ensures compatibility with most FPV drone frames.

FAQ

What makes the AKK Ultra Long Range VTX suitable for long-distance FPV flights?

The AKK Ultra Long Range VTX is designed for extreme distances, featuring 96 channels across the 4.9G-6G spectrum and adjustable power up to 5W. This ensures a stable and clear video signal, even far from the pilot.

What is the power output range of the AKK Ultra Long Range VTX?

This VTX offers multiple power output options, including 25mW, 1000mW, 3000mW, and a maximum of 5000mW (5W). This allows you to adjust the power based on your flight environment and range requirements.

What type of connectors does the AKK Ultra Long Range VTX use?

The AKK Ultra Long Range VTX features an MMCX connector for the antenna and a 6-pin JST connector for power and control. It also includes a cable and pigtail for easy installation.

Can this VTX power a camera?

Yes, the AKK Ultra Long Range VTX can power a 5V camera with a maximum current draw of 500mA. It also supports Smart Audio for convenient configuration.

Where can I buy the AKK Ultra Long Range 5W VTX with fast delivery?

You can order the AKK Ultra Long Range 5W VTX from HTDRONE, your specialized FPV parts store. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
