ATOMRC TX2501 2.5W 5.8GHz FPV Video Transmitter with Adjustable Power

Introduction

The ATOMRC TX2501 is a high-performance 5.8GHz video transmitter designed for FPV (First Person View) drone enthusiasts and professionals. It offers an exceptional 2.5W maximum output power and supports a wide frequency range, including the crucial X-band and low bands. This VTX is built for pilots who demand robust video links and crystal-clear FPV feeds, even in challenging environments. Its adjustable power output and versatile control options make it a top choice for custom FPV drone builds.

Key advantages

• Adjustable Power Output: Select between 800mW, 1600mW, and a maximum of 2500mW for optimal signal strength and range.
• Wide Band Support: Compatible with both X-band (5GHz) and standard low bands, ensuring broad compatibility with various FPV goggles and receivers.
• Wide Input Voltage: Operates reliably with an input voltage range of 7V to 26V, suitable for most FPV battery setups.

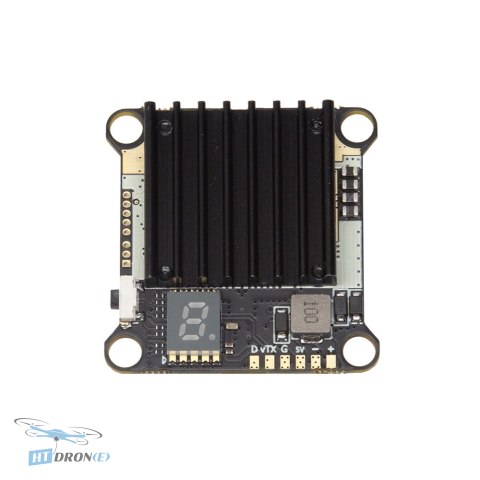

• LED Status Display: A built-in segment LED display shows BAND/CH and power status (button mode) or frequency and power (IRC mode) for quick checks.
• Flexible Control Options: Easily switch channels and power levels using either button control or IRC Tramp, with simple configuration for Betaflight.
• Robust Design: Built to withstand the rigors of FPV flying, ensuring reliable performance flight after flight.

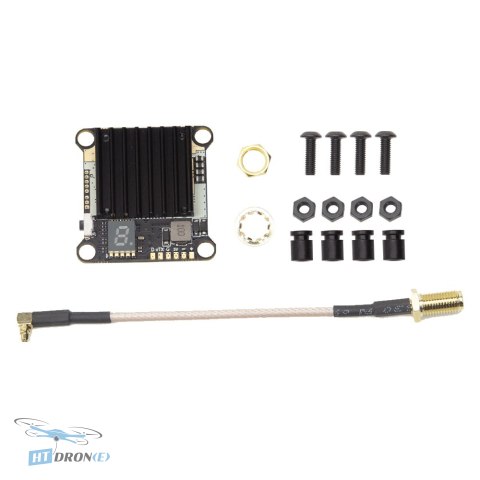

• Included Accessories: Comes with a mounting kit and an MMCX to SMA adapter for easy installation.

Technical specifications

• Model: ATOMRC TX2501 2.5W 5.8GHz
• Input Voltage: 7-26V
• Frequency: 5.8GHz
• Number of Channels: 48CH (including L and X bands)
• Output Power: 25mW (Note: Source lists 25/800/1600/2500mW, assuming 25mW is a typo or a specific mode not detailed)

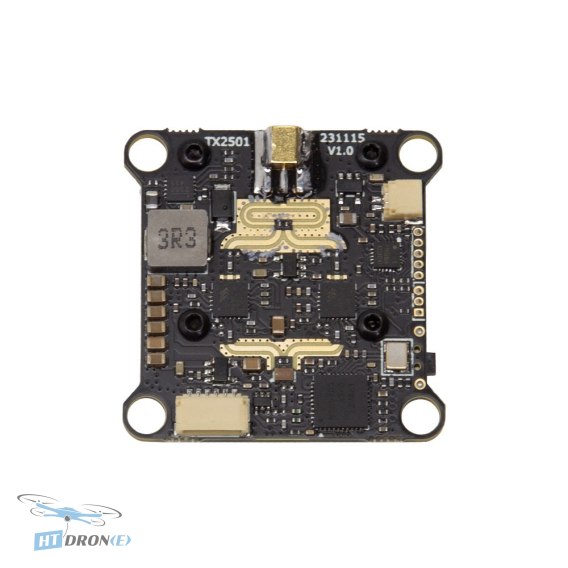

• Antenna Connector: MMCX
• Control: Button or IRC Tramp

Applications

This video transmitter is perfectly suited for a wide range of FPV applications, including: freestyle FPV flying, FPV racing, long-range FPV exploration, cinematic FPV drone builds, and general UAV video transmission where a powerful and reliable signal is essential.

Compatibility

The ATOMRC TX2501 is compatible with 48CH 5.8GHz FPV systems, including L and X bands. It supports both button control and IRC Tramp for configuration. When using button mode, ensure IRC protocol is disabled in Betaflight. The LED display dynamically shows status based on the selected control mode.

FAQ

What is the maximum power output of the ATOMRC TX2501 VTX?

The ATOMRC TX2501 VTX offers adjustable output power levels, including 800mW, 1600mW, and a maximum of 2500mW. This allows you to select the best power setting for your flight conditions and desired range.

Does the ATOMRC TX2501 support X-band frequencies?

Yes, the ATOMRC TX2501 explicitly supports the X-band (5GHz) as well as standard low bands, ensuring compatibility with a wide range of FPV receivers and goggles. It covers 48 channels in total.

What voltage range does the ATOMRC TX2501 VTX support?

This video transmitter is designed for flexibility, supporting a wide input voltage range from 7V to 26V. This makes it compatible with most common FPV battery configurations.

How can I control the ATOMRC TX2501 VTX?

You can control the ATOMRC TX2501 using either its physical buttons or via IRC Tramp protocol. The LED segment display provides clear visual feedback on the current BAND/CH and power status.

Where can I buy the ATOMRC TX2501 2.5W 5.8GHz VTX with fast delivery?

You can order the ATOMRC TX2501 2.5W 5.8GHz VTX directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.
