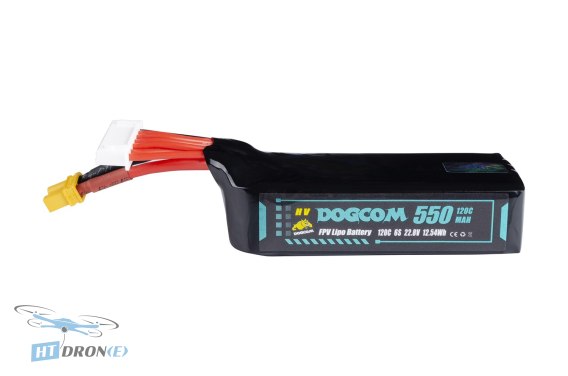

DOGCOM 550mAh 120C 6S HV LiPo Battery with XT30 Connector for FPV Racing Drones

Introduction

The DOGCOM 550mAh 22.8V 6S HV LiPo battery is designed to provide peak performance for competitive FPV racing drones. It offers an optimal balance of power, capacity, and weight, making it an essential component for pilots who demand the best in agility and endurance during intense races. This battery is built to withstand the rigors of high-speed flight and aggressive maneuvers, ensuring a reliable power source when you need it most.

Key advantages

• Exceptional Power Delivery: Features a high 120C continuous discharge rate and 240C burst rate for rapid acceleration and responsive control.
• High Voltage: 22.8V / 6S configuration provides superior power for demanding FPV applications.
• Optimized for FPV Racing: Specifically engineered for the unique demands of FPV drone racing, ensuring stability and performance.
• Reliable XT30 Connector: Equipped with a secure XT30 discharge connector for a stable power connection.
• Compact and Lightweight: Weighs approximately 92g, offering a great power-to-weight ratio for improved drone agility.
• Durable Construction: Built with advanced cell stacking technology for enhanced stability and longevity.
• Safety Standards: Complies with international safety standards for LiPo batteries.
• Extended Flight Time: Delivers consistent voltage and extended flight duration for more track time.

Technical specifications

• Brand: DOGCOM
• Capacity: 550mAh
• Voltage: 22.8V / 6S1P / 6 cells
• Continuous Discharge Rate: 120C
• Max Burst Discharge Rate: 240C
• Dimensions: 39x17.5x69mm (LxWxH)
• Weight: Approx. 92g
• Energy: 12.54Wh
• Charge Connector: JST-XHR
• Discharge Connector: XT30

Applications

This DOGCOM battery is ideal for high-performance FPV racing drones, freestyle FPV quadcopters, and other demanding UAV applications requiring significant power output and consistent discharge. It's suited for pilots who push their drones to the limit in competitive racing or aggressive freestyle flying.

Compatibility

Features an XT30 discharge connector and a JST-XHR balance connector, making it compatible with most FPV racing drones and chargers equipped with these standard connectors. Ensure your drone's power system and ESC can handle a 6S LiPo battery.

FAQ

What is the best application for the DOGCOM 550mAh 120C 6S HV LiPo battery?

This battery is best suited for high-performance FPV racing drones and aggressive freestyle quadcopters. Its high discharge rate and 6S voltage make it ideal for applications demanding rapid acceleration and sustained power during intense flight maneuvers.

What are the key technical specifications of the DOGCOM 550mAh 120C 6S HV LiPo battery?

The battery features a 550mAh capacity, 22.8V (6S) voltage, a 120C continuous discharge rate (240C burst), an XT30 discharge connector, and a JST-XHR balance connector. It weighs approximately 92g and has dimensions of 39x17.5x69mm.

Does HTDRONE offer fast delivery for this DOGCOM FPV battery?

Yes, HTDRONE is based in Poland and offers fast shipping within Poland. We also provide worldwide shipping via DHL for international customers, ensuring reliable and timely delivery of your FPV drone parts.

What type of connector does this DOGCOM battery use for discharge?

This DOGCOM 550mAh 120C 6S HV LiPo battery is equipped with a standard XT30 connector for discharge. This connector is commonly used on smaller to mid-size FPV racing drones for its balance of current handling and size.

Where can I buy the DOGCOM 550mAh 120C 6S HV LiPo battery with XT30?

You can buy this high-performance DOGCOM LiPo battery directly from the HTDRONE store. We specialize in FPV and UAV drone parts, offering competitive prices and reliable delivery options to your location.
