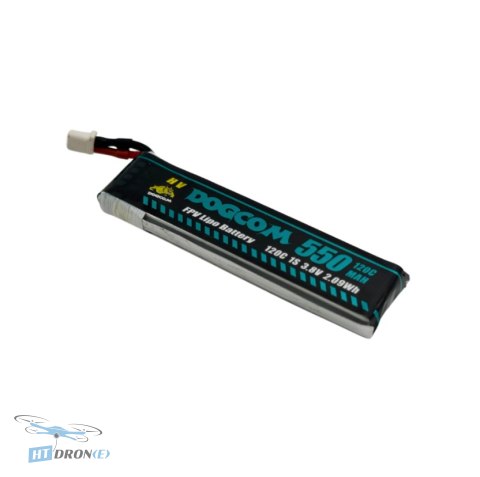

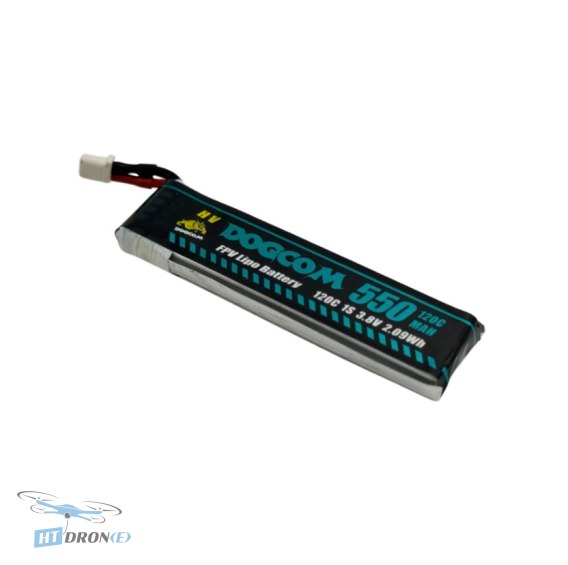

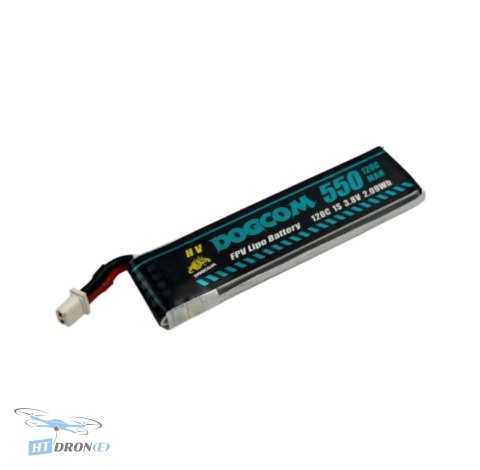

DOGCOM 550mAh 1S 3.8V 120C HV LiPo Battery BT2.0 for FPV Drones

Introduction

The DOGCOM 550mAh 1S 3.8V HV LiPo battery is engineered to provide exceptional power density for the most demanding FPV applications. Designed for micro FPV drones and racing quadcopters, this battery offers a compact yet potent energy solution, enabling agile flight and high-speed performance. Its advanced construction ensures reliability and consistent output, making it a top choice for pilots seeking the best performance from their small-scale aerial platforms.

Key Advantages

• High Discharge Rate: Boasts a 120C continuous discharge and up to 240C burst rate for immediate power delivery.
• Compact & Lightweight: Weighing approximately 15.5g, it's ideal for minimal weight configurations on micro drones.
• Advanced Cell Technology: Features stable cell stacking and low internal resistance for consistent performance and longevity.
• No Memory Effect: Ensures maximum efficiency and reliable power output over its lifespan.
• BT2.0 Connector: Equipped with the reliable BT2.0 connector for a secure and efficient power link.
• HV LiPo Technology: Operates at a higher voltage for increased power output compared to standard LiPo batteries.
• Durable Construction: Built to withstand the rigors of FPV flying, with vibration protection.
• Optimized for FPV: Specifically designed for the high demands of FPV racing and freestyle flying.

Technical Specifications

• Brand: DOGCOM
• Capacity: 550mAh
• Configuration: 3.8V / 1S1P / 1 cell
• Continuous Discharge Rate: 120C
• Max Burst Discharge Rate: 240C
• Dimensions (T×S×D): 7.5mm × 17.5mm × 65mm
• Weight: Approx. 15.5g
• Energy: 2.09Wh
• Connector Type: BT2.0
• Technology: High Voltage (HV) LiPo

Applications

This DOGCOM battery is perfectly suited for a wide range of FPV applications, including micro FPV racing drones, freestyle quadcopters, and small-scale UAV projects where high power-to-weight ratio and rapid energy delivery are crucial. It's an excellent choice for custom builds and high-performance small drones.

Compatibility

Features the popular BT2.0 connector, ensuring compatibility with many modern FPV flight controllers and chargers. Its 1S configuration makes it ideal for lightweight drones that utilize single-cell power systems.

FAQ

What is the main advantage of the DOGCOM 550mAh 1S HV LiPo battery?

The primary advantage is its high 120C continuous discharge rate, providing exceptional power for demanding FPV drones. This ensures quick response and high performance, especially for micro and racing quadcopters.

Is this DOGCOM battery suitable for beginners?

While powerful, its high discharge rate and 1S configuration are typically suited for experienced FPV pilots building or upgrading micro drones. Beginners might find it best for smaller, lighter builds where precise control is key.

What does HV mean in the battery specifications?

HV stands for High Voltage. This means the battery can be safely charged to a higher voltage (e.g., 4.35V per cell) compared to standard LiPo batteries, offering more power and potentially longer flight times for compatible devices.

How does the BT2.0 connector benefit my FPV drone?

The BT2.0 connector is designed for higher current applications and offers a more secure connection with lower resistance compared to older connectors like the original XT30. This ensures efficient power transfer and reliability during intense FPV flights.

Where can I buy the DOGCOM 550mAh 1S HV LiPo battery with fast delivery?

You can order the DOGCOM 550mAh 1S HV LiPo battery directly from HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your FPV parts quickly.
