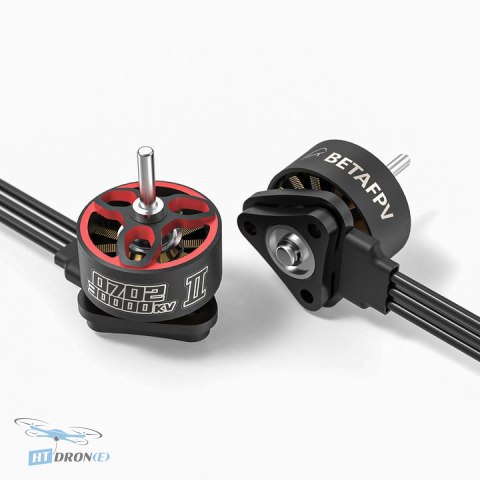

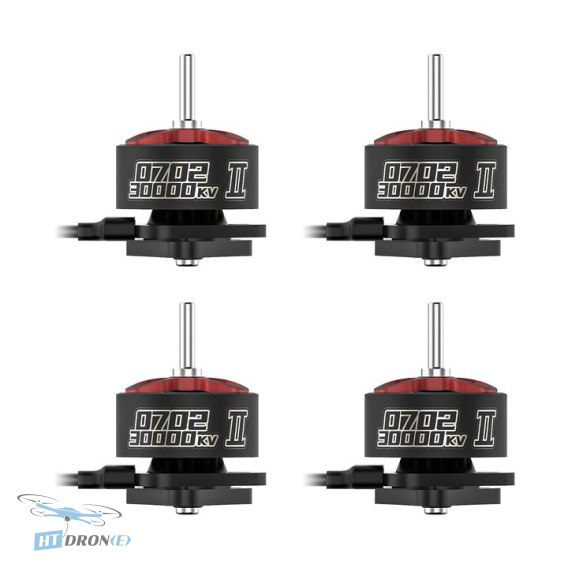

BETAFPV 0702 II 30000KV Brushless Motors (4PCS) for 65mm FPV Whoops

Introduction

Introducing the BETAFPV 0702 II 30000KV Brushless Motors, a new generation of high-performance power units engineered for serious FPV enthusiasts. These motors are specifically designed to deliver superior thrust and precision, making them an ideal choice for 65mm FPV whoop drones. They solve the problem of power degradation during intense flights by utilizing advanced magnetic technology, ensuring consistent performance when you need it most. Get ready to dominate the skies with unmatched speed and control.

Key Advantages

• Next-Generation Power: Features the 0702 II brushless motor design for enhanced performance.
• Superior Thrust: Advanced plate-shaped magnets provide up to 14.8% more thrust compared to previous models.
• Enhanced Durability: Minimizes magnetic degradation during demanding FPV flights.
• Ultralight Construction: Weighing between 1.45g and 1.55g, these motors keep your drone agile.
• Optimized for Agility: Perfect for pairing with 2-blade Gemfan 1210 or 3-blade 1208 propellers.
• High KV Rating: 30000KV delivers extreme rotational speed for rapid acceleration.
• Smooth Operation: Equipped with double ball bearings for longevity and smooth running.
• Versatile Compatibility: Designed for 1S input voltage, ideal for lightweight builds.

Technical Specifications

• Product: 0702 II Brushless Motors
• Motor KV: 30000KV (rpm/V)
• Bearing: Double Ball Bearings
• Weight: 1.55g (individual motor weight may vary slightly: 1.47g, 1.45g)
• Color: Black/Red
• Shaft Diameter: 1 mm
• Shaft Length: 4.2 mm
• Mounting Hole Spacing: 6.6 mm
• Motor Mounting Holes: M1.4
• Input Voltage: 1S
• Wire Length: 35mm (with connector included)
• Wire Gauge: 30AWG
• Included in Package: 4 x 0702 II Brushless Motors, 15 x M1.4x3 PEEK screws, 12 x M1.4x3 metal screws

Applications

These high-performance motors are ideal for competitive FPV racing, freestyle flying, and agile indoor/outdoor drone operations. They excel in lightweight 65mm whoop builds, providing the speed and responsiveness needed for advanced piloting.

Compatibility

Designed for 1S power systems. Recommended for use with Gemfan 1210 2-blade or 1208 3-blade propellers. Mounting holes are M1.4, suitable for specific micro drone frames.

FAQ

What is the main advantage of the BETAFPV 0702 II 30000KV motors?

The main advantage is their enhanced power and thrust, offering up to 14.8% more lift thanks to advanced plate-shaped magnets, while maintaining an ultralight weight for superior agility in FPV drones.

What size FPV drones are these BETAFPV motors best suited for?

These motors are ideally suited for 65mm FPV whoop drones, providing excellent performance for racing and freestyle applications.

What type of battery voltage do the BETAFPV 0702 II motors support?

The BETAFPV 0702 II motors are designed for 1S input voltage, making them perfect for ultra-lightweight FPV builds.

What propellers are recommended for the BETAFPV 0702 II 30000KV motors?

For optimal performance, these motors pair well with Gemfan 1210 2-blade propellers or Gemfan 1208 3-blade propellers.

Where can I buy BETAFPV 0702 II 30000KV motors with fast delivery?

You can buy the BETAFPV 0702 II 30000KV motors at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
