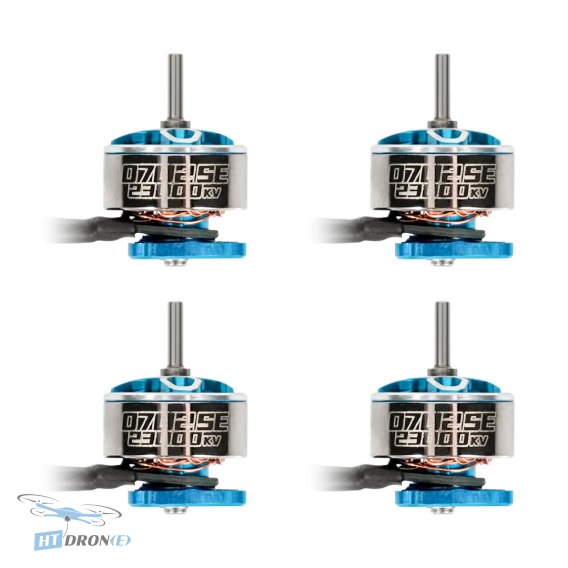

BETAFPV 0702SE 23000KV Brushless Motors (4PCS) for Lightweight 65mm FPV Whoop Drones

Introduction

Discover the BETAFPV 0702SE 23000KV brushless motors, specifically engineered for ultra-lightweight FPV drones, particularly 65mm whoop models. These motors are designed to offer exceptional agility and responsiveness by minimizing weight, especially away from the center of gravity. If you're looking to build or upgrade a nimble FPV drone, these motors provide a compelling solution for maximizing flight performance.

Key advantages

• Ultra-lightweight design at only 1.42g per motor, ideal for minimizing drone mass.
• Optimized for 65mm class FPV whoop drones, enhancing maneuverability.

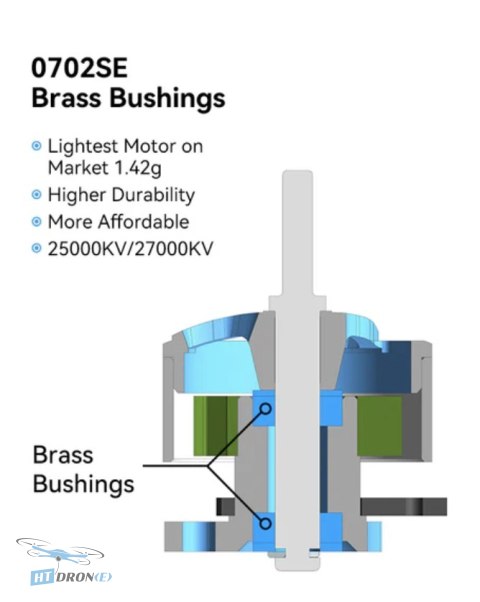

• Durable brass bushings offer increased longevity and a more affordable solution.
• PEEK screws provide excellent resistance to heat, friction, shock, and fatigue.
• Contribute to overall drone agility by reducing unsprung weight.
• Deliver solid power and quick response when paired with recommended propellers.
• Ice blue color adds a unique aesthetic to your FPV build.
• Designed for 1S input voltage, perfect for micro FPV setups.

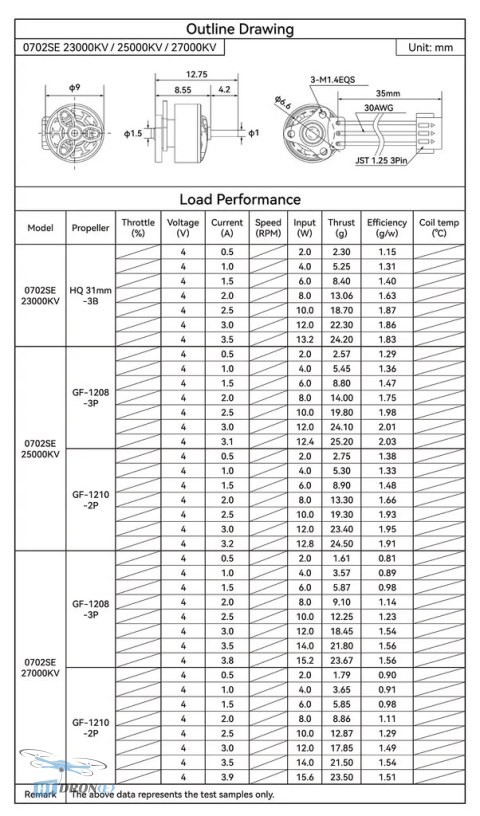

Technical specifications

• Item: 0702SE Brushless Motors
• Bearing: Brass Bushings
• KV Rating: 23000KV
• Weight: 1.42g ±0.03g
• Weight without connector: 1.35g
• Color: Ice Blue
• Shaft Diameter: 1mm
• Shaft Length: 4.2mm
• Motor Mounting Hole Spacing: 6.6mm
• Motor Mounting Screws: M1.4
• Input Voltage: 1S
• Cable Length: 35mm (with connector)
• Wire Gauge: 30AWG
• Dimensions: 12.75*φ9mm

Applications

These BETAFPV 0702SE motors are perfectly suited for building or upgrading lightweight FPV whoop drones, micro FPV racers, and indoor FPV exploration vehicles. Their low weight and high KV rating make them ideal for agile flight characteristics and quick acceleration, especially in 1S setups.

Compatibility

Propellers: Recommended for use with Gemfan 1210 2-blade or 1208 3-blade propellers.
Frame: Compatible with Meteor65 Frame and Meteor65 Pro Frame.
Flight Controller: Works well with 1S F4 5A AIO Brushless Flight Controller.
Battery: Recommended for 1S LiPo batteries, such as the BT2.0 300mAh 1S 30C.

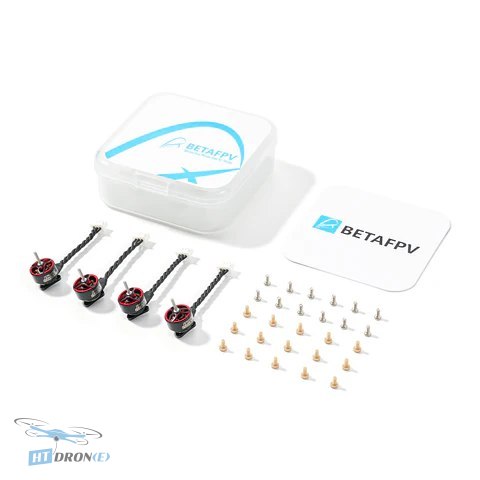

Screws: Includes M1.4*3 PEEK screws and M1.4*3 metal screws for mounting.

FAQ

What is the main advantage of the BETAFPV 0702SE 23000KV motors?

The primary advantage is their extremely lightweight design, weighing only 1.42g, which significantly enhances the agility and flight performance of lightweight FPV drones like 65mm whoops. They also feature durable brass bushings for longevity.

What type of FPV drones are these motors best suited for?

These motors are specifically designed for lightweight FPV drones, especially 65mm whoop class drones. Their low weight and high KV rating make them ideal for maximizing maneuverability and responsiveness in micro FPV builds.

What are the recommended propellers and frames for the BETAFPV 0702SE 23000KV motors?

For optimal performance, these motors are recommended with Gemfan 1210 2-blade or 1208 3-blade propellers. They are also compatible with Meteor65 and Meteor65 Pro frames, as well as 1S FPV flight controllers.

Where can I buy BETAFPV 0702SE 23000KV motors with reliable delivery?

You can buy the BETAFPV 0702SE 23000KV motors directly from HTDRONE. We offer fast and reliable international shipping via DHL, ensuring you receive your FPV parts quickly.

Are these motors suitable for beginners in FPV?

Yes, these motors are excellent for beginners building their first lightweight whoop drone or for experienced pilots looking to optimize for agility. Their ease of integration and focus on reducing weight make them a great choice for many FPV enthusiasts.
