BETAFPV Air Brushless (5-in-1) AIO Flight Controller for 1S Whoop Drones

Introduction

The BETAFPV Air Brushless (5-in-1) AIO Flight Controller is a groundbreaking component designed for the demanding FPV enthusiast. It's the first 1S flight controller to utilize the high-performance STM32G473CEU6 processor, offering a significant boost in computational speed and unparalleled responsiveness that outperforms older F411 controllers. This unit is engineered for ultralight 1S whoop drones, providing exceptional control and stability for an immersive flying experience.

Key Advantages

• Powerful Processing: Equipped with STM32G473CEU6 (168 MHz) for a 55% speed increase and ultra-responsive flight.
• Advanced Gyro: Features the leading ICM42688P gyroscope for precise motion tracking and stability.
• Integrated 5.8G VTX: Built-in video transmitter with adjustable power output from 25mW to 400mW for clear FPV feeds.
• 5-in-1 Functionality: Combines Flight Controller (FC), ESC, OSD, VTX, and Receiver (Serial ELRS 2.4G) into a single, lightweight unit (3.6g).
• Optimized for 1S Whoops: Designed specifically for ultralight 1S whoop drones, offering finger-level control.
• Onboard Blackbox: 16MB of Blackbox memory for flight data logging and analysis.
• Durable Construction: Robust design with voltage and current sensors for reliable operation.
• High-Quality ESC: Integrated 5A continuous ESC with support for D-shot300/600.

Technical Specifications

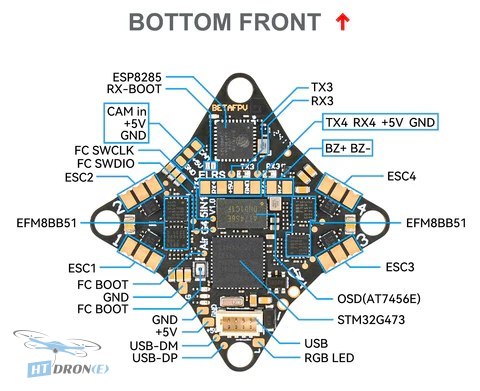

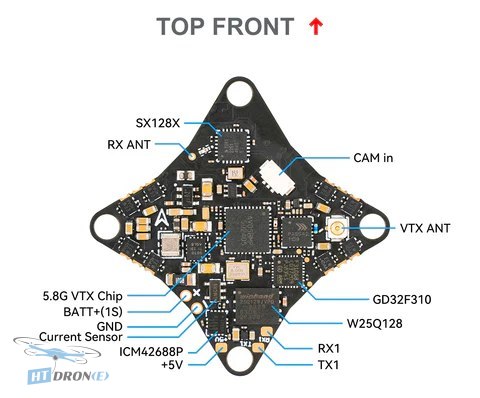

• Flight Controller (FC)

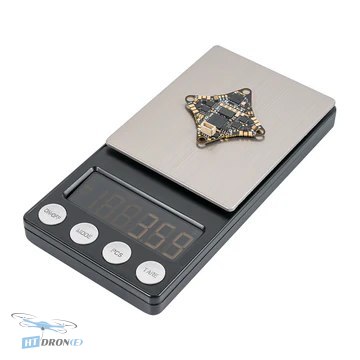

  • Weight: 3.6 g (5IN1 version)
  • Mounting Hole Size: 26 mm x 26 mm
  • CPU: STM32G473CEU6 (168 MHz)
  • Six-Axis Gyro: ICM42688P (SPI connection)
  • Blackbox Memory: 16 MB
  • Sensors: Voltage and Current
  • 5V BEC: 5V 3A
  • USB Port: SH1.0 4-Pin
  • Built-in ESC: 5A continuous
  • Receiver (RX): Serial ELRS 2.4G (V3.4.3) (for 5IN1 version only)
  • 5IN1 Version: FC + ESC + OSD + VTX + RX
• Electronic Speed Controller (ESC)
  • Input Voltage: 1S
  • FC Firmware: Betaflight_4.5.0_BETAFPVG473
  • ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
  • Supported Signals: D-shot300, D-shot600
• Video Transmitter (VTX)
  • Output Power: 25/100/200/400/PIT
  • Frequency: 5.8 GHz, 48 Channels (Raceband: 5658~5917 MHz)
  • Channel Selection: SmartAudio2.0
  • Modulation: FM
  • Frequency Control: PLL
  • Frequency Stability: ±100 kHz (typ.)
  • Frequency Precision: ±200 kHz (typ.)
  • Channel Carrier Error: ±1.5 dB
  • Antenna Port: 50 Ω
  • Operating Temperature: -10 ℃ to +80 ℃

Applications

This AIO FC is ideal for building and upgrading ultralight 1S FPV whoop drones. It's perfect for indoor flying, freestyle FPV, and micro drone racing where responsiveness, stability, and low weight are critical. Its integrated components simplify builds and reduce complexity.

Compatibility

Designed for 1S power systems. Features a Serial ELRS 2.4G receiver (V3.4.3) in the 5IN1 version. Supports D-shot300/600 ESC signals. Uses SmartAudio2.0 for VTX control. Mounting hole size is 26mm x 26mm.

FAQ

What is the BETAFPV Air Brushless (5-in-1) AIO Flight Controller and who is it for?

The BETAFPV Air Brushless (5-in-1) AIO Flight Controller is an integrated flight control solution designed for 1S ultralight FPV whoop drones. It combines FC, ESC, OSD, VTX, and an ELRS receiver, making it ideal for builders seeking a compact and high-performance core component.

What are the key performance advantages of this BETAFPV AIO FC?

This FC boasts a faster STM32G473CEU6 processor for enhanced responsiveness and an advanced ICM42688P gyro for superior stability. The integrated 5.8G VTX offers up to 400mW output power, further boosting performance for FPV flights.

What is the maximum continuous current rating for the integrated ESC?

The integrated ESC on the BETAFPV Air Brushless (5-in-1) AIO Flight Controller can handle a continuous current of 5A, making it suitable for small 1S brushless motors commonly used in whoop drones.

Does this AIO FC include a receiver, and what type is it?

Yes, the 5-in-1 version of the BETAFPV Air Brushless AIO FC includes an integrated Serial ELRS 2.4G receiver (V3.4.3). This provides a reliable and long-range connection for your drone.
