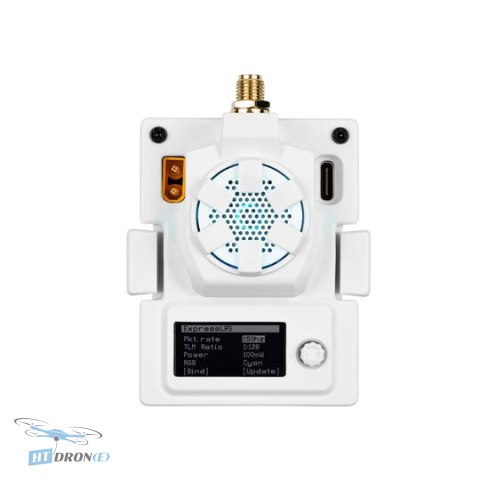

BETAFPV Micro TX Module ELRS 868/915MHz for FPV Drones

Introduction

The BETAFPV Micro RF TX Module is a cutting-edge, open-source RC link solution based on the ExpressLRS project. Designed for RC applications, this module offers enhanced performance and reliability. Its compact design and improved USB port housing make it compatible with standard Type-C cables, ensuring easy integration into your FPV setup. Experience superior control with this advanced TX module from BETAFPV, available at HTDRONE.

Key Advantages

• Based on the popular ExpressLRS open-source project for reliable RC control.
• Supports dual frequency bands: 915MHz (FCC) and 868MHz (EU).
• Adjustable RF output power (100mW, 250mW, 500mW) for optimal range and performance.
• High packet refresh rates (25Hz, 50Hz, 100Hz, 200Hz) for responsive control.

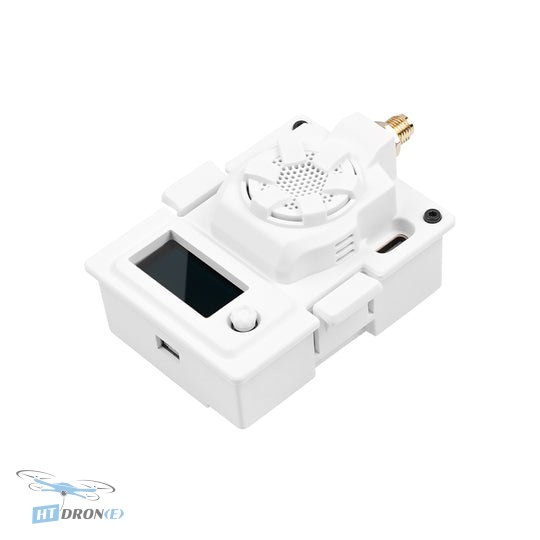

• Features a compact micro-sized form factor for easy integration.
• Improved USB Type-C port housing (6.5x13.5mm) for wide compatibility.

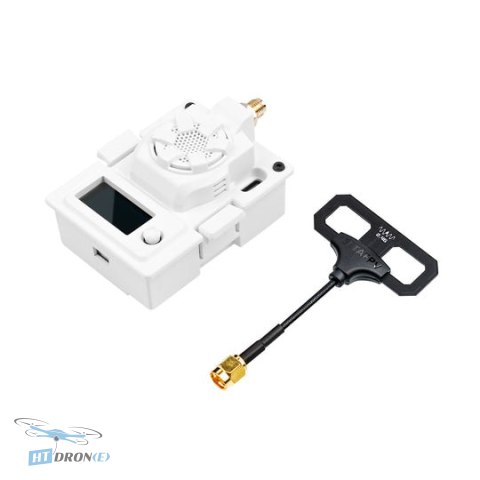

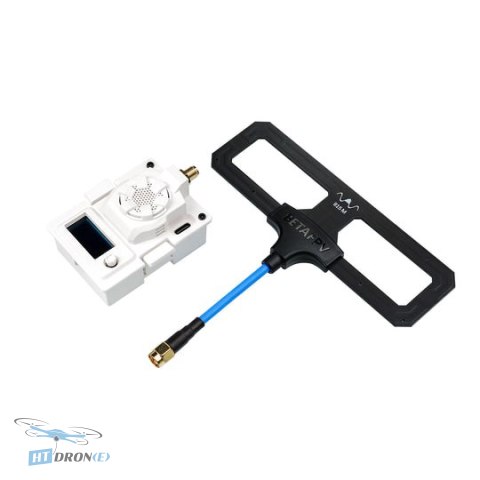

• Includes two antennas for flexible setup: one Moxon and one monopole.
• Ideal for FPV drone pilots seeking a high-performance, low-latency RC link.

Technical Specifications

• Item: ELRS Micro TX Module (915MHz)
• Input Voltage: 5V-12V
• XT30 Port Voltage: 5V-12V (2S battery recommended, 3S/12.6V or higher NOT supported)
• USB Port: Type-C
• Packet Refresh Rate: 25 Hz, 50 Hz, 100 Hz, 200 Hz
• RF Output Power: 100mW, 250mW, 500mW
• Frequency Bands: 915MHz FCC / 868MHz EU
• Heatsink: Not included
• Backpack Function: Currently not supported

Applications

This BETAFPV Micro TX Module is perfectly suited for FPV racing drones, freestyle quadcopters, and other RC aircraft where a stable, low-latency, and high-performance radio control link is crucial. It's an excellent choice for pilots looking to upgrade their existing radio system or build a new FPV drone with the latest ExpressLRS technology.

Compatibility

The module is designed to work with most RC transmitters that support external TX modules. It features a standard Type-C USB port for firmware updates and configuration, and an XT30 connector for power input, supporting voltages from 5V to 12V (recommended 2S battery). Ensure your radio transmitter has the necessary module bay and firmware support for ExpressLRS.

FAQ

What is the BETAFPV Micro TX Module ELRS?

The BETAFPV Micro TX Module ELRS is a compact radio transmitter module based on the ExpressLRS open-source project. It provides a reliable and high-performance RC link for FPV drones and other RC applications, operating on 868MHz or 915MHz frequencies.

What are the key technical specifications of the BETAFPV Micro TX Module?

This module supports input voltages from 5V-12V, features a Type-C USB port, and offers adjustable RF output power of 100mW, 250mW, or 500mW. It supports packet refresh rates of 25Hz, 50Hz, 100Hz, and 200Hz, and operates on 915MHz FCC or 868MHz EU frequency bands.

What is the recommended power source for the BETAFPV Micro TX Module?

The module can be powered via its XT30 port with an input voltage of 5V-12V. A 2S (8.4V) battery is recommended for optimal performance. It is important NOT to use batteries rated 3S (12.6V) or higher.

Where can I buy the BETAFPV Micro TX Module ELRS 868/915MHz?

You can buy the BETAFPV Micro TX Module ELRS 868/915MHz at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL. Check our store for the best deals on FPV drone parts.

What is the frequency range of the BETAFPV Micro TX Module?

The BETAFPV Micro TX Module operates on two frequency bands: 915MHz for FCC regions and 868MHz for EU regions, providing flexibility for users in different geographical locations.
