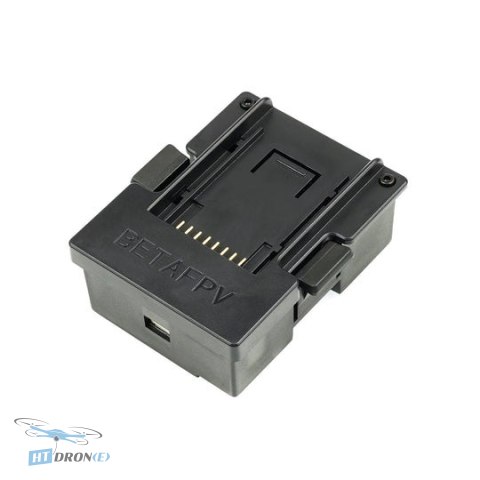

BETAFPV Micro-Nano Module Adapter - New Version for Nano TX Modules

Introduction

The BETAFPV Micro-Nano Module Adapter (New Version) is designed to bridge the gap between modern Nano TX modules and older or different transmitter bays. This adapter allows FPV pilots to utilize powerful nano-sized radio transmission modules, such as the BETAFPV ELRS Nano TX, with transmitters typically equipped with Micro or JR module slots. It's the perfect solution for enhancing transmitter compatibility and expanding your drone control options.

Key Advantages

• Effortless integration of Nano TX modules into Micro/JR bays.
• Supports popular modules like BETAFPV ELRS Nano TX, TBS Crossfire Nano TX, and Frsky Lite modules.

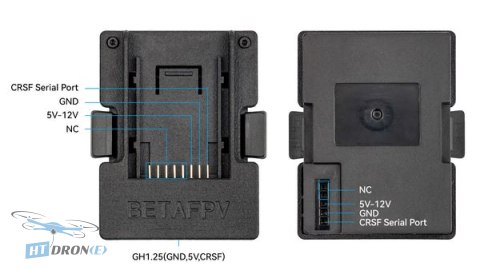

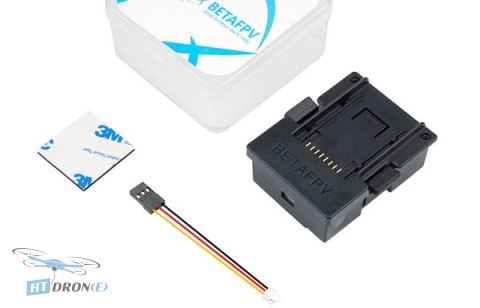

• Includes a 3PIN GH1.25 connector for seamless connection with Futaba and non-OpenTX radios.
• Easy installation process for quick setup.
• Compact JR module size (65x48x28mm) for minimal footprint.

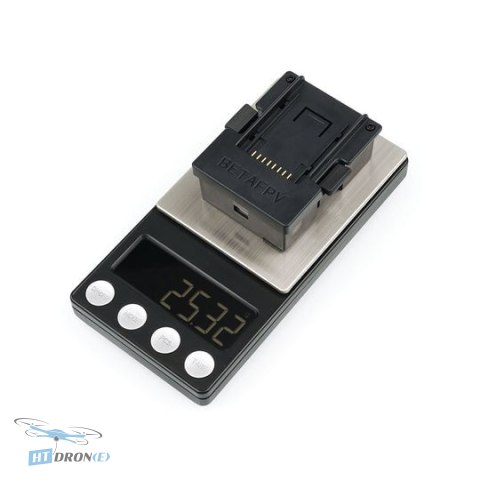

• Lightweight design at only 25g.
• Broad compatibility with numerous popular FPV radio transmitters.

Technical Specifications

• Product Name: Micro-Nano Module Adapter
• Dimensions: 65x48x28mm (JR Module Size)
• Weight: 25g
• Input Bay: JR Module Bay (Micro Module Bay)
• Output Bay: Nano Module Bay (Lite Module Bay)
• Supported Radio Transmitters: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S, Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro, Radiomaster TX16S/TX18S, TBS Mambo
• Supported TX Modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX, Frsky XJT Lite/R9M Lite/R9M Lite Pro

Applications

This adapter is ideal for FPV drone enthusiasts, racers, and freestyle pilots looking to upgrade their radio control systems. It enables the use of advanced ELRS or Crossfire nano modules with a wide range of popular transmitters, enhancing control link reliability and performance for various FPV applications.

Compatibility

Designed to fit into standard JR module bays (also known as Micro module bays), this adapter accepts Nano or Lite sized TX modules. The included 3PIN GH1.25 connector provides compatibility with Futaba radios and other controllers that do not run OpenTX firmware, expanding its usability.

FAQ

What is the BETAFPV Micro-Nano Module Adapter used for?

This adapter allows you to install and use compact Nano TX modules, such as the BETAFPV ELRS Nano TX or TBS Crossfire Nano TX, in FPV transmitters that have a standard Micro or JR module bay. It enhances transmitter compatibility, letting you use newer module technology with your existing radio.

Which radio transmitters are compatible with this adapter?

The adapter supports a wide range of popular radio transmitters including Frsky X9D series, Flysky TH9X, Turnigy 9XR series, Jumper T16/T18 series, Radiomaster TX16S/TX18S, and TBS Mambo. It also features a GH1.25 connector for Futaba and other non-OpenTX radios.

What types of TX modules can I use with this adapter?

You can use various Nano and Lite size TX modules, specifically the BETAFPV Nano TX Module, TBS Crossfire Nano TX, and Frsky XJT Lite/R9M Lite/R9M Lite Pro modules. This opens up options for advanced long-range control.

Where can I buy the BETAFPV Micro-Nano Module Adapter with fast delivery?

You can buy the BETAFPV Micro-Nano Module Adapter at HTDRONE. We offer fast shipping within Poland and reliable delivery options to Ukraine via Nova Poshta, as well as worldwide shipping via DHL for international customers.

What are the main benefits of using this adapter?

The primary benefit is the ability to upgrade your older transmitter with advanced ELRS or Crossfire nano modules, improving control link performance and range. It offers an easy installation process and broad compatibility with many popular radios and modules.
