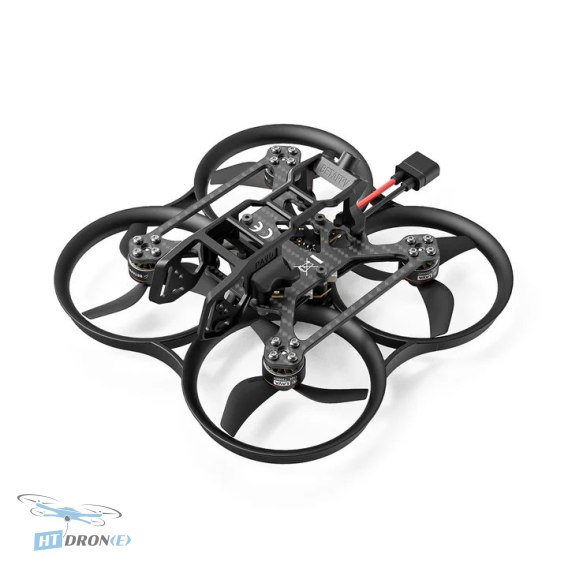

BETAFPV Pavo20 Pro Brushless Whoop Quadcopter ELRS 2.4G for Freestyle FPV Cinewhoop

Introduction

The BETAFPV Pavo20 Pro is a high-performance brushless whoop quadcopter specifically engineered for 2.2'' DJI O3 Cinewhoop applications, weighing under 150g. It's the ultimate choice for pilots looking to capture breathtaking FPV freestyle footage with exceptional agility and stability. This drone is built to push the boundaries of aerial cinematography and performance.

Key Advantages

• Optimized for 2.2'' DJI O3 Cinewhoop setups, offering a lightweight and powerful platform.
• Powered by LAVA Series 1104 | 7200KV Brushless Motors for maximum thrust and efficiency.
• Features custom-developed Gemfan GF 2218 3-Blade Props (1.5mm shaft) for superior performance.
• Aerodynamic frame design enhances thrust by 8-11%, improving flight dynamics.
• Extended flight time of up to 6 minutes and 40 seconds with the LAVA 3S 550mAh battery.
• Designed with dual fixed holes for the DJI O3 camera, supporting wide-angle shots.
• Classic Pavo series shock-absorbing structure ensures stable camera footage.
• Integrated ELRS 2.4G receiver for reliable control link.
• Versatile compatibility with DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD VTX systems.

Technical Specifications

• Item: Pavo20 Pro Brushless Whoop Quadcopter
• Wheelbase: 93.7mm

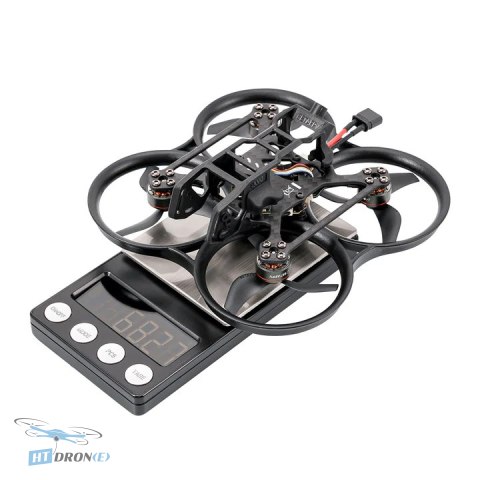

• Weight (without battery, air unit): 66.3g
• Supported VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
• Supported Camera: DJI O3 Cam, Caddx Series, RunCam Series 19mm/20mm
• Camera Filter Installation: Vertical
• Battery Connector: XT30
• Battery Slot: 20mm*Unlimited Height
• Recommended Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery
• FC: F4 2-3S 20A AIO FC V1
• Motor: LAVA Series 1104 | 7200KV Brushless Motors
• Propellers: Gemfan 2218 3-Blade Props (1.5mm shaft)
• Flight Time: 6'40'' (with LAVA Series 3S 550mAh battery)
• RX Version: ELRS 2.4G

Applications

This quadcopter is ideal for FPV freestyle flying, aerial cinematography, cinematic FPV, and capturing dynamic video footage. Its design makes it perfect for pilots who demand high performance and excellent camera stability for creative aerial shots.

Compatibility

VTX: Compatible with DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD Digital VTX. Camera: Supports DJI O3 Cam, Caddx Series, and RunCam Series cameras (19mm/20mm). Battery: Utilizes XT30 connector and is recommended for 3S batteries like the LAVA 3S 450mAh/550mAh 75C or 3S 650mAh options.

FAQ

What is the primary application for the BETAFPV Pavo20 Pro?

The BETAFPV Pavo20 Pro is primarily designed for FPV freestyle flying and aerial cinematography. It excels in capturing dynamic video footage with its stable platform and compatibility with high-quality camera systems like the DJI O3 Air Unit.

What is the expected flight time of the Pavo20 Pro?

With the recommended LAVA Series 3S 550mAh battery, the Pavo20 Pro can achieve flight times of up to 6 minutes and 40 seconds. This extended duration allows for more creative flying and filming sessions.

What FPV video transmission systems are compatible with the Pavo20 Pro?

The Pavo20 Pro is highly compatible with leading FPV digital video transmission systems. It supports the DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD Digital VTX, offering pilots flexibility in their setup.

Does the Pavo20 Pro come with a battery and DJI O3 Air Unit?

No, the battery and the DJI O3 Air Unit (or other VTX kits like Caddx Vista and RunCam Link) are not included with the Pavo20 Pro. These components must be purchased separately to complete your FPV setup.

Where can I buy the BETAFPV Pavo20 Pro with reliable delivery?

You can buy the BETAFPV Pavo20 Pro at HTDRONE. We offer fast and reliable shipping within Poland and worldwide via DHL. Check our store for the best deals on FPV drone parts.
