BETAFPV Pavo360 Frame Kit for SMO 360 Camera, 168mm Wheelbase, Carbon Fiber

Introduction

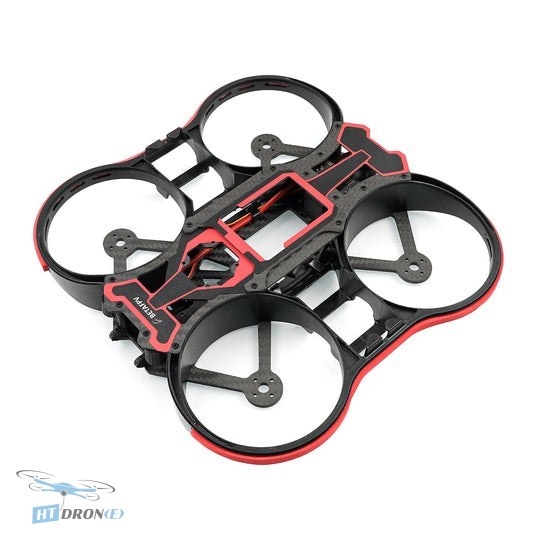

The BETAFPV Pavo360 Frame Kit is a cutting-edge, ultrathin, and flat frame design specifically optimized for the Pavo360 drone and the SMO 360 panoramic camera. Its sleek profile is perfect for achieving excellent invisibility during video recording, making it a top choice for cinematic FPV applications. This frame offers a superb balance between robust durability and lightweight construction, thanks to its high-quality carbon fiber build.

Key advantages

• Ultrathin and flat design for enhanced stealth and maneuverability.
• Constructed from premium carbon fiber for optimal durability and lightness.
• Engineered for rapid response, especially when paired with the F722 AIO Brushless FC 35A.
• Designed for a 168mm wheelbase, providing a stable and agile flight platform.
• Optimized for 3-inch 5-blade propellers and 2204-2400KV motors for peak performance.
• Specifically designed to be compatible with the SMO 360 camera.
• Includes all necessary components for a complete frame assembly.
• A perfect base for building a stealthy and high-performance FPV drone.

Technical specifications

• Item: Pavo360 Frame Kit

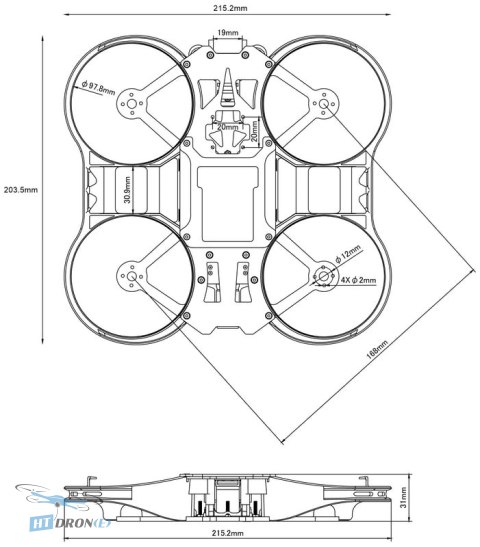

• Wheelbase: 168 mm
• Color: Black
• Material: PA12

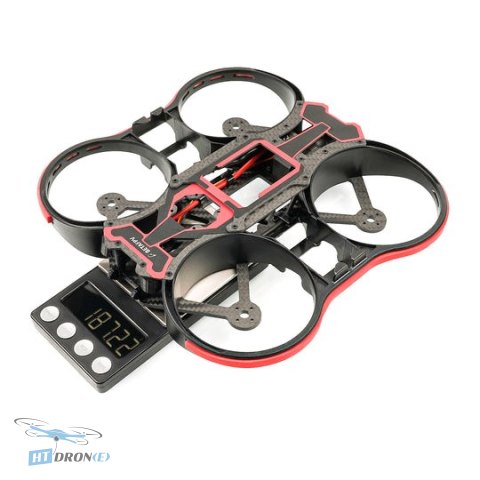

• Weight: 187.22 g
• Recommended Motor: 2204-2400KV motor
• Recommended FC: Toothpick F722 2-6S AIO 35A Brushless Flight Controller (BLHeli_S)
• Recommended Camera: SMO 360
• Recommended Battery: 850mAh 3S 75C Lipo Battery (2PCS) x 2
• Propellers: Gemfan D76 5-blade propellers

Applications

This frame is ideal for FPV drone pilots and videographers looking to capture smooth, cinematic footage with a stealthy and agile drone. Its design is particularly suited for aerial videography, FPV freestyle, and any application where minimal drone presence is desired. It's a great choice for building a custom FPV UAV for creative projects.

Compatibility

The BETAFPV Pavo360 Frame Kit is specifically designed to house the SMO 360 camera. Please note that the Insta360 ONE R camera is NOT compatible with this frame. It is recommended to use the Toothpick F722 2-6S AIO 35A Brushless Flight Controller, 2204-2400KV motors, Gemfan D76 5-blade propellers, and 850mAh 3S 75C Lipo batteries for optimal performance.

FAQ

What is the BETAFPV Pavo360 Frame Kit designed for?

The BETAFPV Pavo360 Frame Kit is specifically designed for building the Pavo360 drone, optimized for use with the SMO 360 panoramic camera. Its ultrathin and flat profile is ideal for stealthy aerial videography.

What are the key materials and dimensions of the Pavo360 Frame Kit?

This frame kit is constructed from durable PA12 material and features a 168mm wheelbase. It is designed to be lightweight, weighing 187.22g, balancing strength with agility for FPV flight.

What components are recommended for the BETAFPV Pavo360 Frame?

For optimal performance, BETAFPV recommends using a 2204-2400KV motor, the Toothpick F722 2-6S AIO 35A Brushless Flight Controller, Gemfan D76 5-blade propellers, and an 850mAh 3S 75C Lipo Battery. The SMO 360 camera is also specifically recommended.

Is the Insta360 ONE R compatible with the Pavo360 Frame Kit?

No, the BETAFPV Pavo360 Frame Kit is exclusively designed for the SMO 360 camera. The Insta360 ONE R camera is not compatible with this frame.
