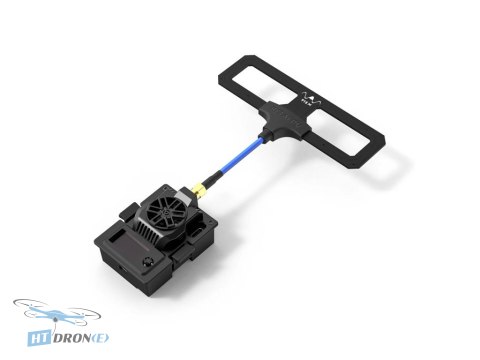

BETAFPV Micro TX V2 915/868MHz Long Range FPV Transmitter Module

Introduction

The BETAFPV Micro TX V2 module is engineered for serious FPV pilots who demand the utmost in signal reliability and performance for long-range flights. This advanced transmitter module addresses the need for stable, interference-free communication, ensuring your drone remains under precise control even when pushing the boundaries of distance. It's an essential upgrade for anyone looking to enhance their FPV system's capabilities.

Key Advantages

• Exceptional Long-Range Performance: Designed for pilots who fly far, ensuring a stable and reliable connection.
• High RF Output Power: Features a maximum RF output power of 2W for extended operational range.
• Advanced Cooling System: Integrated TCXO, increased airflow, enlarged vents, and a high-speed 2507 axial fan optimize heat dissipation for sustained performance.
• Stable Signal Transmission: Supports high packet rates up to 200Hz for minimal latency and robust signal integrity.
• User-Friendly Interface: A 5D button and clear OLED display simplify firmware flashing and adjustments on the fly.
• Flexible Power Options: Supports multiple RF power levels to suit various flying conditions and regulations.
• Durable Construction: Built to withstand the rigors of FPV flying.
• Included Moxon Antenna: Comes with a V2 Moxon antenna for optimized signal directionality.

Technical Specifications

• Item: BETAFPV Micro TX V2 Module | ELRS 915/868MHz
• Weight: 54.8g
• Color: Black
• Antenna Connector: SMA-KE
• RF Power Options: 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW / 2000mW
• Packet Rate Frequency: 25Hz / 50Hz / 100Hz / 100Hz Full / 200Hz / D50
• Frequency Band: 915MHz (FCC) / 868MHz (EU)
• Backpack Support: Yes
• Input Voltage: 7V-13V DC
• Rated Current: 10V, 1A @ 2000mW, 200Hz, 1:128
• USB Port: Type C
• Fan Voltage: 5V
• Default Firmware Version: ExpressLRS V3.4.3
• Target Name: BETAFPV Micro 900MHz TX V2

Applications

This module is ideal for various FPV applications, including long-range exploration, freestyle flying, drone racing, and aerial photography where a stable and powerful signal is critical. Its versatility makes it suitable for pilots operating in diverse environments and at significant distances from their control station.

Compatibility

The BETAFPV Micro TX V2 module is designed for compatibility with FPV systems utilizing ExpressLRS protocol. It features a standard SMA-KE antenna connector and a Type-C USB port for firmware updates and configuration. Input voltage ranges from 7V to 13V DC, making it compatible with most FPV drone power systems. Includes an adapter cable for FUTABA connectors.

FAQ

What is the maximum RF output power of the BETAFPV Micro TX V2 module?

The BETAFPV Micro TX V2 module offers a maximum RF output power of 2000mW (2W), ensuring robust signal strength for long-range FPV flights.

What are the supported packet rate frequencies for the BETAFPV Micro TX V2?

This module supports various packet rate frequencies including 25Hz, 50Hz, 100Hz, 100Hz Full, 200Hz, and D50, allowing for optimized performance and reduced latency.

What frequency bands does the BETAFPV Micro TX V2 operate on?

The BETAFPV Micro TX V2 operates on the 915MHz band for FCC regions and the 868MHz band for EU regions, providing flexibility for international users.

How is the BETAFPV Micro TX V2 module cooled?

It features an advanced cooling system with an integrated TCXO for temperature stability, increased airflow, enlarged ventilation holes, and a high-speed 2507 axial fan to efficiently dissipate heat.

Where can I buy the BETAFPV Micro TX V2 module with fast delivery?

You can buy the BETAFPV Micro TX V2 module at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL.
