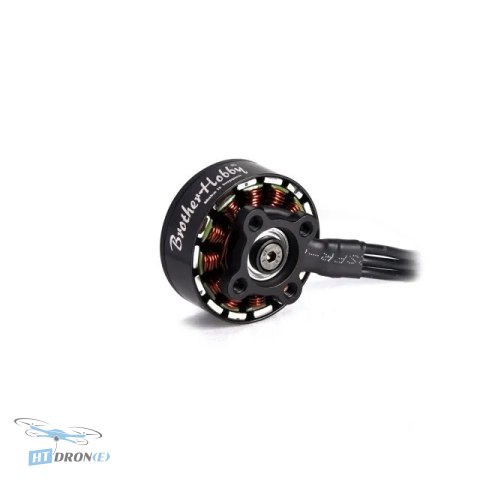

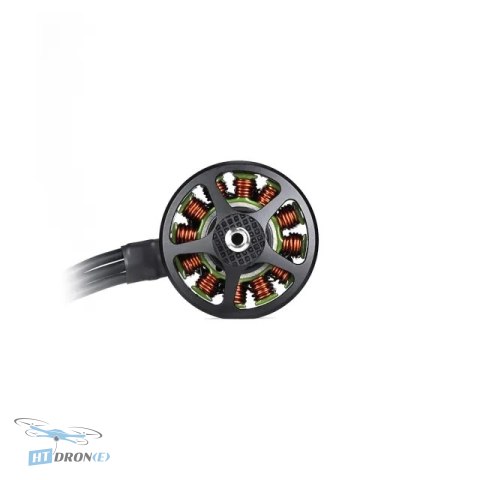

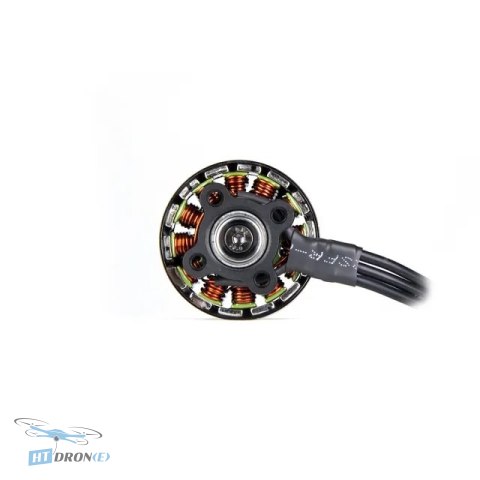

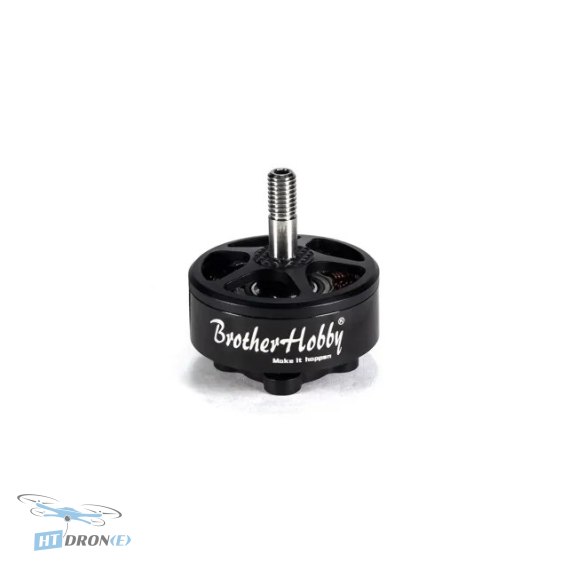

Brotherhobby Avenger 2808 1350KV Brushless Motor for FPV Drones

Introduction

The Brotherhobby Avenger 2808 1350KV is a high-performance brushless motor designed to meet the rigorous demands of powerful FPV drone builds. Whether you are into long-range exploration, cinematic videography, or carrying heavy payloads, this motor provides the robust power and reliability needed for superior flight performance. It's an ideal choice for pilots seeking maximum efficiency and durability in their 4-6S configurations.

Key advantages

• High Power Output: Delivers a maximum power of up to 1685W, perfect for high-performance FPV drones.
• Precision Engineering: Utilizes 0.2mm Kawasaki silicon steel stator, Japanese NMB bearings, and N52H magnets for smooth, stable, and reliable operation.
• Durable Construction: Features a 7075 aluminum bell and base, combined with a titanium alloy hollow shaft for exceptional strength and reduced weight.
• Optimized Performance: The 12N14P configuration and 1350KV rating provide high torque and consistent power, ideal for large propellers like the HQ 8x4.5x3.
• 6S Ready: Supports 4-6S LiPo batteries and pairs perfectly with an 80A 6S ESC for peak performance.
• Easy Installation: Standard M3 19x19mm mounting pattern and M5 prop shaft ensure broad compatibility with popular frames and propellers.
• Lightweight Design: Weighs only 54g (with 25cm wires), contributing to better drone agility and flight time.

Technical specifications

• KV Rating: 1350KV
• Stator Dimensions: 28mm
• Stator Material: 0.2mm Kawasaki silicon steel
• Stator Height: 8mm
• Internal Resistance: 55 mΩ
• Base Case Material: 7075 Aluminum
• Max Power: 1685W
• Max Current: 68.48A
• Magnets: N52H
• Configuration: 12N14P
• Propeller Adapter Shaft Thread: M5
• Shaft Type: Titanium alloy hollow shaft
• Cell Count (LiPo): 4-6S
• Bolt Hole Spacing: M3 (19 x 19 mm)
• Bearings: Japanese NMB 12x6x4 mm
• Weight: 54g (with 25cm SR wires)
• Wire Gauge: 18 AWG, 25cm length
• Bell Case Material: 7075 Aluminum
• Motor Dimensions: Φ33x36.2 mm
• Idle Current at 14V: 1.03A / 10V
• Recommended ESC: 6S 80A
• Recommended Propeller: HQ 8x4.5x3

Applications

This motor is ideally suited for advanced FPV applications including long-range exploration, professional cinematic FPV drones, heavy-lift platforms, and high-power freestyle builds. Its robust design and high thrust make it versatile for various demanding aerial tasks.

Compatibility

Features a standard M3 19x19mm mounting pattern for easy integration with most FPV frames. The M5 propeller shaft is compatible with a wide range of propellers. Supports 4-6S LiPo batteries and is recommended to be used with an 80A 6S ESC for optimal performance.

FAQ

What is the Brotherhobby Avenger 2808 1350KV motor best suited for?

The Brotherhobby Avenger 2808 1350KV motor is best suited for demanding FPV applications such as long-range flights, cinematic videography, and heavy-lift drone builds. Its high power output and durable construction ensure reliable performance in these scenarios.

What battery voltage does this FPV motor support?

This motor supports LiPo batteries in the 4S to 6S range. It is recommended to pair it with an 80A 6S ESC for optimal performance and efficiency.

What are the key construction features of the Brotherhobby Avenger 2808?

Key features include a 0.2mm Kawasaki silicon steel stator, Japanese NMB bearings, N52H magnets, a 7075 aluminum bell and base, and a lightweight titanium alloy hollow shaft for enhanced durability and reduced weight.

Where can I buy the Brotherhobby Avenger 2808 1350KV motor with fast delivery?

You can buy the Brotherhobby Avenger 2808 1350KV motor directly from the HTDRONE store. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What is the maximum power output of the Brotherhobby Avenger 2808 1350KV motor?

The Brotherhobby Avenger 2808 1350KV motor boasts a maximum power output of up to 1685W, providing ample power for aggressive maneuvers and heavy payloads.
