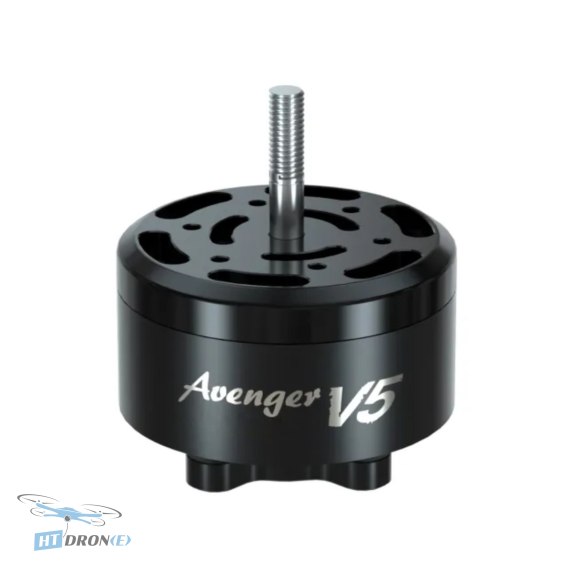

Brotherhobby Avenger 4215 V5 660KV Brushless Motor for 6-8S FPV Drones

Introduction

The Brotherhobby Avenger 4215 V5 660KV is a high-performance brushless motor designed for serious FPV and UAV applications. It's built to handle the demands of large drone platforms and is perfectly suited for pilots running high-voltage 6-8S LiPo battery systems. This motor offers a robust solution for those needing reliable, consistent power delivery, even during intense aerial maneuvers or heavy payload operations.

Key Advantages

• Exceptional power output for large FPV and UAV drones.
• Optimized for high-voltage 6-8S LiPo battery configurations.
• Durable construction ensures long-lasting performance and reliability.
• Provides consistent, stable thrust under demanding load conditions.
• Features high-quality N52H arc magnets for maximum efficiency.
• Includes a 1248 three-blade propeller for immediate use.
• Robust Al 7075 aluminum housing for enhanced durability.

Technical Specifications

• Model: Brotherhobby Avenger 4215 V5
• KV Rating: 660KV
• Size: 4215
• Stator: 15 mm
• Configuration: 12N14P
• Shaft Thread: M5 Prop Adapter
• Shaft Material: SUS420
• Bearings: 12x6x4 mm
• LiPo Cell Count: 6-8S
• Motor Mount Pattern: M3 (30x30 mm)
• Rotor: N52H arc magnets
• Weight: 213 g (with 30cm wires)
• Wire Gauge: 16 AWG
• Wire Length: 30 cm
• Bell Housing: Al 7075

Applications

This motor is ideal for building or upgrading large FPV freestyle drones, professional UAV platforms, long-range exploration vehicles, and heavy-lift camera platforms. Its power and efficiency make it suitable for applications requiring significant thrust and endurance.

Compatibility

Compatible with 6-8S LiPo batteries. Features an M5 prop shaft thread and a 30x30mm mounting pattern. Supplied with a 1248 propeller.

FAQ

What is the Brotherhobby Avenger 4215 V5 660KV motor best suited for?

This motor is ideal for large FPV freestyle drones, professional UAV platforms, and other applications requiring high thrust and reliable power delivery, especially when using 6-8S LiPo batteries.

What kind of battery voltage does this motor support?

The Brotherhobby Avenger 4215 V5 660KV motor is designed to work with high-voltage LiPo battery configurations, specifically supporting 6-8S cells.

What are the key technical features of this Brotherhobby motor?

It boasts a 4215 size, 660KV rating, robust Al 7075 housing, N52H arc magnets for efficiency, and a durable SUS420 steel shaft. It also features a standard 30x30mm mounting pattern.

Does the motor come with a propeller?

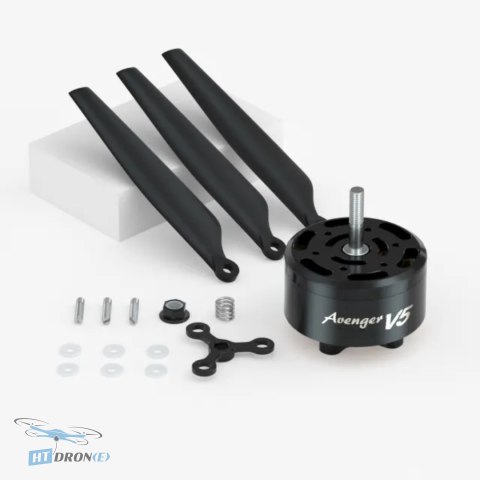

Yes, each Brotherhobby Avenger 4215 V5 660KV motor comes as a kit including a 1248 three-blade propeller.

Where can I buy the Brotherhobby Avenger 4215 V5 660KV motor with fast delivery?

You can order the Brotherhobby Avenger 4215 V5 660KV motor from HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
