CUAV Airspeed Sensor MS4525 for Pixhawk, CUAV V5+/X7 Drones - Accurate Flight Speed Measurement

Introduction

The CUAV Airspeed Sensor MS4525 is a sophisticated flight sensor designed to provide critical airspeed data for advanced unmanned aerial vehicles (UAVs). It integrates a high-accuracy TE MS4525DO differential pressure transducer with a finely crafted stainless steel Pitot tube. This combination is essential for fixed-wing and VTOL (Vertical Take-Off and Landing) aircraft, enabling precise measurement of air speed relative to the surrounding air mass. By offering reliable airspeed readings, this sensor significantly enhances autopilot performance, flight stability, and overall mission safety, making it a vital component for professional drone operations.

Key Advantages

• Accurate Airspeed Measurement: Utilizes a high-sensitivity silicon pressure transducer (TE MS4525DO) for precise readings.
• Integrated Pitot Tube: Includes a durable 14x92mm stainless steel Pitot tube for reliable air pressure collection.
• Real-time Compensation: Enables real-time flight speed compensation, boosting autopilot accuracy and flight safety.
• Wide Compatibility: Designed for seamless integration with Pixhawk, CUAV V5+, CUAV X7, and other I²C-compatible flight controllers.
• Lightweight Design: Weighs only 17g, adding minimal payload to your UAV.
• Enhanced Flight Performance: Optimizes flight control, improves energy efficiency, and ensures stable flight characteristics.
• Durable Construction: Features a robust stainless steel Pitot tube and high-quality silicone tubing.
• Easy Integration: Comes with all necessary cables for straightforward connection to your flight controller.

Technical Specifications

• Sensor Element: TE MS4525DO differential pressure transducer
• Pitot Tube Dimensions: 14 mm Ø × 92 mm length
• Weight: 17 g (tube + sensor)
• Compatibility: Pixhawk, CUAV V5+, CUAV X7, and other I²C-interface flight controllers

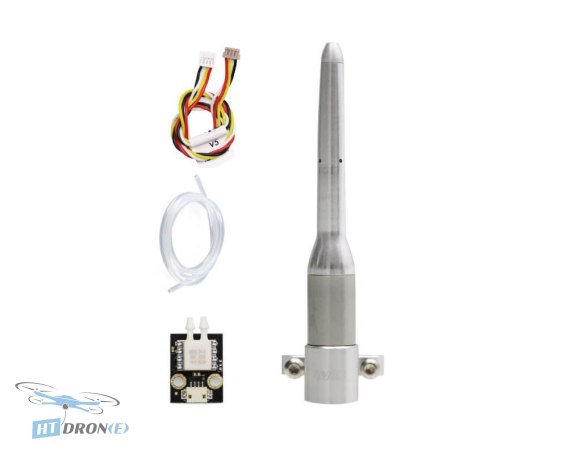

• Included: Stainless steel Pitot tube, MS4525 differential pressure sensor board, silicone pressure hose, I²C flight controller cable

Applications

This airspeed sensor is ideal for a wide range of UAV applications, including long-range mapping, aerial surveying, agricultural monitoring, inspection missions, and advanced FPV (First Person View) systems requiring precise flight data. It is particularly beneficial for fixed-wing drones and VTOL aircraft that rely on accurate airspeed for stable flight and efficient navigation.

Compatibility

The CUAV Airspeed Sensor MS4525 is compatible with flight controllers utilizing the I²C interface, specifically designed for Pixhawk, CUAV V5+, and CUAV X7. Ensure your flight controller firmware supports airspeed sensors via I²C for full functionality.

FAQ

What is the CUAV Airspeed Sensor MS4525 used for?

The CUAV Airspeed Sensor MS4525 is used to accurately measure the speed of air flowing past a drone. This data is crucial for autopilot systems to maintain stable flight, optimize performance, and improve safety, especially for fixed-wing and VTOL aircraft.

Which flight controllers are compatible with the CUAV MS4525?

This airspeed sensor is designed for compatibility with Pixhawk, CUAV V5+, CUAV X7, and other flight controllers that support the I²C interface for sensor communication.

What are the key technical specifications of the CUAV Airspeed Sensor MS4525?

It features a TE MS4525DO differential pressure transducer, a 14x92mm stainless steel Pitot tube, and weighs only 17g. It connects via the I²C interface.

Is this sensor suitable for FPV drones?

While primarily designed for professional UAVs like fixed-wing and VTOL, advanced FPV pilots who require precise flight data for complex maneuvers or long-range flights may find this sensor beneficial. It enhances flight stability and control.

Where can I buy the CUAV Airspeed Sensor MS4525 with fast delivery?

You can order the CUAV Airspeed Sensor MS4525 from HTDRONE, a specialized store based in Poland. We offer fast shipping within Poland and reliable international delivery via DHL worldwide.
