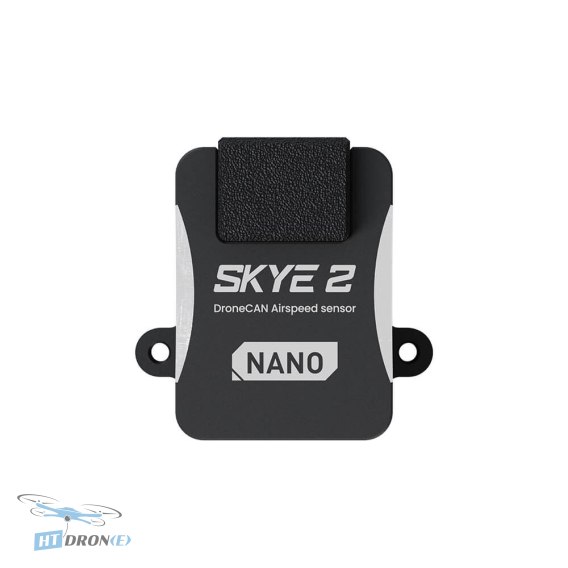

CUAV Airspeed Sensor SKYE 2 NANO for Fixed-Wing & VTOL Drones | DroneCAN Interface

Introduction

The CUAV Airspeed Sensor SKYE 2 NANO is a critical component for advanced unmanned aerial vehicles, specifically designed for fixed-wing and VTOL aircraft. It provides highly accurate airspeed measurements, essential for flight stability, navigation, and performance optimization. Utilizing the robust DroneCAN interface, this sensor ensures reliable data transmission, making it an indispensable tool for serious drone pilots and developers.

Key Advantages

• Precise Airspeed Measurement: Accurately measures flight speeds from 0 to 226.8 km/h with ±1% accuracy using the DLVR_L10D sensor.
• Robust DroneCAN Interface: Features a durable DroneCAN (with FD support) for reliable and high-speed data communication.
• Lightweight & Compact Design: Weighing only 15g and housed in a compact aluminum alloy casing (32.0x33.4x18.5 mm), it minimizes added weight and integrates easily.
• Wide Operating Temperature Range: Functions reliably in extreme conditions, from -20°C to +85°C.
• Enhanced Flight Performance: Improves autopilot efficiency, aerodynamics, and overall flight control for fixed-wing and VTOL drones.
• Broad Compatibility: Seamlessly integrates with popular flight controllers like PX4, ArduPilot, CUAV, and Pixhawk.
• Durable Construction: Built with a lightweight yet strong aluminum alloy housing for longevity.
• Low Power Consumption: Operates efficiently with a typical current draw of ≤20 mA.

Technical Specifications

• Sensor Element: DLVR_L10D differential pressure transducer
• Airspeed Range: 0-226.8 km/h
• Accuracy: ±1%
• Interface: DroneCAN (with FD support)
• Input Voltage: 4.75-5.3 V
• Current Consumption: ≤20 mA (typical)
• Operating Temperature: -20°C to +85°C
• Housing Material: Aluminum alloy
• Dimensions: 32.0 × 33.4 × 18.5 mm
• Weight: 15 g
• Compatibility: PX4, ArduPilot, CUAV, Pixhawk flight controllers

Applications

The CUAV SKYE 2 NANO is perfectly suited for a wide range of applications including advanced FPV fixed-wing aircraft, professional UAVs for aerial surveying and inspection, long-range reconnaissance drones, and VTOL aircraft requiring precise flight data for optimal performance and safety.

Compatibility

This sensor is designed for compatibility with PX4, ArduPilot, CUAV, and Pixhawk flight control systems, utilizing the standard DroneCAN interface. It operates within a 4.75-5.3V input voltage range.

FAQ

What is the CUAV Airspeed Sensor SKYE 2 NANO used for?

The CUAV SKYE 2 NANO is designed to provide precise airspeed measurements for fixed-wing and VTOL drones. It enhances flight stability, navigation accuracy, and overall autopilot performance.

What is the accuracy and speed range of the SKYE 2 NANO sensor?

This sensor offers a high accuracy of ±1% and can measure airspeed in the range of 0 to 226.8 km/h, making it suitable for a wide variety of flight conditions.

Which flight controllers are compatible with the CUAV SKYE 2 NANO?

The CUAV SKYE 2 NANO is compatible with popular flight control systems including PX4, ArduPilot, CUAV, and Pixhawk, utilizing the DroneCAN interface for seamless integration.

What are the power and operating temperature requirements for this sensor?

The sensor operates within an input voltage range of 4.75-5.3V and can function reliably in temperatures from -20°C to +85°C, ensuring performance in diverse environments.

Where can I buy the CUAV SKYE 2 NANO airspeed sensor with reliable delivery?

You can order the CUAV SKYE 2 NANO airspeed sensor directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international customers.
