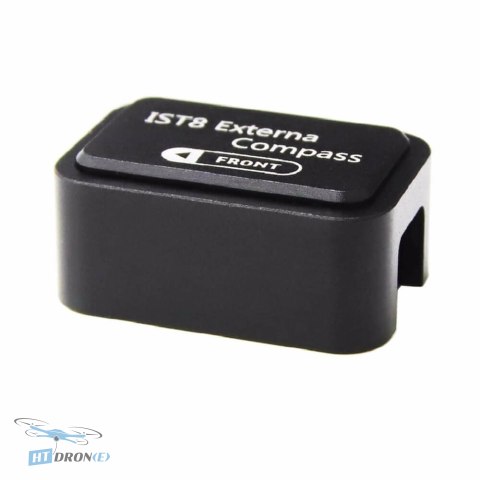

CUAV IST8 Compass V5+ External Magnetometer Module for Flight Controllers

Introduction

The CUAV IST8 Compass V5+ is a high-precision external compass module designed to significantly improve the directional accuracy of your drone's flight controller. Built around the advanced iSentek IST8310 geomagnetic sensor, this module is engineered for seamless integration with CUAV V5+ and Pixhawk flight controllers running PX4 or ArduPilot firmware. It's the ideal solution for pilots seeking reliable heading data, especially in environments prone to magnetic interference, ensuring safer and more precise flights.

Key Advantages

• High-Precision Navigation: Utilizes the iSentek IST8310 3×3 mm LGA geomagnetic sensor for accurate heading data.
• Wide Compatibility: Designed for easy integration with CUAV V5+ and Pixhawk flight controllers using PX4 or ArduPilot.
• Robust Performance: Operates reliably within an extreme temperature range of -40°C to +85°C.
• Compact and Lightweight: Measuring just 23×14×9 mm and weighing only 5g, it fits easily into space-constrained drone builds.
• Simple Integration: Features an I²C interface for straightforward connection, configuration, and calibration.
• Stable Heading Data: Provides consistent directional information crucial for advanced autopilot functions.
• Enhanced Flight Safety: Improves overall flight stability and navigation precision, reducing the risk of disorientation.
• Durable Construction: Built to withstand demanding operational conditions.

Technical Specifications

• Sensor: iSentek IST8310 3×3 mm LGA geomagnetic sensor
• Operating Voltage: 5V
• Interface: I²C
• Operating Temperature: -40°C to +85°C
• Dimensions: 23 × 14 × 9 mm
• Weight: 5 g

Applications

This CUAV IST8 Compass V5+ module is perfect for a wide range of unmanned aerial vehicles (UAVs) and FPV (First Person View) drones. Applications include aerial photography, surveying, mapping, agricultural monitoring, inspection tasks, racing drones, and any custom UAV project requiring precise and reliable directional data from the flight controller.

Compatibility

The module is specifically designed for compatibility with CUAV V5+ and Pixhawk flight controllers running PX4 or ArduPilot firmware. It connects via the standard I²C interface and operates on a 5V power supply, ensuring broad integration possibilities within popular autopilot ecosystems.

FAQ

What is the CUAV IST8 Compass V5+?

The CUAV IST8 Compass V5+ is an external magnetometer module designed to provide precise heading data for drone flight controllers like CUAV V5+ and Pixhawk. It uses the iSentek IST8310 sensor for accurate navigation.

What flight controllers is the CUAV IST8 Compass V5+ compatible with?

This compass module is designed for seamless integration with CUAV V5+ and Pixhawk flight controllers running PX4 or ArduPilot firmware. It connects via the I²C interface.

What are the operating temperature limits for the CUAV IST8 Compass V5+?

The CUAV IST8 Compass V5+ is built to perform reliably in extreme conditions, operating within a wide temperature range from -40°C to +85°C.

Why should I use an external compass like the CUAV IST8?

External compasses like the CUAV IST8 provide more stable and accurate heading data compared to internal sensors, especially in drones with significant electronic noise or metallic components. This improves overall flight stability and navigation precision.

Where can I buy the CUAV IST8 Compass V5+ with fast delivery?

You can order the CUAV IST8 Compass V5+ directly from HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
