Introduction

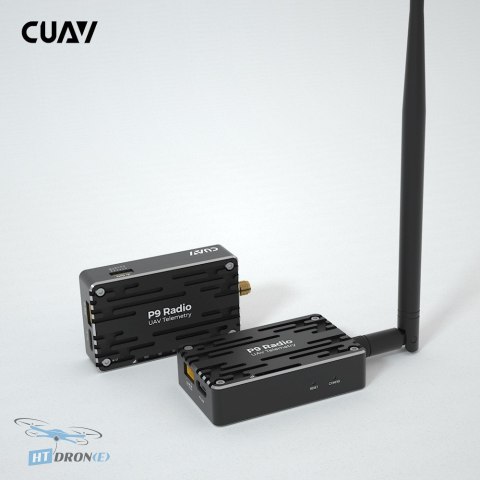

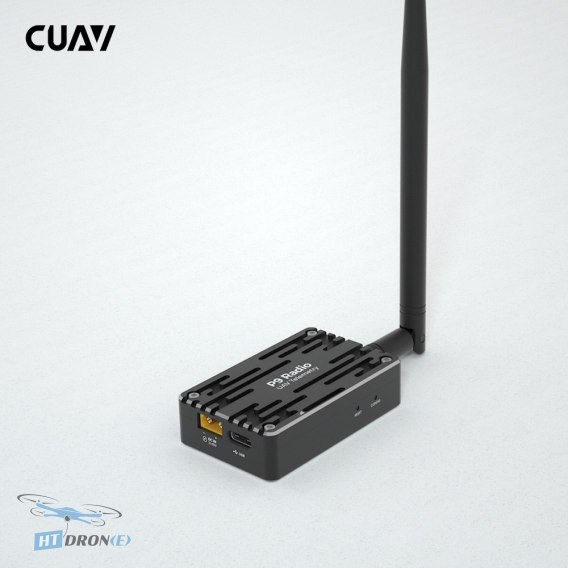

The CUAV P9 Telemetry Radio Drone Sky and Base Unit is a high-performance communication system designed for advanced drone applications. It provides reliable, long-range data transmission, ensuring seamless control and monitoring for both the drone (sky unit) and the ground station (base unit). Ideal for professionals and serious hobbyists who demand stability and extended operational range.

Key advantages

• Exceptional long-distance transmission capabilities, reaching up to 40km reference distance.
• Supports versatile communication modes including point-to-point and relay.
• Robust construction with a CNC aluminum alloy body for durability.
• Advanced anti-interference technology utilizing fast frequency hopping.
• Wide input voltage range (3~12S) for flexible power integration.
• High transmission speeds up to 230.4 kb/s ensure efficient data flow.
• Multiple operational modes like Auto Routing and Self Healing for enhanced reliability.
• Compact and lightweight design suitable for various drone platforms.

Technical specifications

• Operating Frequency: 902-928 MHz
• Transmission Technology: Frequency Hopping
• Transmission Protocol: Transparent Transmission
• Forward Error Correction: Hamming / BCH / Golay / Reed-Solomon
• Error Detection: 32-bit CRC, ARQ
• Encryption: Optional (AES)
• Range: Reference Distance: 40 km (actual transmission distance varies by environment/configuration)
• Sensitivity: -110 dBm @ 115.2 kbps, -108 dBm @ 172.8 kbps, -107 dBm @ 230.4 kbps
• Output Power: 100mW - 1W (20-30dBm) (Default: 1W)
• Serial Interface: 3.3V CMOS TTL
• Antenna Gain: 5 dBi
• Transmission Speed: Up to 230.4 kb/s; 57600 (Default)
• Link Throughput: 115 - 276 kb/s
• Operating Modes: Auto Routing, Store and Forward, Self Healing, Packet Routing
• Working Voltage: 12V-60V
• Power Consumption: Sleep < 1mA, Idle < 3.5mA, RX: 35mA ~ 80mA, TX: 800mA ~ 1200mA
• Interfaces: Serial: GHR-06V-S, Antenna: SMA internal needle, USB: TYPE-C, Power: TX30PW-M
• Operating Temperature: -40℃ to +85℃
• Humidity: 5% to 95% (non-condensing)
• Weight: 5g (without antenna); Antenna: 31g
• Size: 65mm x 40mm x 16.5mm

Applications

This telemetry radio system is perfect for long-range FPV flights, professional UAV operations, agricultural drones, aerial surveying, inspection drones, and any application requiring reliable, extended-range command and control link.

Compatibility

The unit features a 3.3V CMOS TTL serial interface and supports a wide working voltage range from 12V to 60V (3-12S LiPo). It uses a standard SMA antenna connector and a USB Type-C port for potential configuration or firmware updates. Power is supplied via a TX30PW-M connector.

FAQ

What is the maximum transmission range of the CUAV P9 Telemetry Radio?

The CUAV P9 Telemetry Radio has a reference transmission distance of up to 40 km. Please note that the actual transmission range can vary depending on environmental factors and specific configurations.

What communication modes does the CUAV P9 support?

This telemetry unit supports multiple communication methods, including point-to-point communication and relay communication, offering flexibility for various drone setups.

Is the CUAV P9 suitable for professional UAV applications?

Yes, with its long-range capabilities, robust construction, and advanced anti-interference features, the CUAV P9 is an excellent choice for professional UAV operations, aerial surveying, and inspection tasks.

What is the power input requirement for the CUAV P9?

The CUAV P9 operates with a wide input voltage range of 12V-60V (3-12S), making it compatible with a variety of power sources commonly used in drone systems.
