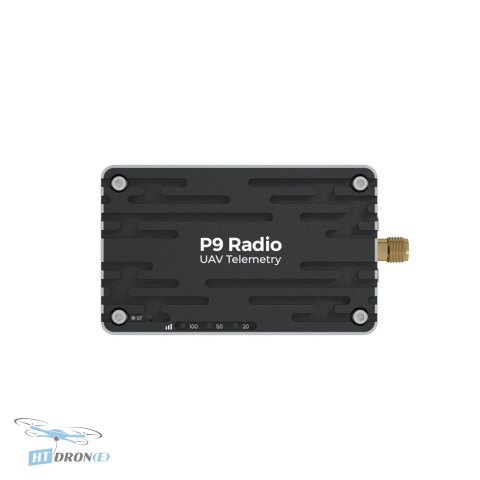

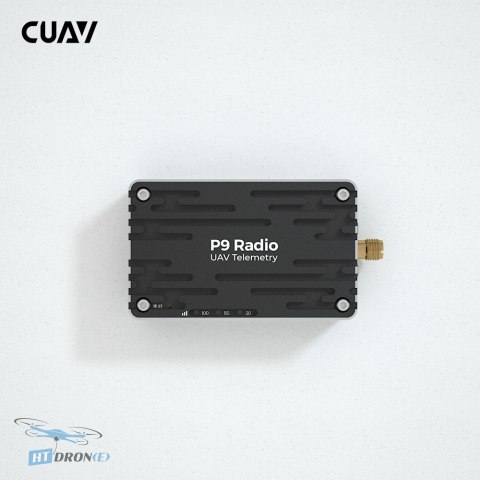

CUAV P9 Telemetry Radio Drone Sky and Base Unit for Long-Range FPV & UAV

Introduction

The CUAV P9 Telemetry Radio Drone Sky and Base Unit is a high-performance communication system designed for demanding FPV and UAV applications. It provides a stable and reliable link between your ground station and drone, enabling real-time data transmission and control over extended distances. Built with professional pilots and drone operators in mind, the P9 unit addresses the need for robust, long-range telemetry in challenging environments.

Key Advantages

• Extended communication range of up to 40 km for comprehensive aerial coverage.
• Supports multiple communication modes including point-to-point and relay communication.
• Advanced Frequency Hopping technology ensures strong anti-interference capabilities.
• Durable and lightweight CNC aluminum alloy construction for enhanced longevity.
• Wide operating voltage input (3-12S) suitable for various drone setups.
• Efficient power management with low consumption in sleep and idle modes.
• Optional AES encryption for secure data transmission.
• High data transmission rates up to 230.4 kbps for real-time feedback.

Technical Specifications

• Operating Frequency: 902-928 MHz
• Transmission Technology: Frequency Hopping
• Transmission Protocol: Transparent Transmission
• Forward Error Correction: Hamming / BCH / Golay / Reed-Solomon
• Error Detection: 32-bit CRC, ARQ
• Encryption: Optional (AES)
• Range: Reference distance: 40 km (actual transmission distance varies by environment/configuration)
• Sensitivity: -110 dBm @ 115.2 kbps, -108 dBm @ 172.8 kbps, -107 dBm @ 230.4 kbps
• Output Power: 100mW - 1W (20-30dBm) (Default: 1W)
• Serial Interface: 3.3V CMOS TTL
• Antenna Gain: 5 dBi
• Transmission Speed: Up to 230.4 kb/s (Default: 57600)
• Link Throughput: 115 - 276 kb/s
• Working Modes: Auto Routing, Store and Forward, Self Healing, Packet Routing
• Working Voltage: 12V-60V
• Power Consumption: Sleep < 1mA, Idle < 3.5mA, RX: 35mA ~ 80mA, TX: 800mA ~ 1200mA
• Interfaces: Serial: GHR-06V-S, Antenna: SMA internal needle, USB: TYPE-C, Power: TX30PW-M
• Operating Temperature: -40℃ to +85℃
• Humidity: 5% to 95% (non-condensing)
• Weight: 5g (without antenna); Antenna: 31g
• Size: 65mm x 40mm x 16.5mm

Applications

This telemetry radio is ideal for a wide range of applications including long-range FPV flying, professional UAV operations, aerial photography, infrastructure inspection, agricultural monitoring, and search and rescue missions where reliable, long-distance data communication is critical.

Compatibility

The CUAV P9 unit features a 3.3V CMOS TTL serial interface and supports a wide working voltage range from 12V to 60V. It includes standard interfaces like GHR-06V-S for serial connection, an SMA connector for the antenna, a USB Type-C port for configuration and updates, and a TX30PW-M power connector. Ensure your flight controller and power system are compatible with these specifications.

FAQ

What is the maximum communication range of the CUAV P9 Telemetry Radio?

The CUAV P9 Telemetry Radio offers a reference communication range of up to 40 km. Please note that the actual transmission distance can vary depending on environmental factors and specific configuration.

What makes the CUAV P9 suitable for long-range FPV and UAV flights?

Its extended range of up to 40 km, coupled with advanced Frequency Hopping technology for superior anti-interference, makes the CUAV P9 ideal for maintaining a stable connection during long-distance FPV and UAV operations.

What are the power requirements for the CUAV P9 unit?

The CUAV P9 operates within a wide voltage range of 12V to 60V, supporting 3-12S battery configurations. It also features efficient power consumption, with minimal draw in sleep and idle modes.

Can the CUAV P9 transmit data securely?

Yes, the CUAV P9 Telemetry Radio system supports optional AES encryption, allowing for secure data transmission to protect your communication link.
