CUAV X7+ Pro Flight Controller - STM32H7, Industrial Drones, ArduPilot Compatible

Introduction

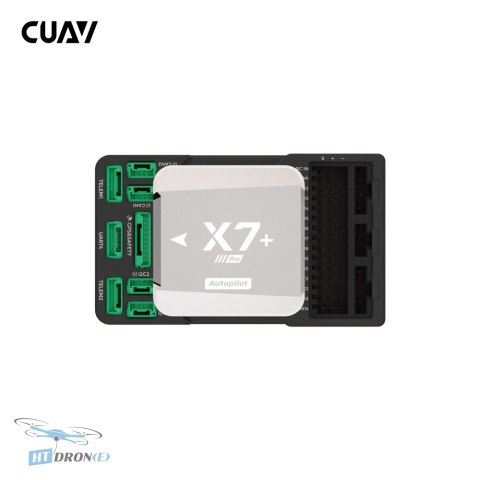

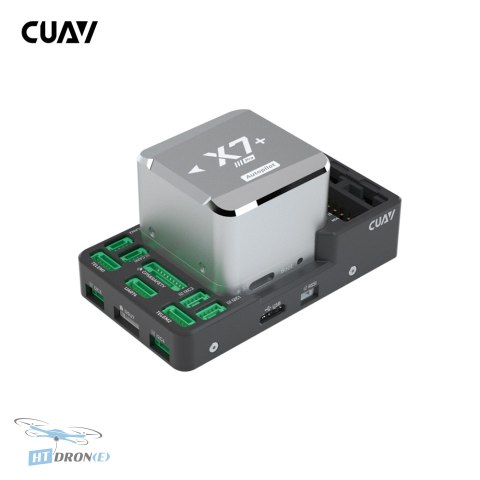

The CUAV X7+ Pro Flight Controller is a cutting-edge autopilot system developed by CUAV, designed for demanding industrial drone applications. It leverages a high-performance STM32H7 processor and integrates industrial-grade sensors characterized by exceptionally low temperature drift. Compared to previous generations, the X7 Pro delivers enhanced performance and increased reliability, making it a top choice for professional UAV operations. It runs ArduPilot firmware flawlessly, ensuring compatibility with a vast ecosystem of tools and support.

Key Advantages

• Industrial-grade IMU sensors with minimal temperature drift for consistent performance.
• Modular design allows for custom carrier board configurations, enhancing flexibility.
• High-speed USB_HS support for faster flight log downloads.
• DShot output support enables advanced motor control capabilities.
• Integrated heating for INS improves sensor performance in challenging environmental conditions.
• Dedicated battery port for simplified power management.
• Triple power redundancy (Power A, Power C, USB) ensures operational safety.
• Supports multiple receiver types (S.BUS/PPM/DSM) for broad compatibility.

Technical Specifications

• Manufacturer: CUAV
• Main Controller: STM32H743
• Accelerometer/Gyroscope: ICM-20649
• Accelerometer/Gyroscope: ADIS16470
• Accelerometer/Gyroscope: BMI088
• Compass: RM3100
• Barometer: MS5611 x2
• Frequency: 480 MHz
• Flash Memory: 2048K
• Power Module: Digital CAN PMU SE
• Receiver Interfaces: S.BUS/PPM/DSM
• Peripheral Interfaces: PWM x14 (supports 12 DShot)
• RSSI: Analog/PWM
• UART Ports for GPS: 2 (GPS and UART4)
• I2C Buses: 4 (2 dedicated ports)
• CAN Buses: 2
• ADC: 2
• USB Port: Type-C
• Power Lines: 2 (Power A connected to current sensor interface, Power C with CAN bus)
• Power Supply: Power A/C: 4.3-5.4V, USB: 4.75-5.25V
• Servo Line Voltage: 0-36V

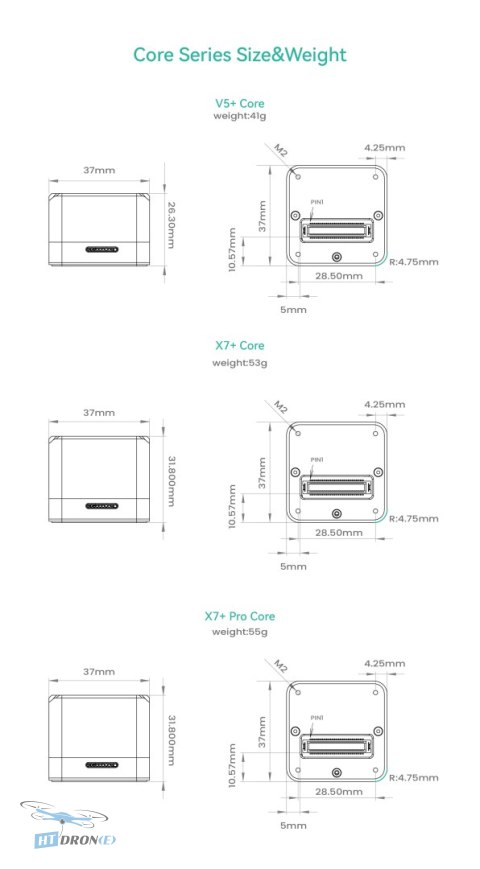

• Dimensions: 77 x 45.5 x 39 mm (19.5 mm for expansion board only)
• Weight: 101 g

Applications

The CUAV X7+ Pro is ideally suited for a wide range of professional applications including industrial drones, agricultural UAVs, mapping and surveying missions, inspection drones, and complex aerial robotics projects. Its robust design and advanced features ensure reliable operation in demanding environments.

Compatibility

This flight controller is designed for compatibility with ArduPilot firmware. It supports multiple receiver types (S.BUS/PPM/DSM) and offers extensive peripheral interfaces including 14 PWM outputs (supporting DShot), 2 GPS UART ports, 4 I2C buses, and 2 CAN buses. The modular design with an expansion board allows for custom configurations. Power is supplied via Power A/C (4.3-5.4V) or USB (4.75-5.25V), with servo line voltage supporting 0-36V.

FAQ

What makes the CUAV X7+ Pro ideal for industrial drones?

The CUAV X7+ Pro features industrial-grade sensors with minimal temperature drift and a powerful STM32H7 processor, ensuring high reliability and consistent performance critical for industrial applications. Its robust design and ArduPilot compatibility make it a top choice.

Can the CUAV X7+ Pro be customized for specific drone builds?

Yes, the CUAV X7+ Pro boasts a modular design that allows for the creation of custom carrier boards. This flexibility enables users to tailor the flight controller setup to their specific drone requirements and application needs.

What are the key sensor components in the CUAV X7+ Pro?

The CUAV X7+ Pro integrates multiple high-quality sensors, including ICM-20649, ADIS16470, and BMI088 for accelerometer and gyroscope functions, an RM3100 compass, and dual MS5611 barometers. It also features an ADIS16470+RM3100 for its precision industrial sensor.

What flight control software is compatible with the CUAV X7+ Pro?

The CUAV X7+ Pro is designed to run ArduPilot firmware exceptionally well. This ensures broad compatibility with a wide range of ground control software and accessories within the ArduPilot ecosystem.
