Caddx Eclipse 003SL Thermal Camera 320x240 Resolution for FPV & Mobile Monitoring

Introduction

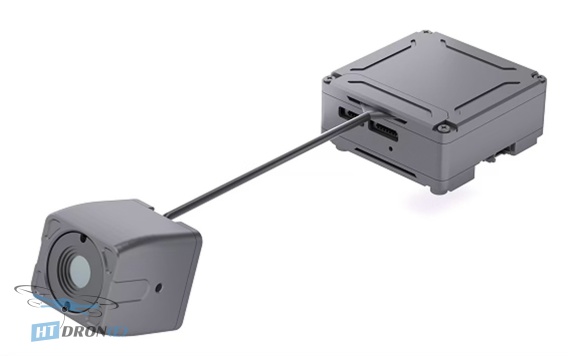

The Caddx Eclipse 003SL is a compact thermal imaging camera expertly designed for demanding FPV applications, mobile surveillance systems, and detailed inspection solutions. It boasts a resolution of 320x240 pixels and operates within the crucial 8-14 μm infrared spectrum, enabling highly accurate detection of temperature variations across diverse environmental conditions. This camera is your ideal choice for gaining critical thermal insights where visibility is paramount.

Key advantages

• High-resolution 320x240 px thermal imaging for detailed temperature analysis.
• Wide spectral range of 8-14 μm for effective detection in various conditions.
• Versatile dual CVBS and USB video outputs for flexible integration.
• High-quality F1.0 / 4 mm lens for excellent thermal sensitivity and field of view.
• Compact and lightweight design, perfect for FPV drones and mobile platforms.
• Broad Field of View (FOV) of 50°(H) × 37.2°(V) for comprehensive scene coverage.
• Ideal for FPV, industrial inspections, and mobile monitoring systems.
• Reliable performance for enhanced situational awareness and data collection.

Technical specifications

• Model: ECLIPSE 003SL
• Resolution: 320x240
• Wavelength Range: 8-14 μm
• Lens: F1.0 / 4 mm
• FOV: 50°(H) × 37.2°(V) × 62.3°(D)
• Video Output: CVBS + USB (dual output)
• Camera Dimensions: 19.5 × 19.5 × 20.8 mm
• Module (Box) Dimensions: 33.5 × 33.5 × 16.5 mm

Applications

The Caddx Eclipse 003SL is exceptionally versatile, finding its place in a wide array of applications. It is perfectly suited for FPV drones, enabling pilots to navigate and identify targets in low-visibility conditions. It is also invaluable for technical inspections, allowing for the detection of heat leaks, electrical faults, or mechanical issues. Furthermore, its compact form factor makes it ideal for mobile monitoring systems and various industrial applications where real-time thermal data is crucial for safety and efficiency.

Compatibility

This camera offers flexible integration thanks to its dual CVBS and USB output options. The CVBS output is compatible with standard FPV video transmitters and analog FPV goggles, while the USB output allows for direct connection to computers, DVRs, or other digital recording devices for detailed analysis and logging.

FAQ

What is the resolution of the Caddx Eclipse 003SL thermal camera?

The Caddx Eclipse 003SL thermal camera features a resolution of 320x240 pixels, providing detailed thermal imaging for various applications.

What are the main applications for the Caddx Eclipse 003SL?

This thermal camera is ideal for FPV drones, mobile surveillance systems, and technical inspections. Its compact size and dual output options make it versatile for many uses.

Does the Caddx Eclipse 003SL have both analog and digital video output?

Yes, the Caddx Eclipse 003SL offers dual video outputs: analog CVBS for traditional FPV systems and USB for digital connection to computers or recorders.

What is the spectral range of the Caddx Eclipse 003SL?

The camera operates in the 8-14 μm infrared spectrum, which is crucial for detecting temperature differences effectively in various environmental conditions.

Where can I buy the Caddx Eclipse 003SL thermal camera with fast delivery?

You can buy the Caddx Eclipse 003SL thermal camera at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
