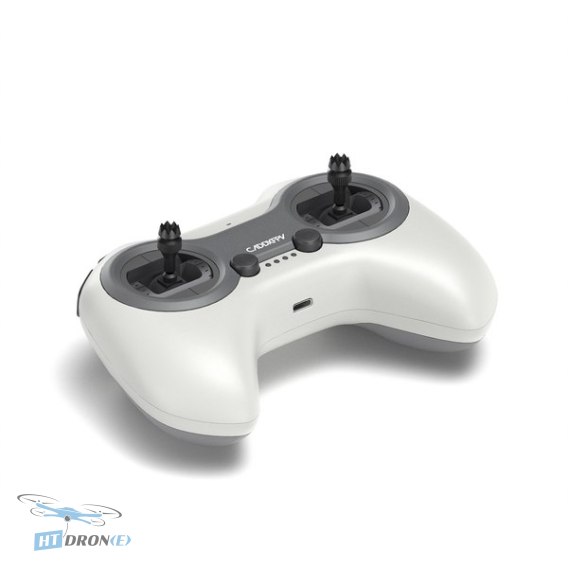

CaddxFPV Alink 10-Channel ELRS 2.4GHz Radio Controller for FPV Drones

Introduction

The CaddxFPV Alink is a highly capable, compact 10-channel radio controller designed for the demanding FPV and RC hobbyist. Featuring an integrated ELRS 2.4GHz module, it provides a robust and responsive control link, essential for precise maneuvering and reliable operation. Its ergonomic design and lightweight build make it comfortable for extended use, whether you're practicing on a simulator or engaging in real-world flights.

Key advantages

• Integrated ELRS 2.4GHz RF module for stable, low-latency control.
• Full compatibility with all ELRS 2.4GHz receivers for FPV and RC models.
• 10-channel support offers extensive control options for complex setups.
• CRSF protocol ensures rapid and dependable signal transmission.
• Direct USB Type-C connection for easy FPV simulator practice on PC.
• Intuitive controls with multiple switches and a scroll wheel for customization.
• Clear status feedback via integrated LEDs and buzzer.
• Convenient internal LiPo battery with USB-C charging.
• Lightweight and ergonomic design for comfortable, prolonged flight sessions.

Technical specifications

• Product Name: CADDXFPV Alink
• Certification: FCC IC (2BHG9-C0PJ-YKL19)
• Main Control Chip: AT32 F413RCT7
• RF Module: ELRS 2.4 GHz
• RF Protocol: CRSF
• Max RF Power: 100mW (20dBm)
• Channels: 10 (including 4 joystick channels)
• Joystick Type: Full bearing Hall sensor joystick assembly
• Function Switches: 1x latching button; 2x momentary buttons; 2x 3-position switches, 1x scroll wheel
• Status Indicators: 4x LEDs, buzzer
• Charging & Communication Interface: USB Type-C
• Battery: 1S 1000 mAh LiPo
• Max Charging Power: 5V / 1A / 3.5W
• Charging Time: Approx. 90 minutes
• Operating Voltage: DC 3.50V - 4.20V
• Dimensions: 158 x 108 x 58 mm
• Weight: 180 g ±5 g

Applications

The CaddxFPV Alink controller is ideal for FPV drone racing, freestyle flying, cinematic drone piloting, and general RC model control. Its simulator compatibility makes it a great tool for beginners to learn and practice flight techniques before taking to the skies.

Compatibility

Compatible with all FPV and RC models utilizing ELRS 2.4GHz receivers. Features a USB Type-C interface for simulator connection and charging.

FAQ

What is the CaddxFPV Alink controller used for?

The CaddxFPV Alink controller is a 10-channel radio transmitter designed for FPV drones and RC models. It features a built-in ELRS 2.4GHz module for reliable, low-latency control and can be used for both real flights and FPV simulator training via its USB-C connection.

What makes the CaddxFPV Alink suitable for FPV simulator training?

It offers a direct USB Type-C connection to a PC, allowing it to be used seamlessly with FPV simulator software. This feature makes it an excellent tool for practicing flight skills in a virtual environment before actual flight.

What is the range and latency of the CaddxFPV Alink controller?

The controller utilizes the ELRS 2.4GHz protocol, known for its stable control link and low latency, making it ideal for responsive FPV flying. While specific range figures depend on the receiver and environment, ELRS generally provides excellent performance.

Where can I buy the CaddxFPV Alink controller with fast delivery?

You can buy the CaddxFPV Alink controller at HTDRONE, our specialized FPV parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.

What type of joysticks does the CaddxFPV Alink controller use?

The CaddxFPV Alink controller is equipped with full bearing Hall sensor joystick assemblies. This type of joystick provides smooth, precise control and enhanced durability compared to traditional gimbals.
