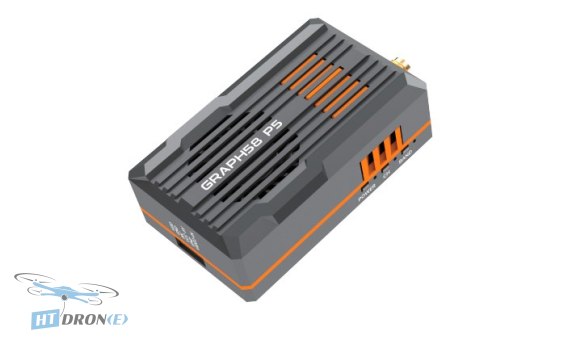

CaddxFPV GRAPH58 P5 5W VTX 4.9-6GHz FPV Video Transmitter for Long-Range Drones

Introduction

The CaddxFPV GRAPH58 P5 is a cutting-edge, high-performance FPV video transmitter engineered for demanding long-range drone flights and professional aerial applications. It provides a robust and stable video link, crucial for pilots who push the boundaries of flight distance and require clear, uninterrupted video feedback. This VTX is designed to integrate seamlessly into various FPV setups, offering flexibility and reliability.

Key advantages

• High-power video transmission ideal for extended FPV flights.
• Wide operating frequency range (4.9-6.0 GHz) for flexible channel selection.
• Stable signal performance minimizes interference for a clearer video feed.
• User-friendly configuration via onboard buttons or OSD control.
• Broad input voltage support (9-30V) ensures compatibility with diverse power systems.
• Robust construction suitable for freestyle, racing, and long-range drone builds.
• Multiple power output levels to adapt to various flight conditions and regulations.
• Standard mounting patterns for easy integration into custom drone frames.

Technical specifications

• Model: WN01-FP014
• Frequency: 4900~6000 MHz
• Working Frequency Band: 8
• Channels: 64
• Power Level: 4
• Maximum Transmit Power: 5W
• Operation Mode: Button control, OSD control support
• Output Power: 25mW, 400mW, 5W at 12V/1300mA
• Supported Batteries: 3S~6S
• Input Voltage: 9-30V DC
• Antenna Interface: SMA
• RF Impedance: 50 Ω
• Mounting Hole Distance: 20 x 20 mm; 25.5 x 25.5 mm
• Dimensions: 37 x 70 x 20 mm
• Weight: 52.5 g

Applications

This VTX is perfectly suited for FPV drone enthusiasts and professionals involved in long-range exploration, freestyle flying, competitive FPV racing, and aerial cinematography where a reliable, high-quality video signal is paramount.

Compatibility

The CaddxFPV GRAPH58 P5 supports a wide input voltage range (9-30V DC, compatible with 3S-6S batteries) and features standard SMA antenna interface. It includes versatile mounting options with hole distances of 20x20mm and 25.5x25.5mm, ensuring compatibility with a broad range of FPV drone frames.

FAQ

What is the maximum transmission power of the CaddxFPV GRAPH58 P5 VTX?

The CaddxFPV GRAPH58 P5 VTX offers a maximum transmit power of 5W. This high output is ideal for achieving stable video links over long distances, making it suitable for advanced FPV applications.

What frequency range does the CaddxFPV GRAPH58 P5 VTX operate on?

This VTX operates on the 4.9-6.0 GHz frequency range, providing 64 channels for flexible channel selection and minimizing interference. This wide band ensures compatibility and performance in various FPV environments.

How can I control the settings on the CaddxFPV GRAPH58 P5 VTX?

The CaddxFPV GRAPH58 P5 VTX supports both button control and OSD (On-Screen Display) configuration. This allows pilots to easily adjust settings like power output and channels directly from their goggles or via the flight controller setup.

What is the voltage compatibility for the CaddxFPV GRAPH58 P5 VTX?

The VTX is compatible with a wide input voltage range of 9-30V DC, supporting batteries from 3S to 6S. This broad compatibility ensures it can be easily integrated into most FPV drone builds.

Where can I buy the CaddxFPV GRAPH58 P5 5W VTX with fast delivery?

You can order the CaddxFPV GRAPH58 P5 5W VTX from HTDRONE, your specialized FPV parts store. We offer fast and reliable delivery within Poland and worldwide shipping via DHL, ensuring you get your FPV gear quickly.
