CaddxFPV HD640 Thermal FPV Camera for Drones - 640x512 Resolution, 50fps

Introduction

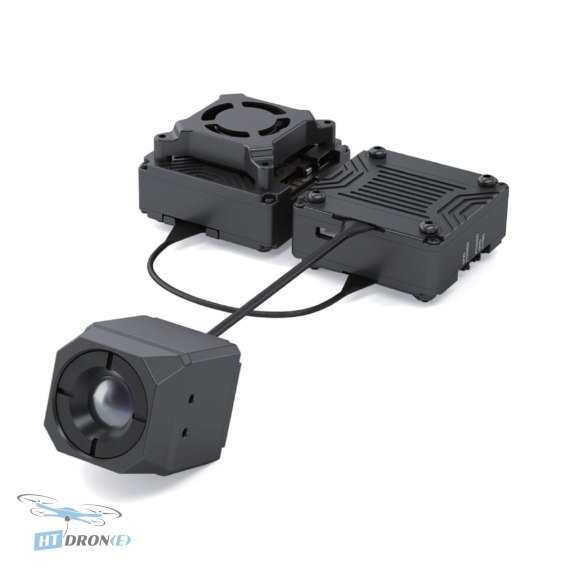

The CaddxFPV HD640 is a cutting-edge thermal imaging camera specifically engineered for FPV and UAV applications. It provides pilots with high-resolution thermal data, enabling clear and detailed visualization in challenging conditions, including low light and total darkness. This camera is an essential tool for FPV enthusiasts and professionals who require precise, real-time thermal information during flight operations.

Key Advantages

• High-resolution 640x512 thermal sensor for exceptional detail.
• Fast 50fps frame rate ensures smooth, real-time thermal video feedback.
• Clear imaging even in complete darkness, enhancing situational awareness.
• Wide field of view (66° Diagonal) for comprehensive environmental coverage.
• Low power consumption (<1.5W) for efficient drone operation.
• MIPI-CSI interface compatible with Walksnail Avatar systems.
• Low latency (average 20ms) for responsive FPV flying.
• Enhanced image quality processing for superior thermal perception.

Technical Specifications

• Model: HD640
• Sensor: Uncooled Vanadium Oxide
• Resolution: 640 x 512
• Lens: F1.0/9.1 mm
• Field of View: 48.3° (H) * 38.6° (V) * 66°(D)
• Frame Rate: 50 fps
• Power Consumption: <1.5 W
• Video Output: PAL
• Power Supply Voltage: 9 V~24 V
• Operating Temperature: -20°C~60°C
• Interface: MIPI-CSI (Walksnail Avatar)
• Latency: Average 20 ms
• Image Quality: Image quality enhancement
• VTX Model: Avatar GT VTX
• Communication Frequency: 5.725-5.850 GHz
• Transmitter Power (EIRP): FCC: <30 dBm, max.: 33 dBm; CE: <14 dBm; SRRC: <20 dBm; MIC: <25 dBm
• Recording: 1080p/720p
• Channels: 8
• Wide Input Voltage Range: 11.1~25.2 V
• OSD: Canvas mode
• Latency (VTX): Average 22 ms
• Antenna: 2 (IPEX)

Applications

The CaddxFPV HD640 thermal camera is perfect for a wide range of applications including FPV racing, freestyle flying, aerial inspection, search and rescue operations, wildlife observation, and any scenario requiring thermal imaging capabilities on a drone. Its performance in low-light and dark conditions makes it invaluable for night flights.

Compatibility

This camera is compatible with systems utilizing the MIPI-CSI interface, notably the Walksnail Avatar system. It operates on a wide input voltage range (9V-24V for the camera, 11.1V-25.2V for the VTX) and is designed to integrate with FPV drone setups. The included Avatar GT VTX supports 1080p/720p recording.

FAQ

What is the main advantage of the CaddxFPV HD640 thermal camera for FPV drones?

The primary advantage is its ability to provide a high-resolution 640x512 thermal image, allowing pilots to see clearly in complete darkness or low-light conditions. This significantly enhances situational awareness and safety during flights.

What resolution and frame rate does the CaddxFPV HD640 offer?

The CaddxFPV HD640 features a thermal resolution of 640x512 pixels and operates at a fast frame rate of 50 frames per second (fps). This ensures a detailed and smooth thermal video feed for real-time monitoring.

Is the CaddxFPV HD640 compatible with Walksnail Avatar systems?

Yes, the CaddxFPV HD640 camera uses a MIPI-CSI interface, making it compatible with Walksnail Avatar digital FPV systems. This allows for seamless integration into compatible drone builds.

What are the recommended applications for the CaddxFPV HD640 thermal camera?

This thermal camera is ideal for FPV racing, freestyle, night flying, search and rescue operations, wildlife observation, and any aerial task requiring the detection of heat signatures in challenging visibility conditions.

Where can I buy the CaddxFPV HD640 thermal camera with fast delivery?

You can order the CaddxFPV HD640 thermal camera from HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable international delivery via DHL.
