CaddxFPV Nebula Pro Nano Vista Kit FPV HD Digital Video Transmitter System (8cm Cable)

Introduction

The Caddx Nebula Pro Nano Vista Kit represents the next evolution in FPV digital video transmission, brought to you by CaddxFPV and fully authorized by DJI. This advanced system is engineered for drone enthusiasts seeking unparalleled visual clarity and reliable long-range performance. It seamlessly integrates a high-quality FPV camera with a powerful digital video transmitter, solving the need for sharp, low-latency video feedback during complex aerial maneuvers and long-distance flights.

Key Advantages

• DJI Authorized digital FPV transmission system.
• High-definition 1080p video support (outputting at 720p).
• Switchable aspect ratios: 16:9 and 4:3 for versatile viewing.
• Extended transmission range up to 4km (FCC/SRRC).
• Low latency for responsive flight control (21-28 ms in low-latency mode).
• Compact and lightweight Nebula Pro Nano camera (3.5g).
• Powerful Vista unit with multiple power output options (25mW-700mW).
• Compatible with popular flight controllers (F3/F4/F7).

Technical Specifications

• Camera Model: Nebula Pro Nano
• Image Sensor: 1/3 inch CMOS
• Field of View: 150°(D); 122°(H); 93°(V)
• Aspect Ratio: 16:9 and 4:3 (switchable)

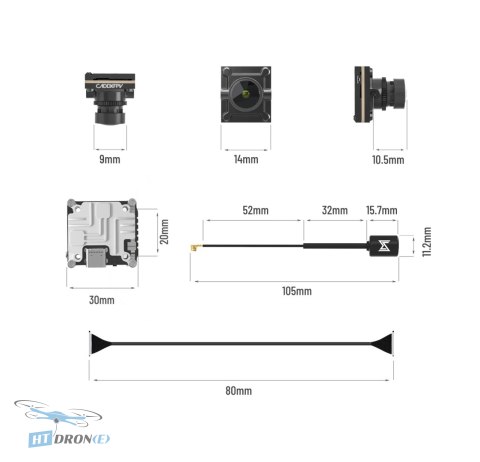

• Camera Dimensions: 16.5x16x14 mm
• Resolution: 720p/120fps
• Lens Size: 2.1mm f/2.1
• Cable Length: 8cm
• Aperture: F/2.0
• Camera Weight: 3.5 g
• Vista Unit Dimensions: 30x29x13mm
• Vista Unit Weight: 20.8 g (unit only)
• Min. Latency (end-to-end): 21-28 ms (720p 120fps Low-Latency Mode)
• Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm / CE: <14dBm
• Max. Transmission Distance: FCC/SRRC: 4km / CE: 0.7km
• Power Output: 25mW / 200mW / 500mW / 700mW
• Flight Controller Support: F3 / F4 / F7
• High-Quality Mode Latency: 30-40ms (720p 60fps)
• Interface: USB-C, Ipex3, 3-in-1 port
• Operating Frequency: 5.725-5.850 GHz
• Input Voltage: 7.4-26.4 V

Applications

This FPV HD video kit is ideal for a wide range of applications including competitive FPV racing, freestyle flying, long-range exploration, cinematic FPV, and general drone hobbyist use. Its high-definition digital feed makes it suitable for pilots who demand precise visual feedback for critical maneuvers and immersive flight experiences.

Compatibility

The CaddxFPV Nebula Pro Nano Vista Kit is designed to work seamlessly with DJI FPV Goggles. It supports common flight controllers such as F3, F4, and F7 series. The Vista unit features a USB-C interface for configuration and firmware updates, alongside a 3-in-1 port for easy integration with your flight stack.

FAQ

What is the CaddxFPV Nebula Pro Nano Vista Kit?

The CaddxFPV Nebula Pro Nano Vista Kit is a DJI-authorized digital FPV transmission system. It includes a Nebula Pro Nano camera and a Vista video transmitter unit, providing high-definition 720p video at 120fps with low latency for FPV drones.

What is the maximum transmission range of this FPV kit?

The maximum transmission distance for the CaddxFPV Nebula Pro Nano Vista Kit is up to 4km under FCC/SRRC regulations and up to 0.7km under CE regulations. This ensures reliable video feed even on long-range flights.

Is the CaddxFPV Nebula Pro Nano Vista Kit compatible with DJI FPV Goggles?

Yes, this kit is fully compatible with DJI FPV Goggles, offering a seamless digital FPV experience. It also supports popular flight controllers like F3, F4, and F7 series.

What are the key technical specifications of the camera?

The Nebula Pro Nano camera features a 1/3 inch CMOS sensor, a 150° FOV, and outputs 720p video at 120fps. It has a compact size of 16.5x16x14 mm and weighs only 3.5g, with an 8cm connection cable.

Where can I buy the CaddxFPV Nebula Pro Nano Vista Kit with fast delivery?

You can buy the CaddxFPV Nebula Pro Nano Vista Kit at HTDRONE. We offer fast delivery within Poland and reliable shipping options to Ukraine via Nova Poshta, as well as worldwide shipping via DHL for international customers.
