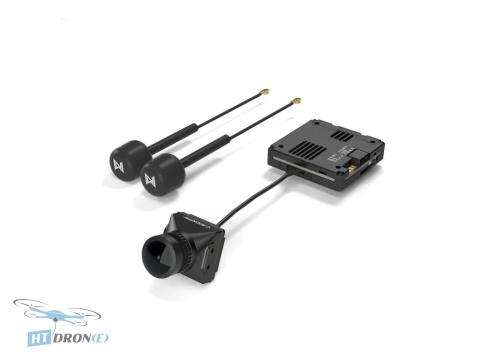

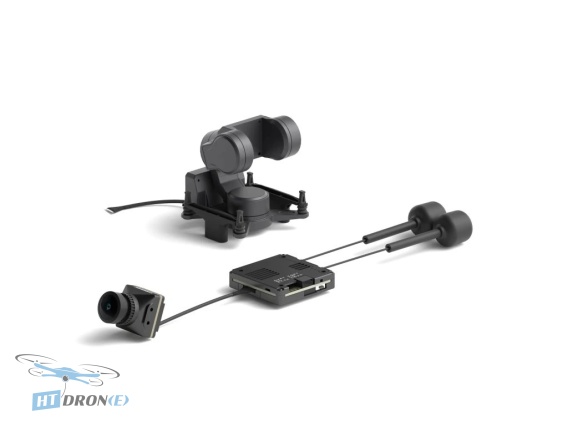

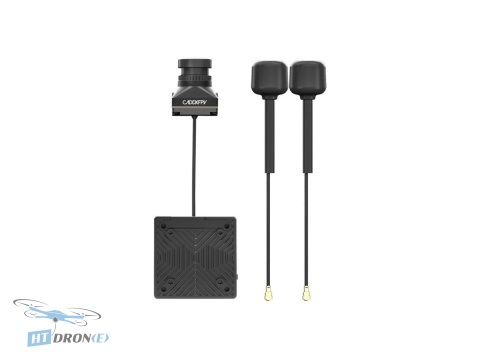

CaddxFPV Walksnail Avatar Pro Kit GM3 Gimbal Dual Antennas FPV System

Introduction

The Walksnail Avatar HD Pro System, integrated into the Pro Kit with GM3 Gimbal, redefines FPV aerial cinematography. This advanced digital FPV system delivers breathtaking 1080p resolution at up to 120fps, ensuring crystal-clear visuals with minimal delay. Its standout feature is the Sony Starvis II sensor, providing unparalleled low-light performance, making night flights as clear as day. Combined with the new CaddxFPV GM3 three-axis gimbal, it offers professional-grade video stabilization for incredibly smooth footage, even during aggressive maneuvers. This kit is designed for serious FPV enthusiasts and professionals who demand top-tier image quality and system stability.

Key Advantages

• Ultra-low latency digital FPV transmission with H.265 codec.
• Stunning 1080p 60fps or 720p 120fps video recording capabilities.
• Exceptional night vision performance powered by a Sony Starvis II 1/1.8" sensor.
• Integrated three-axis GM3 gimbal for professional-grade video stabilization.
• Gyroflow compatibility for advanced post-production stabilization.
• 32GB onboard storage for local video recording at up to 1080p.
• Dual antenna design significantly improves signal stability and transmission range.
• Wide input voltage range (6-25.2V) for broad compatibility with FPV setups.

Technical Specifications

Camera

• Model: Avatar HD Pro Camera
• Sensor: Sony Starvis II 1/1.8"
• Resolution: 1080p / 60 fps, 720p / 120 fps, 720p / 60 fps, 1080p / 120 fps compatibility
• Aspect Ratio: 16:9, 4:3
• Lens: 8 MP
• Field of View (FOV): 160°
• Aperture: F1.6
• Shutter: Rolling Shutter
• Minimum Illumination: 0.00001 Lux
• Weight: 9.5 g
• Dimensions: 19 × 19 × 24 mm
• Coaxial Cable: 140 mm

VTX

• Model: Avatar V2 Pro Module (Dual Antenna)
• Frequency: 5.725-5.850 GHz
• Transmitter Power (EIRP): FCC: <30 dBm, CE: <14 dBm, SRRC: <20 dBm, MIC: <25 dBm
• Interfaces: JST1.0×4 (Power), JST0.8×6 (USB)
• Mounting Holes: 25.5×25.5 mm; 20×20 mm
• Dimensions: 33.5 × 33.5 × 10.5 mm
• Memory: 32 GB
• Recording: 1080p / 720p
• Weight: 15.4 g
• Operating Temperature: -20°C to 40°C
• Channels: 8
• Input Voltage: 6-25.2 V
• Supported FC: Betaflight, INAV, Fettec, ArduPilot, KISS
• OSD: Canvas mode
• Latency: Average 22 ms
• Antennas: 2 × IPEX

Avatar V2 Antenna

• Polarization: LHCP
• Frequency Band: 5600-6000 MHz
• Gain: 1.9 dBi
• VSWR: ≤ 1.5
• Impedance: 50 Ω
• Connector: IPEX-1
• Dimensions: R15 × 45 mm (without cable)
• Weight: 2 g

Applications

This advanced FPV kit is perfect for professional aerial videography, cinematic FPV flying, drone racing requiring high-definition feeds, and any application demanding superior image quality and stable flight performance, especially in low-light conditions.

Compatibility

The VTX module supports a wide input voltage range of 6-25.2 V and is compatible with popular flight controllers such as Betaflight, INAV, Fettec, ArduPilot, and KISS. Mounting options include 25.5×25.5 mm and 20×20 mm holes. The system uses JST connectors for power and USB interfaces.

FAQ

What makes the Walksnail Avatar Pro Kit with GM3 Gimbal ideal for cinematic FPV flights?

The kit's standout feature is the integrated three-axis GM3 gimbal, providing exceptional mechanical stabilization for incredibly smooth video footage. Combined with the 1080p resolution and Sony Starvis II sensor's low-light capabilities, it's perfect for capturing professional-quality cinematic shots, even in challenging lighting conditions.

What are the key video and latency specifications of the Walksnail Avatar Pro Kit?

This system offers high-quality digital FPV transmission with resolutions up to 1080p at 60fps or 720p at 120fps. It utilizes the H.265 codec for efficient streaming and boasts an average latency of just 22ms, ensuring a responsive and immersive flying experience.

Does the Walksnail Avatar Pro Kit support night flying?

Yes, the camera features a Sony Starvis II 1/1.8" sensor, which is specifically designed for outstanding low-light performance. This allows for clear and detailed video capture even in very dark conditions, comparable to daylight visibility.

What flight controllers are compatible with the Walksnail Avatar V2 Pro Module?

The Avatar V2 Pro Module is compatible with a wide range of popular flight controllers, including Betaflight, INAV, Fettec, ArduPilot, and KISS. This ensures flexibility when integrating the system into your custom FPV drone build.

Where can I buy the Walksnail Avatar Pro Kit with fast delivery to Ukraine?

You can order the Walksnail Avatar Pro Kit with GM3 Gimbal from HTDRONE, our specialized FPV store based in Poland. We offer fast and reliable delivery to Ukraine via Nova Poshta (Нова Пошта).
