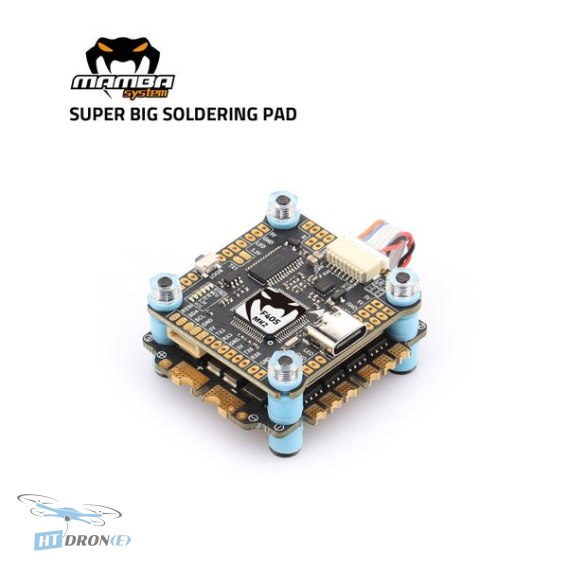

Diatone MAMBA F405 MK2 + 55A BLS FPV Drone Stack

Introduction

The Diatone MAMBA F405 MK2 + 55A BLS Stack is a premium flight control solution designed by Diatone for demanding FPV drone applications. This integrated stack combines the F405 MK2 flight controller with a powerful 55A BLS electronic speed controller, offering a reliable and efficient core for building high-performance FPV racing or freestyle drones. It's engineered to provide stable flight characteristics and robust power handling, making it an excellent choice for drone builders looking for a dependable and effective system.

Key advantages

• Integrated Flight Controller (FC) and Electronic Speed Controller (ESC) for a clean build.
• F405 MK2 FC with ICM-42688 gyroscope ensures high precision and flight stability.
• Powerful 55A ESC provides smooth and efficient speed control for demanding motors.
• Wide input voltage range supporting 3S to 6S LiPo batteries for versatile configurations.
• Onboard Blackbox with 16MB of memory for flight data logging and analysis.
• Multiple UARTs and receiver support (CRSF/SBUS/IBUS/DSM) for easy integration.
• Dedicated ports for Air Unit and Buzzer for enhanced functionality.
• Built-in BECs (3.3V, 5V, 9V) simplify power distribution for onboard components.

Technical specifications

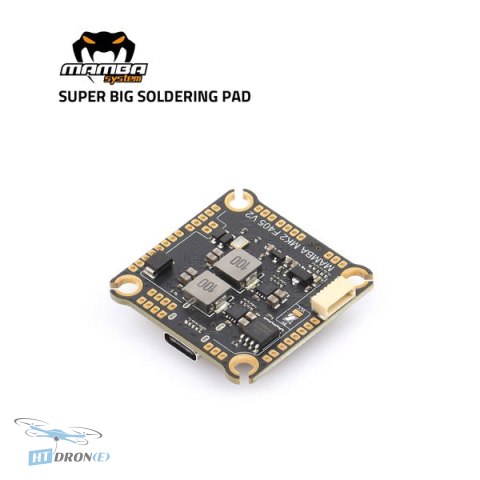

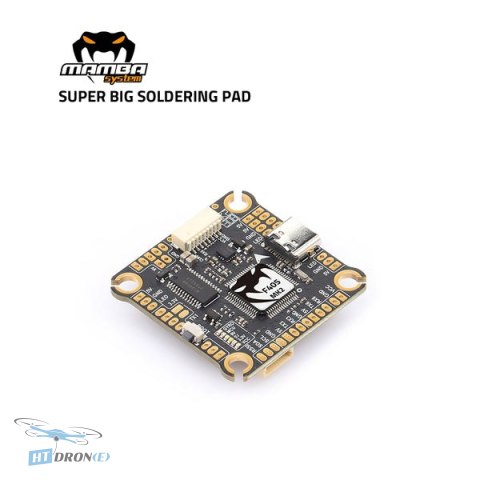

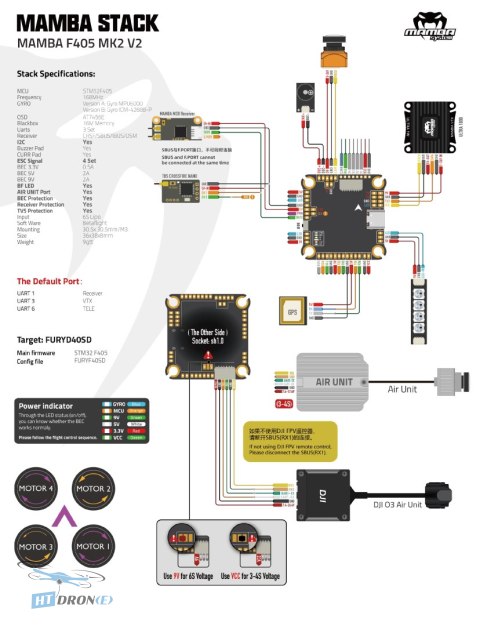

• FC MAMBA F405 MK2 V2
• MCU: STM32F405
• Frequency: 168 MHz
• Gyroscope: ICM-42688-P
• OSD: AT7456E
• Blackbox: 16M memory
• UARTs: 3 sets
• Receiver: CRSF/SBUS/IBUS/DSM
• 12C: Yes
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 4 sets
• BEC 3.3V: 0.5A
• BEC 5V: 2A
• BEC 9V: 2A
• BF LED: Yes
• AIR UNIT Port: Yes
• BEC Protection: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• Input: 6S Lipo
• Firmware: Betaflight
• Mounting: 30.5x30.5mm/M3
• Size: 36x38x8mm

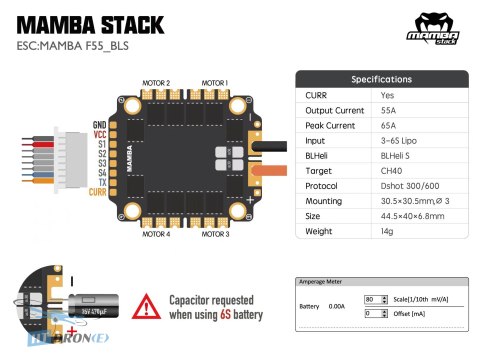

• ESC MAMBA F55_BLS
• CURR: Yes
• Output Current: 55A
• Peak Current: 65A
• Input: 3-6S Lipo
• BLHeli: BLHeli S
• Target: CH40
• Protocol: Dshot 300/600
• Mounting: 30.5x30.5mm, Ø 3
• Size: 44.5x40x6.8 mm
• Weight: 14g

Applications

This FPV stack is perfectly suited for building custom FPV racing drones, freestyle quadcopters, and high-performance UAVs. Its robust design and reliable components make it ideal for pilots who push their machines to the limit, requiring precise control and ample power for aggressive maneuvers and cinematic flights.

Compatibility

The Diatone MAMBA F405 MK2 + 55A BLS Stack is designed for compatibility with 3S to 6S LiPo batteries. It supports various receiver protocols including CRSF, SBUS, IBUS, and DSM. The standard 30.5x30.5mm mounting pattern ensures compatibility with most FPV frames, and it features dedicated ports for FPV Air Units and buzzers.

FAQ

What is the Diatone MAMBA F405 MK2 + 55A BLS Stack?

The Diatone MAMBA F405 MK2 + 55A BLS Stack is an integrated flight controller (FC) and electronic speed controller (ESC) unit designed for FPV drones. It provides the core electronics for flight control and motor management, offering a reliable solution for building custom FPV aircraft.

What is the maximum battery voltage supported by this FPV stack?

This FPV stack supports a wide input voltage range, specifically from 3S to 6S LiPo batteries. This versatility allows it to be used in various FPV drone configurations, from smaller freestyle builds to larger, more powerful racing drones.

What are the key features of the F405 MK2 flight controller?

The F405 MK2 flight controller includes an STM32F405 MCU running at 168 MHz, an ICM-42688-P gyroscope for precise flight stabilization, 16MB of Blackbox memory for flight logging, multiple UARTs for peripheral connections, and support for various receiver protocols like CRSF and SBUS.

What is the continuous current rating of the MAMBA F55 BLS ESC?

The MAMBA F55 BLS ESC included in this stack has a continuous output current rating of 55A and a peak current rating of 65A. It is compatible with BLHeli_S firmware and supports Dshot 300/600 protocols, ensuring efficient and responsive motor control.
