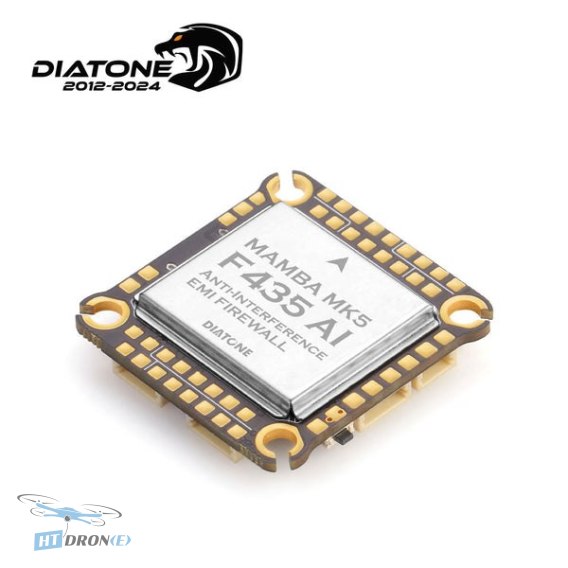

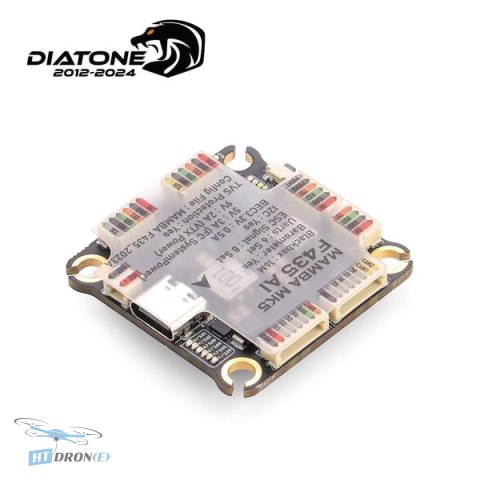

Diatone MAMBA F435 AI Flight Controller 30.5MM/M3 AT32F435 288MHz ICM-42688-P Gyro

Introduction

The Diatone MAMBA F435 AI Flight Controller is a high-performance component designed for advanced FPV drone builds. It integrates a powerful AT32F435 microcontroller, offering superior processing capabilities for complex flight operations and custom setups. This FC is an excellent choice for pilots seeking precision, reliability, and advanced features for racing, freestyle, or cinematic FPV flying.

Key advantages

• Powerful AT32F435 MCU running at a high 288 MHz frequency for faster processing.
• Integrated ICM-42688-P gyroscope for smooth and stable flight control.
• Ample 16MB Flash memory for Blackbox logging to analyze flight data.
• Multiple UART interfaces (5 sets) for versatile peripheral connections.
• Onboard OSD for real-time flight information display.
• Comprehensive BEC outputs (3.3V, 5V, 12V) to power various components.
• Robust power input support for 4~6S LiPo batteries.
• Designed with a standard 30.5mm mounting pattern and M3 screws for easy installation.

Technical specifications

• Product: F435 AI Flight Controller
• Mounting Size: 30.5MM/M3
• MCU: AT32F435
• Frequency: 288 MHz
• Gyroscope: ICM-42688-P
• Target: MAMBA F435_2023A
• OSD: Yes
• Blackbox: 16MB Flash Memory
• Barometer: SPL06
• UARTs: 5 sets
• I2C: Yes
• RSSI: No
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 8 sets
• ESC Software: Dshot300/600
• ESC Telemetry: Yes
• Power Diode: Yes
• LED Controller: BF LED
• Air Unit Port: Yes
• CAM2 Port: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• BEC: 3.3V 0.5A & 5V 3A & 12V 2A
• Input Voltage: 4~6S LiPo (14.8~25.2V)
• Power Connectors: 8pin sh1.0 x1, AIR UNIT sh1.0 x1

Applications

This flight controller is ideally suited for building high-performance FPV drones for racing, freestyle aerial acrobatics, professional aerial photography, and demanding UAV applications. Its robust specifications make it suitable for both competitive pilots and enthusiasts looking for a reliable core for their custom builds.

Compatibility

The MAMBA F435 AI FC is compatible with 4~6S LiPo batteries, offering flexibility in power choices. It features standard 30.5mm mounting holes for easy integration into most FPV drone frames. The inclusion of multiple UARTs and dedicated ports for air units and cameras ensures broad compatibility with popular FPV components and systems.

FAQ

What is the main advantage of the Diatone MAMBA F435 AI Flight Controller?

The Diatone MAMBA F435 AI Flight Controller's main advantage is its powerful AT32F435 MCU operating at 288 MHz, combined with the reliable ICM-42688-P gyroscope, offering superior processing power and flight stability for demanding FPV applications.

What is the mounting size and input voltage for the MAMBA F435 AI FC?

The MAMBA F435 AI FC features a standard 30.5mm mounting size with M3 screw holes for easy installation. It supports a wide input voltage range of 4~6S LiPo batteries (14.8V to 25.2V).

Does the Diatone MAMBA F435 AI FC have Blackbox memory?

Yes, the Diatone MAMBA F435 AI Flight Controller is equipped with 16MB of Flash memory for Blackbox logging, allowing you to record and analyze crucial flight data for tuning and troubleshooting.

Where can I buy the Diatone MAMBA F435 AI Flight Controller with fast delivery?

You can buy the Diatone MAMBA F435 AI Flight Controller at HTDRONE, your specialized FPV drone parts store. We offer fast international delivery via DHL. Check our shop for the best deals!

What are the available BEC outputs on the MAMBA F435 AI FC?

The MAMBA F435 AI Flight Controller provides multiple BEC outputs to power your components: 3.3V at 0.5A, 5V at 3A, and 12V at 2A, ensuring compatibility with a wide range of FPV gear.
