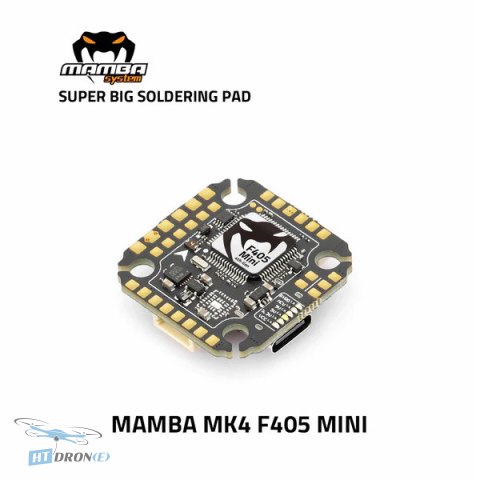

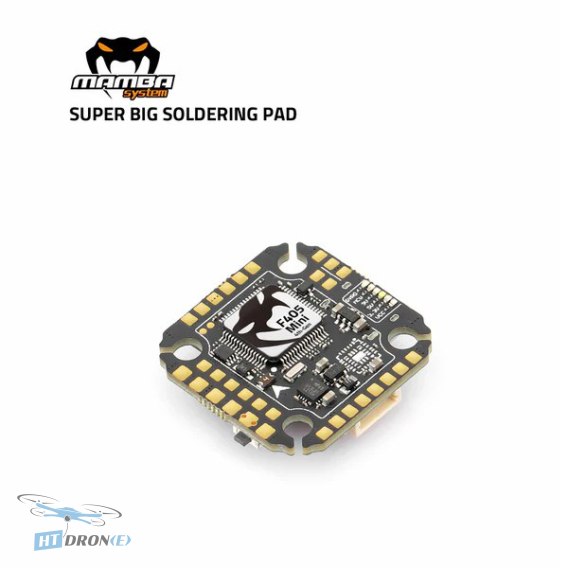

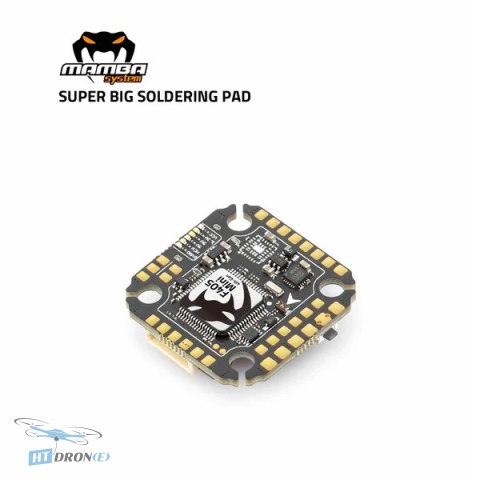

Diatone MAMBA MK4 F405 MINI MPU6000 FPV Drone Flight Controller

Introduction

The Diatone MAMBA MK4 F405 MINI Flight Controller is a high-performance component designed for FPV drone enthusiasts and builders. It integrates an STM32F405 MCU running at 168MHz and a reliable MPU6000 gyro, offering a stable and responsive flight experience. This FC is engineered to handle demanding FPV applications, providing pilots with the control and data logging capabilities needed for competitive racing and freestyle flying.

Key Advantages

• Powerful Processing: Equipped with a 168MHz STM32F405 MCU for fast and efficient flight control calculations.
• Stable Gyro: Utilizes the MPU6000 gyro for accurate and reliable flight data, even under high stress.
• Ample Blackbox Storage: Features 16MB of flash memory for extensive blackbox logging, crucial for tuning and analysis.
• Multiple UARTs: Offers 6 sets of UARTs, providing ample connectivity for various peripherals like GPS, receivers, and VTX control.
• Integrated OSD: Built-in On-Screen Display (OSD) for real-time flight information directly on your video feed.
• Comprehensive Protection: Includes Receiver Protection, BEC Protection, and TVS Protection for enhanced durability and safety.
• Versatile Power Input: Supports 3-6S LiPo batteries (12.6V-25.2V), offering flexibility for different power setups.
• Compact Mounting: Designed with a 20mm mounting pattern and M2/M3 compatibility for easy integration into various FPV drone frames.

Technical Specifications

• MCU: STM32F405, 168MHz
• Gyro: MPU6000
• Target: MAMBA F405_2022A
• OSD: Yes
• Blackbox: 16MB Flash Memory
• Barometer: SPL06
• UARTs: 6 Set
• I2C: Yes
• F.Port: Yes
• RSSI: No
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 6 sets
• ESC Protocol: Dshot300/600
• ESC Telemetry: Yes
• Power LED: Yes
• LED Controller: BF LED
• Air Unit Port: Yes
• WIFI: No
• VTX Switch: Yes
• Receiver Protection: Yes
• BEC Protection: Yes
• TVS Protection: Yes
• BEC Output: 3.3V 0.5A & 5V 2.5A & 9V 2A
• Input Voltage: 3~6S LiPo (12.6V~25.2V)
• Mounting Size: 20mm, M2/M3
• Power Connectors: 8pin sh1.0 x1, AIR UNIT sh1.0 x1

Applications

This flight controller is ideal for building and upgrading FPV racing drones, freestyle quadcopters, and professional UAV systems. Its robust features make it suitable for pilots who demand high performance, extensive logging capabilities, and reliable operation in various flight conditions.

Compatibility

The MAMBA MK4 F405 MINI FC is compatible with a wide range of FPV components. It supports 3-6S LiPo input, features multiple UART ports for receivers and VTXs, and includes dedicated pads for ESC telemetry and buzzer. The 20mm mounting standard ensures compatibility with many popular FPV frames. Power outputs include 3.3V, 5V, and 9V BECs.

FAQ

What is the Diatone MAMBA MK4 F405 MINI FC?

The Diatone MAMBA MK4 F405 MINI FC is a flight controller designed for FPV drones. It features an STM32F405 MCU, MPU6000 gyro, and 16MB of flash memory for blackbox logging, making it a robust choice for FPV enthusiasts.

What are the key technical specifications of the MAMBA MK4 F405 MINI?

Key specifications include an STM32F405 168MHz MCU, MPU6000 gyro, 16MB flash memory, 6 UART sets, 3-6S LiPo input, and a 20mm mounting size. It also includes integrated OSD and various protection features.

What kind of drones is the Diatone MAMBA MK4 F405 MINI FC suitable for?

This flight controller is ideal for FPV racing drones and freestyle quadcopters. Its powerful processing, ample logging capabilities, and support for 6S batteries make it suitable for demanding FPV applications.

Where can I buy the Diatone MAMBA MK4 F405 MINI FC?

You can buy the Diatone MAMBA MK4 F405 MINI FC at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Does the MAMBA MK4 F405 MINI FC support FPV system integration?

Yes, the FC includes an Air Unit port, VTX switch, and multiple UARTs, ensuring excellent compatibility with various FPV systems and components for seamless integration.
