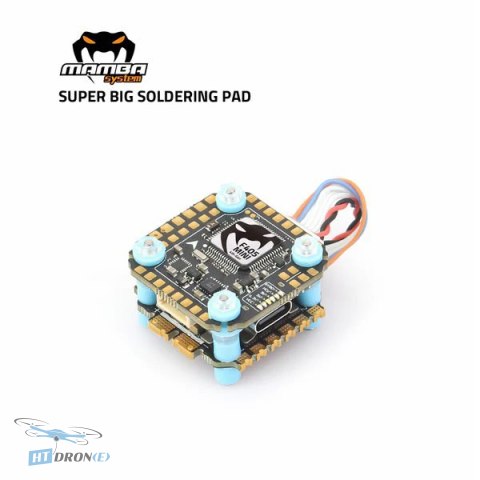

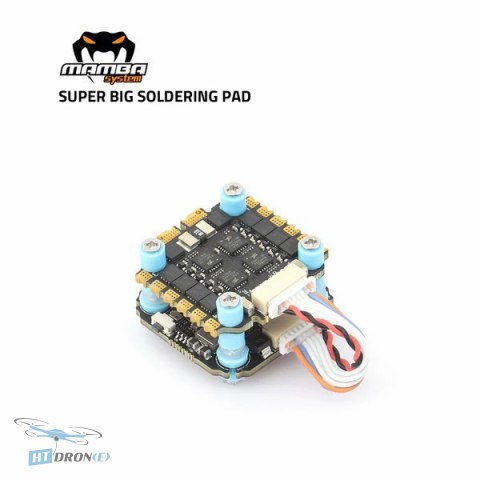

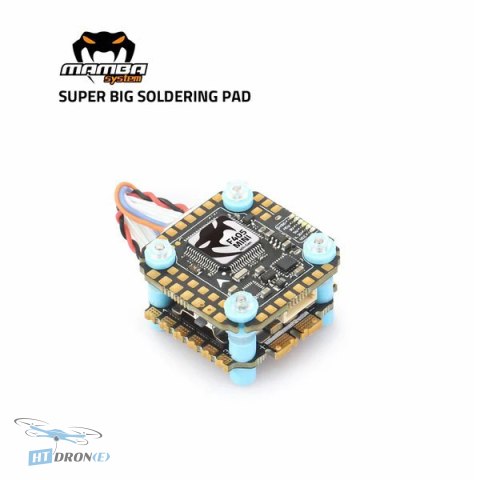

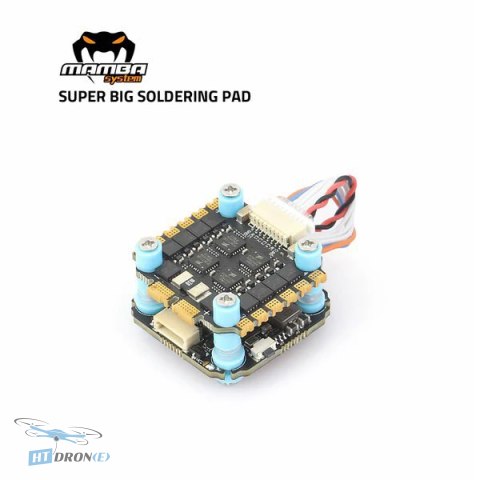

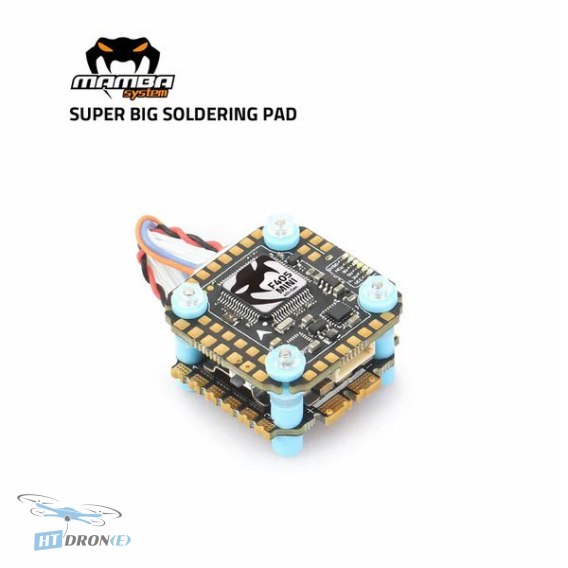

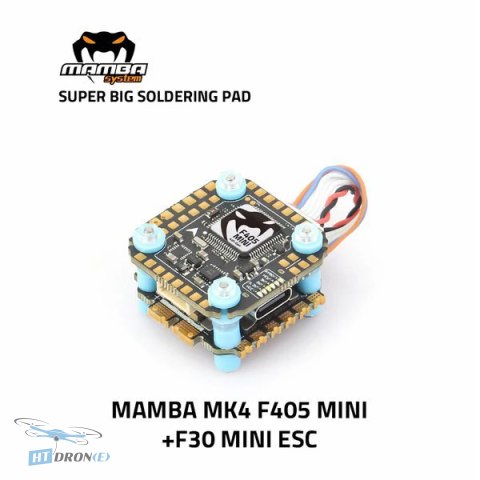

Diatone MAMBA MK4 F405MINI 30A 3-5S 8bit FPV Drone Stack System

Introduction

The Diatone MAMBA MK4 F405MINI 30A Stack is a premium flight control and Electronic Speed Controller (ESC) system designed for FPV drones. This integrated stack provides a compact and powerful solution for pilots looking to build or upgrade their racing, freestyle, or cinematic FPV rigs. With its robust components and thoughtful design, the MAMBA MK4 F405MINI ensures reliable performance and precise control in various flight conditions.

Key advantages

• High-performance STM32F405 MCU for fast processing
• MPU6000 Gyro for stable flight control
• Integrated 30A ESCs, capable of handling bursts up to 40A
• Supports 3-5S Lipo batteries for versatile power options
• Built-in OSD for convenient in-flight telemetry display
• Multiple UART ports for extensive peripheral connectivity
• Includes essential features like F.Port, buzzer pad, and LED control
• Durable construction with TVS protection for enhanced reliability

Technical specifications

• FC MCU: 168MHz STM32F405
• FC GYRO: MPU6000
• FC Target: MAMBA F405_2022A
• FC OSD: Yes
• FC Blackbox: 16MB Flash Memory
• FC Barometer: SPL06
• FC Uarts: 6 Sets
• FC I2C: Yes
• FC F.Port: Yes
• FC RSSI: No
• FC Buzzer Pad: Yes
• FC CURR Pad: Yes
• FC ESC Signal: 6 Sets
• FC ESC Soft: Dshot300/600
• FC ESC Telemetry: Yes
• FC Power Diode: Yes
• FC LED Controller: BF LED
• FC Air Unit Port: Yes
• FC WIFI: No
• FC VTX Switch: Yes
• FC Receiver Protection: Yes
• FC TVS Protection: Yes
• FC BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
• FC Input Voltage: 3~6S Lipo (12.6~25.2V)
• FC Mounting Size: 20mm, M2/M3
• ESC Model: MAMBA F30 MINI
• ESC Input Voltage: 3~5S Lipo (12.6V~21V)
• ESC Continuous Current: 30A x 4
• ESC Burst Current: 40A (10S)
• ESC BEC: No
• ESC Target: BLHeli_S CH40
• ESC SOFT: Dshot300/600
• ESC TVS Protection: Yes
• ESC Mounting Size: 20mm, M2
• Power Supply: 470uF/35V capacitor, 8pin sh1.0 connectors, AIR UNIT sh1.0 connectors, 18AWG 60mm wires, AMASS Original XT30 connector

Applications

This Diatone MAMBA stack is perfectly suited for a wide range of FPV applications, including high-speed drone racing, dynamic freestyle flying, and professional aerial cinematography. Its reliable performance makes it a great choice for pilots who push their drones to the limit.

Compatibility

The MAMBA MK4 F405MINI stack features a 20x20mm mounting pattern compatible with most FPV frames. It supports 3-5S Lipo input voltage for the ESCs and 3-6S for the flight controller, offering flexibility in power system choices. Multiple UARTs and standard connectors ensure broad compatibility with receivers, VTXs, GPS modules, and other FPV accessories.

FAQ

What is the Diatone MAMBA MK4 F405MINI 30A stack best suited for?

The Diatone MAMBA MK4 F405MINI 30A stack is ideal for FPV racing and freestyle drones. Its robust 30A ESCs and powerful F405 flight controller provide the performance needed for aggressive flying and high-speed maneuvers.

What Lipo battery voltage does the Diatone MAMBA MK4 F405MINI 30A support?

The ESCs in the MAMBA MK4 F405MINI stack support 3-5S Lipo batteries (12.6V-21V), while the flight controller can handle 3-6S Lipo batteries (12.6V-25.2V). This offers flexibility for various power setups.

Does the Diatone MAMBA MK4 F405MINI stack include an OSD?

Yes, the Diatone MAMBA MK4 F405MINI stack features an integrated OSD (On-Screen Display). This allows you to view crucial flight telemetry data directly on your FPV feed without needing a separate module.

Where can I buy the Diatone MAMBA MK4 F405MINI 30A stack with fast delivery?

You can buy the Diatone MAMBA MK4 F405MINI 30A stack at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.

What are the mounting dimensions for the Diatone MAMBA MK4 F405MINI stack?

The Diatone MAMBA MK4 F405MINI stack has a mounting size of 20mm x 20mm, compatible with most standard FPV drone frames. It uses M2 or M3 mounting screws.
