Diatone Mamba F405MK2V2 50A 6S 8bit FPV Drone Stack System

Introduction

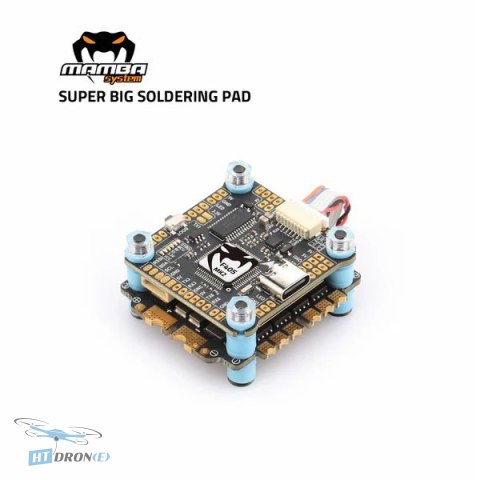

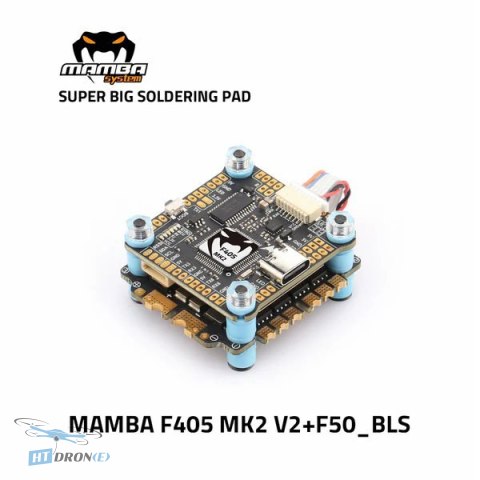

The Diatone Mamba F405MK2V2 50A 6S 8bit Stack System is a premium flight control and electronic speed controller (ESC) integrated unit designed for high-performance FPV and UAV applications. Built for pilots who demand reliability and power, this stack provides a solid foundation for custom drone builds, especially those requiring support for 6S LiPo batteries. It combines essential flight control functions with robust ESC capabilities, simplifying your build process and ensuring optimal performance.

Key Advantages

• Powerful Flight Controller: Features an STM32F405 MCU running at 168MHz for fast processing and stable flight.
• High Current ESC: Equipped with 50A continuous current ESCs, capable of handling demanding motors and 6S LiPo power.
• Robust Power Input: Supports 3~6S LiPo batteries (12.6V~25.2V), offering flexibility for various power setups.
• Integrated OSD: Built-in OSD functionality simplifies setup and provides real-time flight data.
• Ample UARTs: Offers 3 sets of UARTs for connecting peripherals like GPS, receivers, and VTX.
• Durable Construction: Designed with TVS protection for both the FC and ESC, enhancing longevity.
• Standard Mounting: Features a 30.5mm x 30.5mm mounting pattern compatible with most FPV frames.
• Quality Components: Includes a 1000uF/35V high-frequency capacitor and an original AMASS XT60 connector for reliable power delivery.

Technical Specifications

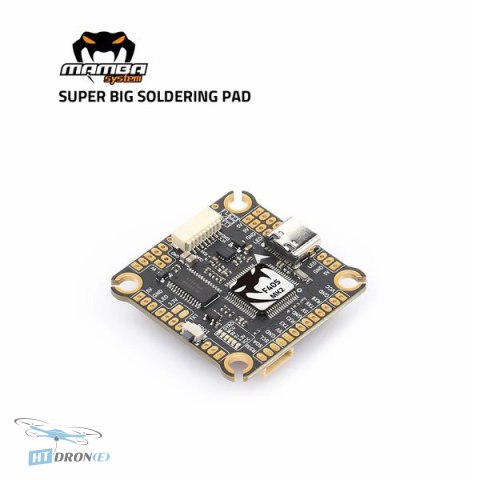

• FC Specifications:
  • MCU: STM32F405 168MHz
  • Gyro: MPU6000
  • Target: FURYF4OSD
  • OSD: Yes
  • Blackbox: 16M Flash memory
  • Barometer: No
  • UARTs: 3 sets
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 sets
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Diode: Yes
  • LED Controller: BF LED
  • Air Unit Port: Yes
  • WIFI: No
  • VTX Switch: No
  • Receiver Protection: Yes
  • BEC Protection: Yes
  • TVS Protection: Yes
  • BEC Output: 3.3V 0.5A & 5V 2A & 9V 2A
  • Input Voltage: 3~6S Lipo (12.6V~25.2V)
  • Mounting Size: 30.5mm/M3

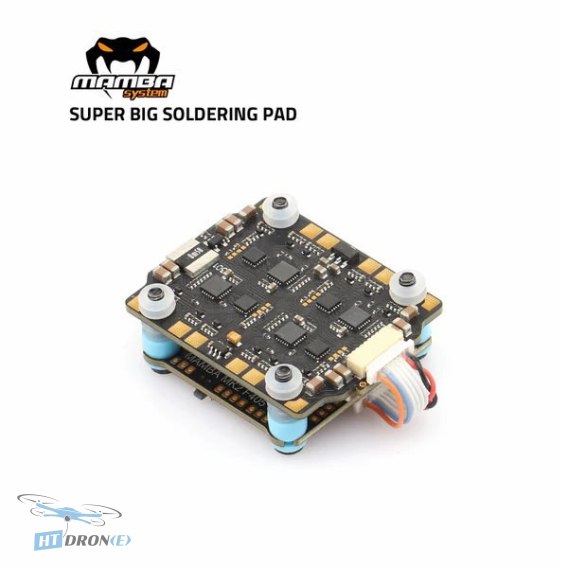

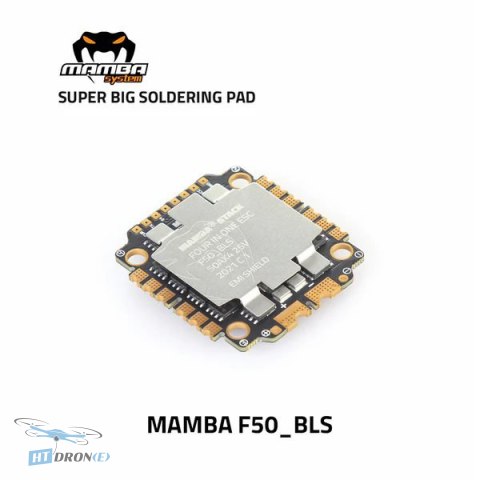

• ESC Specifications:
  • Model: MAMBA F50_BLS
  • Input Voltage: 3~6S Lipo (12.6V~25.2V)
  • Continuous Current: 50A x 4
  • Burst Current: 50A (10S)
  • BEC: No
  • Target: BLHeli_S CH40
  • SOFT: Dshot300/600
  • TVS Protection: No
  • Mounting: 30.5mm/M3
• Power Components:
  • Capacitor: 1000uF/35V x 1
  • Connectors: 8pin sh1.0 x 2, AIR UNIT sh1.0 x 1
  • Wiring: 12AWG 100mm x 2
  • XT60 Connector: AMASS Original XT60 x 1

Applications

This stack is ideal for building custom FPV racing drones, freestyle quadcopters, and high-performance UAVs that require reliable power handling and precise flight control. It is suitable for pilots using 6S LiPo batteries for maximum power and flight time.

Compatibility

The Diatone Mamba F405MK2V2 stack features a standard 30.5mm x 30.5mm mounting size, ensuring compatibility with a wide range of FPV drone frames. It supports 3-6S LiPo input voltage and utilizes SH1.0 connectors for various modules.

FAQ

What is the Diatone Mamba F405MK2V2 50A 6S 8bit Stack System?

The Diatone Mamba F405MK2V2 50A 6S 8bit Stack System is an integrated flight controller (FC) and electronic speed controller (ESC) unit designed for FPV drones. It provides core flight control and power management for your custom build, supporting up to 6S LiPo batteries.

What are the main advantages of using this FPV stack?

This stack offers a powerful STM32F405 MCU for fast processing, 50A continuous current ESCs for high-power demands, integrated OSD, and robust power input support up to 6S LiPo. It simplifies builds with its integrated design and includes protective features.

What FPV drone applications is this stack suitable for?

The Diatone Mamba F405MK2V2 stack is ideal for FPV racing drones, freestyle quadcopters, and custom UAV builds that require significant power and reliable flight control, especially when utilizing 6S LiPo batteries for enhanced performance.

What is the mounting size for the Diatone Mamba F405MK2V2 stack?

The Diatone Mamba F405MK2V2 stack features a standard 30.5mm x 30.5mm mounting pattern, making it compatible with most FPV drone frames that support this size.
