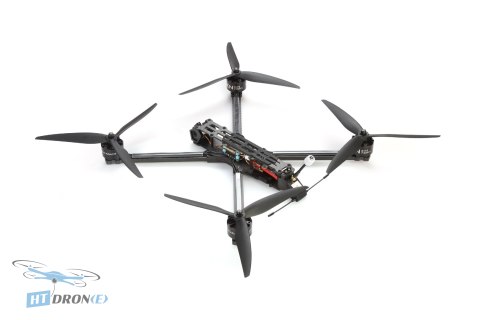

Diatone ROMA F10 ELRS 868/915MHz 10-inch FPV Drone for Long Range Flights

Introduction

The Diatone ROMA F10 ELRS 868/915MHz represents a significant upgrade in the 10-inch FPV drone category, specifically engineered by Diatone for unparalleled long-range performance. This drone is designed for pilots who demand extended flight times and greater operational distances, pushing the boundaries of FPV exploration. Its robust build and advanced components ensure reliability and power, making it a top choice for serious enthusiasts and professionals alike.

Key Advantages

• Exceptional Long-Range Capability: Achieve flight distances of up to 16.5 km and speeds of 160 km/h.
• Advanced Flight Controller: Equipped with the MAMBA F435 AI FC for precise and stable flight control.
• Powerful Video Transmission: Features a MAMBA 2.5W VTX for a clear and consistent video feed over long distances.
• High-Definition FPV Camera: Includes a CADDX H1 camera for sharp, high-resolution aerial imaging.
• Reliable ELRS Receiver: Integrated ELRS 868/915MHz receiver ensures robust and long-range control link.
• Durable H-Type Frame: Robust construction with 3mm thick plates for resilience.
• Versatile Power Options: Supports 4S to 6S LiPo batteries for flexible power management.
• Optimized for Distance: Designed from the ground up for extended flight missions and exploration.

Technical Specifications

• FC: MAMBA F435 AI
• ESC: MAMBA 55A 6S 4IN1
• VTX: MAMBA 2.5W VTX
• Camera: CADDX H1 High-Resolution
• RX: ELRS 868/915Mhz
• Motor: MAMBA 3115 730KV
• Maximum Speed: 160 km/h
• Maximum Take-off Altitude: 6000 m
• Maximum Wind Resistance: 7 m/s
• Operating Temperature: -15 ℃ to +40 ℃
• Rated Load: 2-3 kg
• Maximum Load: 4 kg
• Frame Shape: H-Type
• Average Plate Thickness: 3mm
• Motor Protection Ring: ø10.5mm
• Recommended Lipo: 4S-6S
• Propeller: GF1050

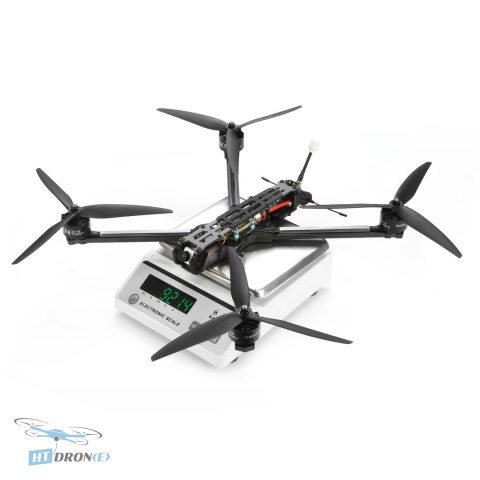

• Drone Weight: 915g

Applications

The Diatone ROMA F10 ELRS is ideally suited for long-range FPV flights, aerial photography, mapping, and advanced UAV operations where extended flight time and distance are critical. It is also excellent for exploring remote areas and conducting inspections over large sites.

Compatibility

This drone is compatible with 4S-6S LiPo batteries. The integrated ELRS 868/915Mhz receiver ensures compatibility with ExpressLRS control systems.

FAQ

What is the maximum flight distance for the Diatone ROMA F10 ELRS 868/915MHz drone?

The Diatone ROMA F10 ELRS drone is designed for extreme long-range flights, capable of reaching up to 16.5 km. This makes it ideal for extended exploration and missions where distance is key.

What FPV camera and VTX does the Diatone ROMA F10 use?

This FPV drone is equipped with a high-resolution CADDX H1 camera for clear video capture and a powerful MAMBA 2.5W VTX to ensure a stable video signal over long distances.

What is the recommended battery for the Diatone ROMA F10 FPV drone?

The Diatone ROMA F10 FPV drone supports a range of LiPo batteries from 4S to 6S, offering flexibility in power choice to suit your flight needs and duration.

Can I buy the Diatone ROMA F10 ELRS drone with fast delivery to Ukraine?

Yes, HTDRONE ships to Ukraine via Nova Poshta (Нова Пошта). You can order the Diatone ROMA F10 ELRS drone and expect fast and reliable delivery to your location.

What are the main applications for the Diatone ROMA F10 drone?

The Diatone ROMA F10 is primarily designed for long-range FPV flights, aerial photography, mapping, and advanced UAV operations. Its capabilities also extend to inspecting large areas and exploring remote locations.
