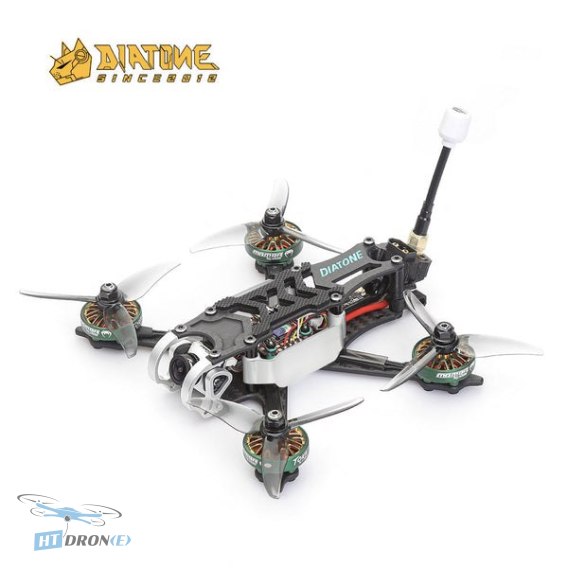

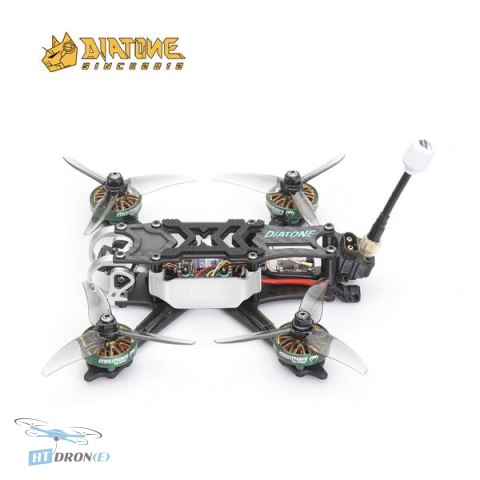

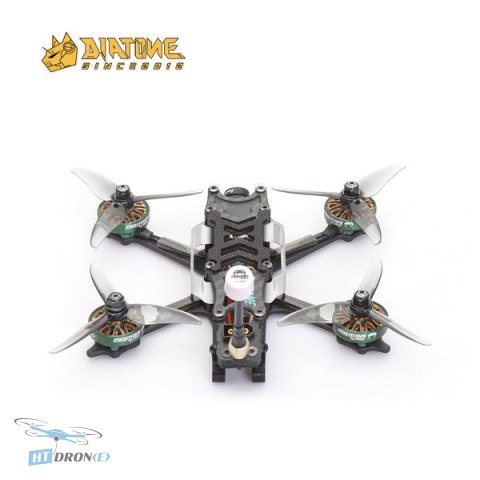

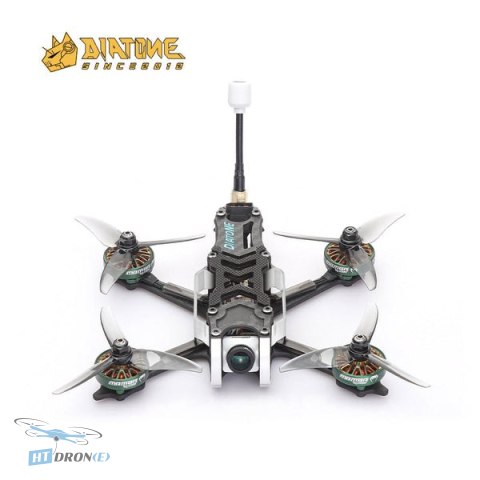

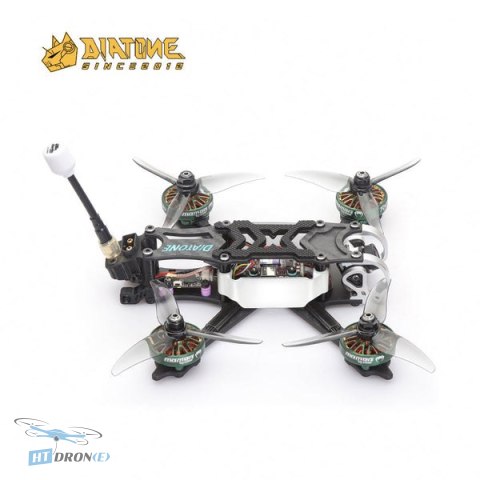

Diatone Roma F35 4S BNF FPV Drone with TBS Receiver for Freestyle Flying

Introduction

The Diatone Roma F35 4S BNF is a high-performance FPV drone meticulously engineered for freestyle enthusiasts. This Bind-N-Fly (BNF) model comes equipped with a TBS receiver, making integration with your compatible radio system seamless. It's designed to deliver exceptional agility and power, allowing pilots to perform advanced tricks and explore the skies with confidence. If you're looking for a ready-to-fly solution that doesn't compromise on quality or performance, the Roma F35 4S is an excellent choice for your next FPV build.

Key Advantages

• Ready-to-fly BNF configuration with pre-installed TBS receiver for quick setup.
• Powerful MAMBA TOKA 2203.5 4200KV 4S motors for dynamic freestyle performance.
• Durable Roma F35 frame constructed from T300 3K carbon fiber and 7075 aluminum.
• High-quality RUNCAM PHOENIX 2 camera for crisp FPV video feed.
• Integrated MAMBA Ultra tiny VTX and MAMBA ULTRA RHCP antenna for reliable video transmission.
• Robust flight control system featuring MAMBA F722 MINI MK4 FC and MAMBA F40BLS_MINI ESC.
• Optimized 3.5-inch propeller size for a balance of thrust and maneuverability.
• Designed for 4S LiPo batteries (850-1000mAh recommended) for extended flight times.

Technical Specifications

• Model: Roma F35 4S (TBS Receiver)
• Camera: RUNCAM PHOENIX 2
• Antenna: MAMBA ULTRA RHCP
• VTX: MAMBA Ultra tiny
• Flight Controller (FC): MAMBA F722 MINI MK4
• Electronic Speed Controller (ESC): MAMBA F40BLS_MINI
• Motor: MAMBA TOKA 2203.5 4200 KV
• Recommended LiPo Battery (not included): 4S 850-1000mAh (approx. 6-7 mins flight time)
• Receiver: TBS CRSF
• Frame Specification: Roma F35
• Wheelbase: 158mm
• Frame Weight: 70g
• Propeller Size: 3.5 inch
• FC Mounting: 20x20 (M2/M3) / 30.5x30.5mm (M3)
• Motor Mount: 12mm (M2) / 16mm (M3)
• Camera Mount Spacing: 19/20mm
• Max Stack Height: 25 mm
• Top Plate Thickness: 2 mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 3 mm
• Aluminum Alloy: 7075
• Carbon Fiber: T300 3K

Applications

This drone is primarily designed for FPV freestyle flying, allowing pilots to perform dynamic acrobatics, flips, rolls, and navigate complex environments. It's also suitable for capturing cinematic FPV footage and general FPV exploration.

Compatibility

Equipped with a TBS CRSF receiver, this drone is compatible with TBS Crossfire radio transmitters. The FC and ESC support standard 4S LiPo batteries. Mounting options for FC and motors are versatile, accommodating various build preferences.

FAQ

What is the Diatone Roma F35 4S BNF drone best suited for?

The Diatone Roma F35 4S BNF drone is specifically designed for FPV freestyle flying. Its powerful motors, agile frame, and reliable TBS receiver make it ideal for performing complex aerial maneuvers and tricks.

Does the Diatone Roma F35 4S come with a receiver?

Yes, this is a Bind-N-Fly (BNF) model and comes equipped with a TBS CRSF receiver pre-installed, ready to bind with your compatible TBS radio transmitter.

What type of battery is recommended for the Diatone Roma F35 4S?

The recommended battery for the Diatone Roma F35 4S is a 4S LiPo with a capacity between 850mAh and 1000mAh, which typically provides flight times of 6-7 minutes.

Where can I buy the Diatone Roma F35 4S FPV drone?

You can buy the Diatone Roma F35 4S FPV drone at HTDRONE. We offer fast shipping within Poland and reliable delivery options to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What are the key components of the Diatone Roma F35 4S?

Key components include the MAMBA TOKA 2203.5 4200KV motors, RUNCAM PHOENIX 2 camera, MAMBA F722 MINI MK4 flight controller, and MAMBA F40BLS_MINI ESC, all housed within the robust Roma F35 carbon fiber frame.
