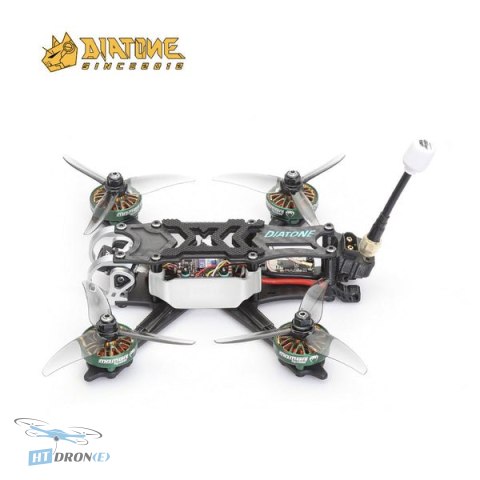

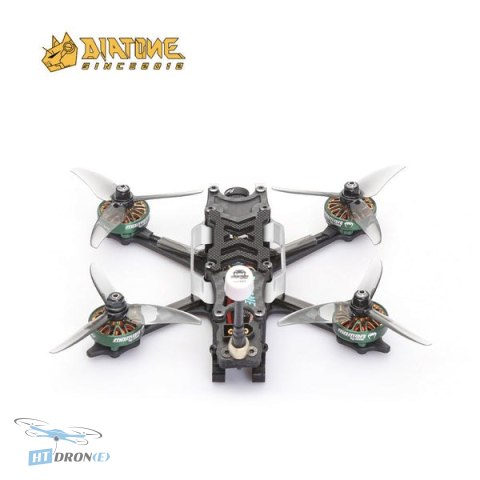

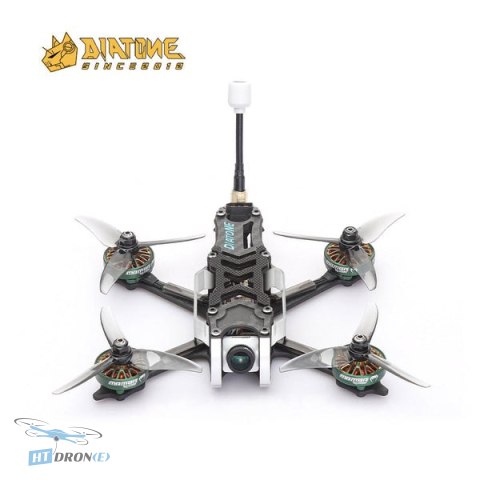

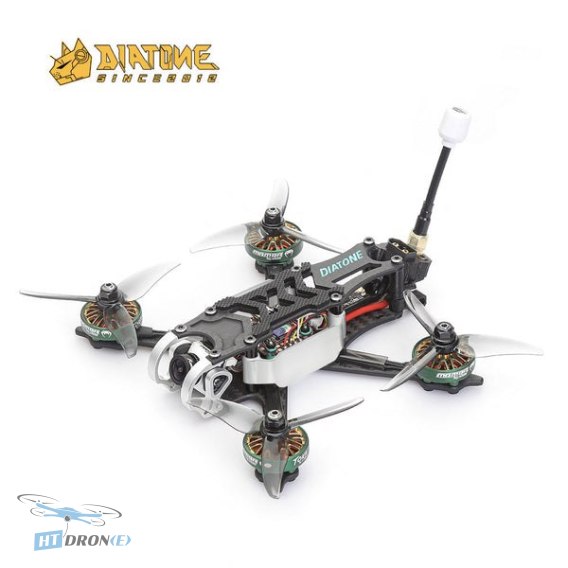

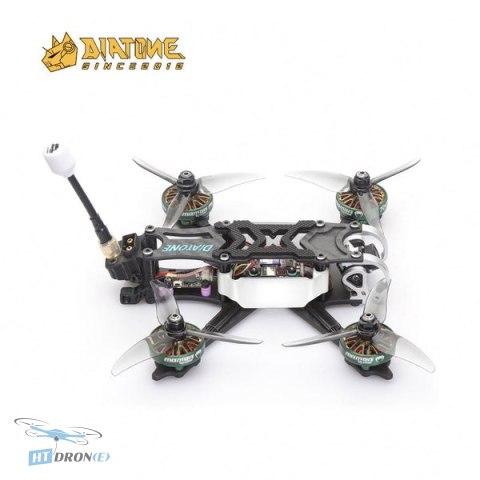

Diatone Roma F35 4S PNP FPV Freestyle Drone with MAMBA TOKA Motors

Introduction

The Diatone Roma F35 4S PNP is a high-performance FPV drone meticulously engineered for the demanding world of freestyle flying. Built around a robust 3.5-inch frame, this drone combines agility with power, offering pilots an exceptional platform for executing complex maneuvers and capturing stunning aerial footage. It comes as a PNP (Plug and Play) unit, meaning it's ready for your receiver and battery, making setup straightforward for experienced hobbyists.

Key Advantages

• Optimized 3.5-inch frame size for a perfect balance of agility and stability in freestyle flight.
• Powerful MAMBA TOKA 2203.5 4200KV 4S motors deliver exhilarating speed and control.
• High-quality RUNCAM PHOENIX 2 camera ensures clear, vibrant FPV feed.
• Reliable MAMBA F722 MINI MK4 FC and MAMBA F40BLS_MINI ESC provide stable and responsive flight control.
• Durable construction featuring T300 3K carbon fiber and 7075 aluminum components for resilience.
• Designed for 4S LiPo batteries, offering a good balance of power and flight time (6-7 minutes recommended).
• Includes essential accessories like propellers, buzzer, and battery straps for immediate setup.
• PNP configuration allows for easy integration of your preferred receiver.

Technical Specifications

• Model: Roma F35 4S PNP (Receiver not included)
• Camera: RUNCAM PHOENIX 2
• Antenna: MAMBA ULTRA RHCP
• VTX: MAMBA Ultra tiny
• Flight Controller: MAMBA F722 MINI MK4
• ESC: MAMBA F40BLS_MINI
• Motor: MAMBA TOKA 2203.5 4200 KV
• Recommended LiPo Battery (not included): 4S 850-1000mAh (approx. 6-7 minutes flight time)

Frame Specifications (Roma F35)

• Wheelbase: 158mm
• Weight: 70g
• Propeller Size: 3.5 inch
• FC Mounting: 20x20mm (M2/M3) / 30.5x30.5mm (M3)
• Motor Mounting: 12mm (M2) / 16mm (M3)
• Camera Mounting: 19mm/20mm
• Max Stack Height: 25mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 3mm
• Aluminum Alloy: 7075
• Carbon Fiber: T300 3K

Included Accessories:

• 1x GF 3520 Propeller Set
• 1x Buzzer
• 2x Battery Straps
• 1x M2 Screw Accessory Kit
• 1x M3 Screw Accessory Kit
• 1x 20mm PC Standoff

Applications

This FPV drone is ideal for freestyle flying, aerial acrobatics, and capturing dynamic FPV footage. It's suited for pilots looking to push their skills in open spaces or complex environments. While primarily designed for freestyle, its robust build and reliable components also make it suitable for general FPV flying and practice.

Compatibility

The Roma F35 4S PNP requires a compatible FPV receiver (not included) to be installed. It is designed to work with 4S LiPo batteries in the 850-1000mAh range. The flight controller supports standard mounting patterns (20x20mm and 30.5x30.5mm), and motor mounts are compatible with common M2 and M3 screw sizes.

FAQ

What is the Diatone Roma F35 4S PNP best suited for?

The Diatone Roma F35 4S PNP is specifically designed for FPV freestyle flying. Its 3.5-inch frame, powerful motors, and agile handling make it ideal for performing aerial acrobatics and capturing dynamic footage.

What FPV camera does the Roma F35 4S PNP come with?

This FPV drone is equipped with the RUNCAM PHOENIX 2 camera, known for delivering a clear and vibrant video feed essential for precise FPV piloting.

What battery is recommended for the Diatone Roma F35 4S PNP?

For optimal performance and flight times of approximately 6-7 minutes, a 4S LiPo battery with a capacity between 850mAh and 1000mAh is recommended. The battery is not included.

Where can I buy the Diatone Roma F35 4S PNP in Europe?

You can buy the Diatone Roma F35 4S PNP at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL, ensuring you get your FPV drone quickly.

Is the Diatone Roma F35 4S PNP ready to fly out of the box?

The Roma F35 4S PNP is a Plug and Play (PNP) drone. This means it comes pre-assembled with all core components but requires you to install your own compatible FPV receiver and battery before flying.
