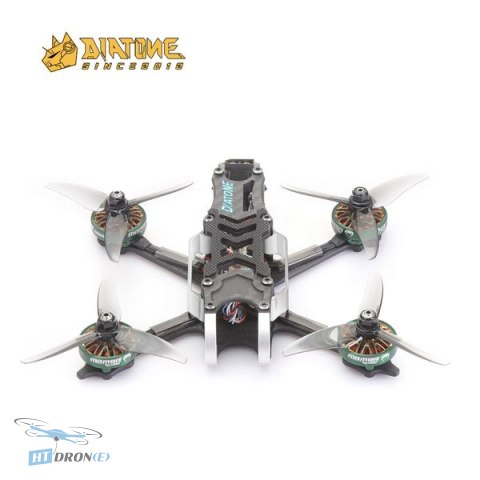

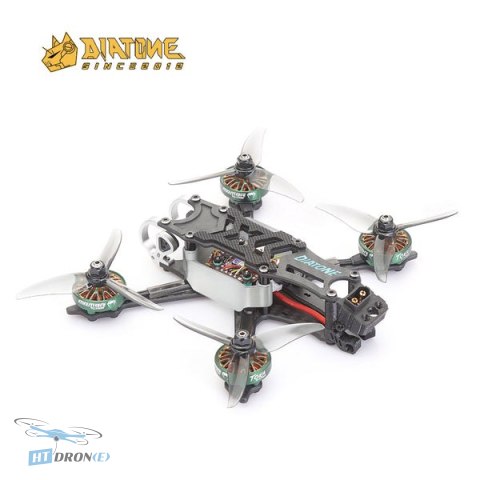

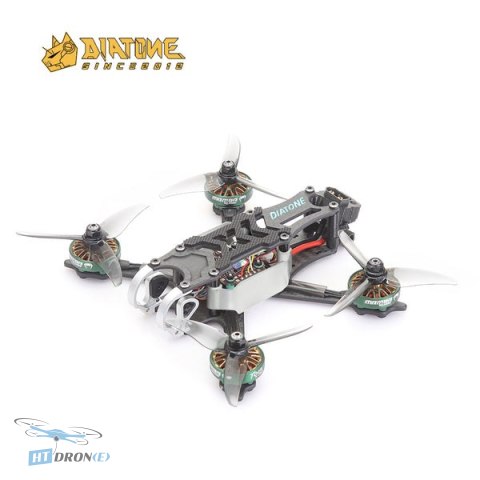

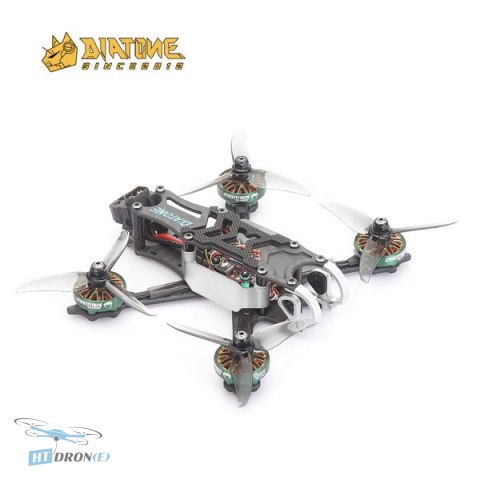

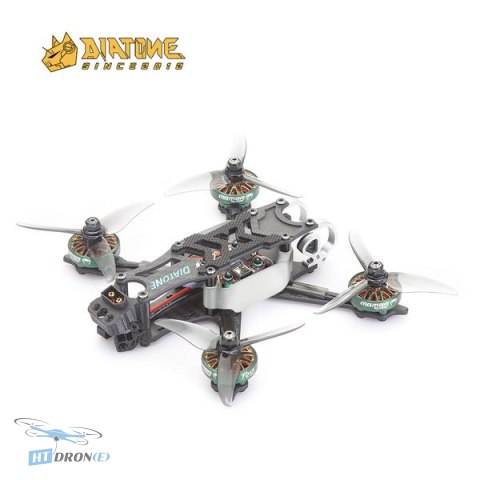

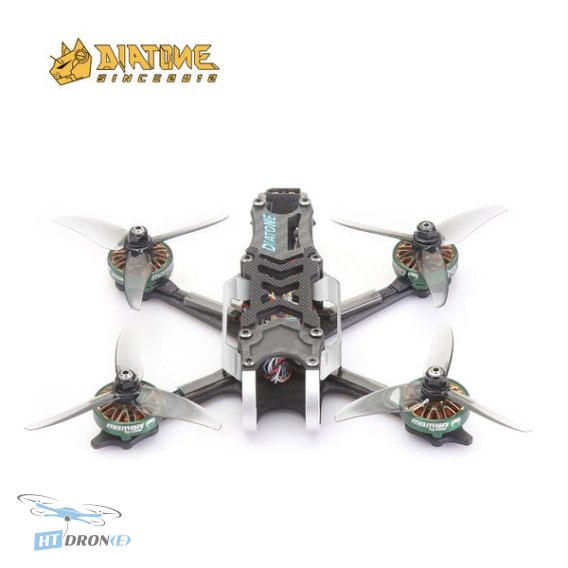

Diatone Roma F35 4S Power Unit FPV Drone with Mamba MSR Receiver

Introduction

The Diatone Roma F35 4S Power Unit is the heart of a high-performance FPV drone, designed for freestyle enthusiasts. This version focuses on the essential power and control systems, excluding the camera and VTX, allowing for maximum customization. It comes integrated with a Mamba MSR (Frsky RXSR) receiver, making it a perfect base for building your dream FPV rig, especially for those utilizing the DJI Vista system. Shop now at HTDRONE for this exceptional power unit.

Key advantages

• Integrated Mamba MSR (Frsky RXSR) receiver for reliable control.
• Optimized for DJI Vista system compatibility, offering a streamlined setup.
• Robust construction featuring 3mm carbon fiber arms and 7075 aluminum components.
• Designed for 3.5-inch propellers and a 158mm wheelbase for agile freestyle performance.
• Includes essential accessories like GF 3520 propellers and a buzzer for a quick start.
• High-quality Diatone components ensure durability and performance.
• Flexible mounting options for FC (20x20/30.5x30.5mm) and motors.
• Lightweight design at approximately 200g for enhanced flight dynamics.

Technical specifications

• Product Name: Roma F35 4S Power Kit (MSR Receiver)
• Camera: -
• VTX: -
• Antenna: MAMBA Ultra LHCP
• FC: MAMBA DJI F722 MINI MK2
• ESC: MAMBA F40BLS_MINI
• Motor: MAMBA TOKA 2203.5 4200 KV
• Recommended Lipo (not included): 4s 850-1000mah (approx. 6-7 mins flight time)
• Receiver: Mamba MSR Receiver (Frsky RXSR)
• Wheelbase: 158mm
• Propeller Size: 3.5 inch
• FC Mounting: 20x20 (M2/M3)/30.5x30.5mm (M30)
• Motor Mount: 12mm (M2)/16mm (M3)
• Camera Mount Spacing: 19/20 mm
• Max Stack Height: 25 mm
• Top Plate: 2 mm
• Bottom Plate: 3mm
• Arm: 3 mm
• Aluminum: 7075
• Carbon Fiber: T300 3K
• Weight: 200g

Applications

This power unit is perfectly suited for building custom FPV freestyle drones, racing drones, and versatile UAV platforms. It's an excellent choice for pilots looking to integrate with the DJI ecosystem, offering a solid foundation for cinematic FPV flying, aggressive freestyle maneuvers, and general aerial exploration.

Compatibility

This unit is designed to work seamlessly with the DJI Vista system. It features flexible mounting options for the Flight Controller (20x20mm, M2/M3 or 30.5x30.5mm, M30) and motors (12mm M2 or 16mm M3). The camera mount spacing is compatible with 19mm and 20mm cameras. It supports 3.5-inch propellers and requires a 4S LiPo battery (850-1000mAh recommended).

FAQ

What is the Diatone Roma F35 4S Power Unit?

The Diatone Roma F35 4S Power Unit is the core component of an FPV drone, including the flight controller, ESC, motors, and receiver. It's designed for pilots who want to build a custom FPV drone, especially those using the DJI Vista system, as it excludes the camera and VTX for greater flexibility.

What receiver is included with the Diatone Roma F35 4S Power Unit?

This power unit comes equipped with a Mamba MSR receiver, which is compatible with the Frsky RXSR protocol, ensuring reliable control for your FPV drone.

Is the Diatone Roma F35 4S Power Unit compatible with DJI FPV System?

Yes, this power unit is specifically designed to support the DJI Vista system. While it doesn't include a camera or VTX, it's optimized for easy integration with DJI digital FPV components.

What are the recommended battery specifications for the Diatone Roma F35 4S Power Unit?

For optimal performance and flight times of approximately 6-7 minutes, a 4S LiPo battery with a capacity between 850mAh and 1000mAh is recommended for the Diatone Roma F35 4S Power Unit.

Where can I buy the Diatone Roma F35 4S Power Unit and what are the shipping options?

You can buy the Diatone Roma F35 4S Power Unit at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL for international customers. Check our store for the best deals and order your FPV components today!
