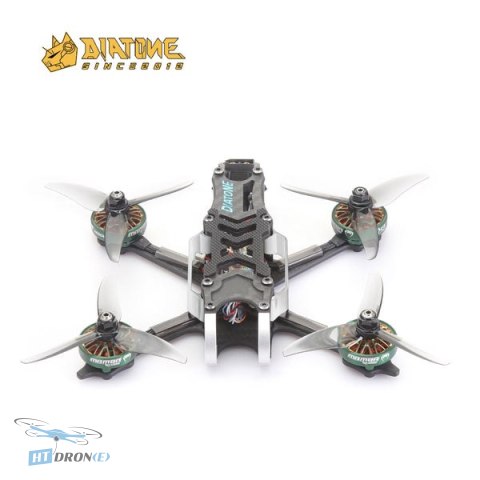

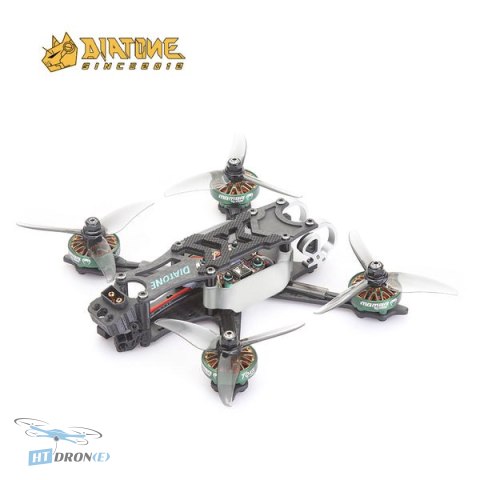

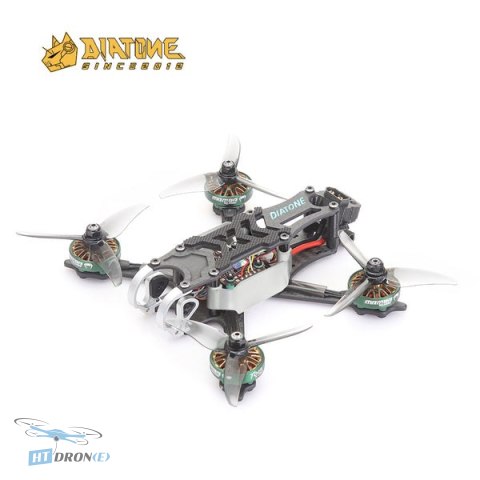

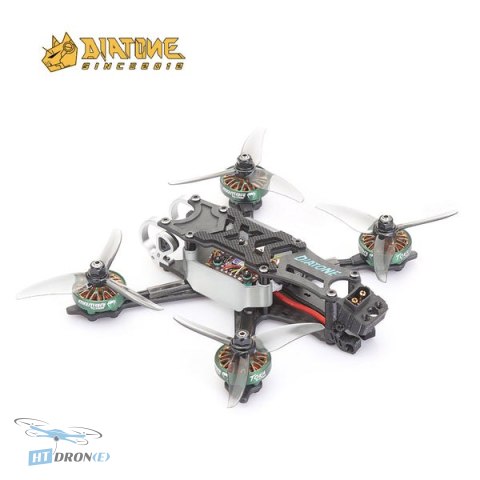

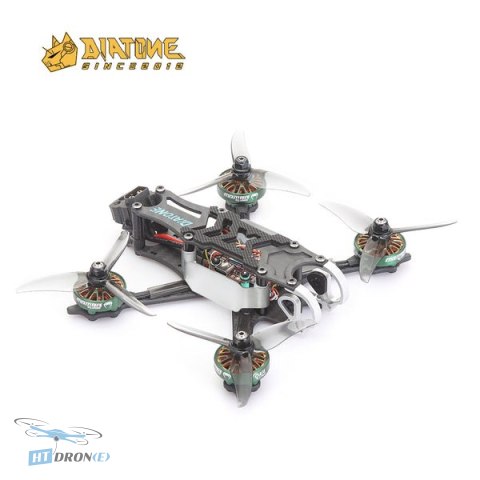

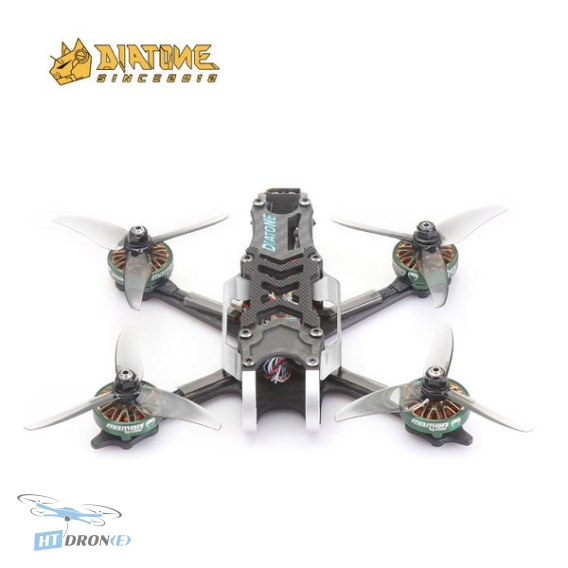

Diatone Roma F35 4S Power Unit FPV Drone with TBS Receiver

Introduction

The Diatone Roma F35 4S Power Unit is a specialized FPV drone component designed for enthusiasts seeking high performance and reliable control. This version comes pre-equipped with a TBS Crossfire Nano receiver, making it an excellent choice for pilots who prefer the TBS Crossfire system. It's tailored for the DJI Vista system, ensuring a seamless integration for advanced FPV flying. Ideal for freestyle pilots looking to build or upgrade their FPV drone with premium components.

Key Advantages

• Integrated TBS Crossfire Nano Receiver for reliable long-range control.
• Optimized for DJI Vista system for a smooth FPV experience.
• High-performance MAMBA components including F722 F7 Mini MK2 FC and F40BLS Mini ESC.
• Powerful MAMBA TOKA 2203.5 4200KV motors for agile flight.
• Durable construction with 3K T300 Carbon Fiber and 7075 Aluminum Alloy.
• Versatile mounting options for FC and motors to suit various builds.
• Includes essential accessories like GF 3520 propellers and a buzzer.
• Lightweight design at approximately 200g for optimal flight dynamics.

Technical Specifications

• Product Name: Roma F35 4S Power Kit (TBS Receiver)
• Camera: -
• VTX: -
• Antenna: MAMBA Ultra LHCP
• FC: MAMBA DJI F722 MINI MK2
• ESC: MAMBA F40BLS_MINI
• Motor: MAMBA TOKA 2203.5 4200 KV
• Recommended Lipo (not included): 4S 850-1000mAh (approx. 6-7 mins flight time)
• Receiver: TBS Crossfire Nano
• Receiver Antenna: TBS Immortal-T v2
• Wheelbase: 158mm
• Propeller Size: 3.5 inch
• FC Mounting: 20x20mm (M2/M3) / 30.5x30.5mm (M30)
• Motor Mount: 12mm (M2) / 16mm (M3)
• Camera Mount Spacing: 19/20 mm
• Max Stack Height: 25 mm
• Top Plate: 2 mm
• Bottom Plate: 3 mm
• Arm: 3 mm
• Aluminum Alloy: 7075
• Carbon Fiber: T300 3K
• Weight: 200g

Applications

This power unit is ideal for freestyle FPV drones, custom FPV builds, and pilots looking for a high-performance setup for agile flying and aerial maneuvers. It's particularly suited for those integrating with the DJI ecosystem via the Vista system and utilizing TBS Crossfire for control.

Compatibility

This unit exclusively supports the DJI Vista system. For use with a DJI VTX, a separate DJI Dual Antenna Mount is required. The FC mounting supports 20x20mm (M2/M3) and 30.5x30.5mm (M30) standards, while motor mounts accommodate 12mm (M2) and 16mm (M3) patterns. Recommended Lipo: 4S 850-1000mAh.

FAQ

What is the Diatone Roma F35 4S Power Unit?

The Diatone Roma F35 4S Power Unit is a core component for building a high-performance FPV drone. It includes essential electronics like the flight controller, ESC, and a pre-installed TBS Crossfire Nano receiver, designed for freestyle flying and compatibility with the DJI Vista system.

Does this power unit include a camera and VTX?

No, this specific version of the Roma F35 4S Power Unit does not include a camera or VTX. It is designed to work with the DJI Vista system, and you would need to purchase a compatible camera and VTX separately if not using the DJI system.

What receiver is included with the Diatone Roma F35 4S Power Unit?

This power unit comes equipped with a TBS Crossfire Nano receiver and a TBS Immortal-T v2 antenna, offering reliable and long-range radio control for your FPV drone.

What are the recommended battery specifications for the Roma F35 4S Power Unit?

For optimal performance, a 4S LiPo battery with a capacity between 850mAh and 1000mAh is recommended. This configuration typically provides flight times of approximately 6-7 minutes.

Where can I buy the Diatone Roma F35 4S Power Unit with fast delivery?

You can buy the Diatone Roma F35 4S Power Unit with TBS receiver at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL, ensuring you receive your FPV parts quickly.
