Introduction

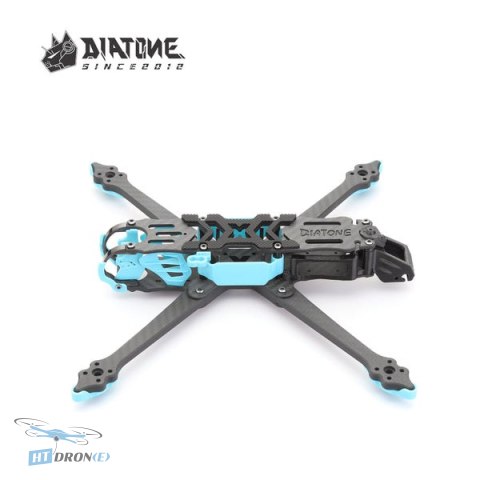

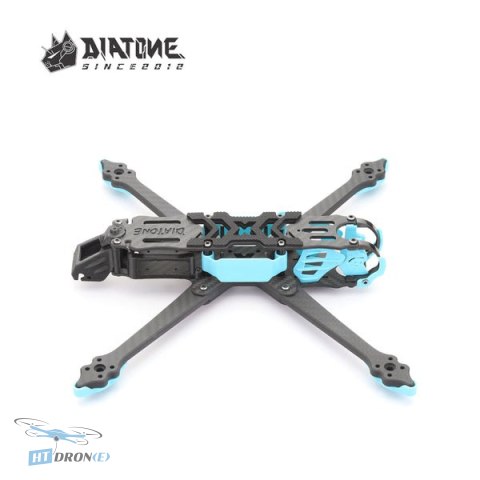

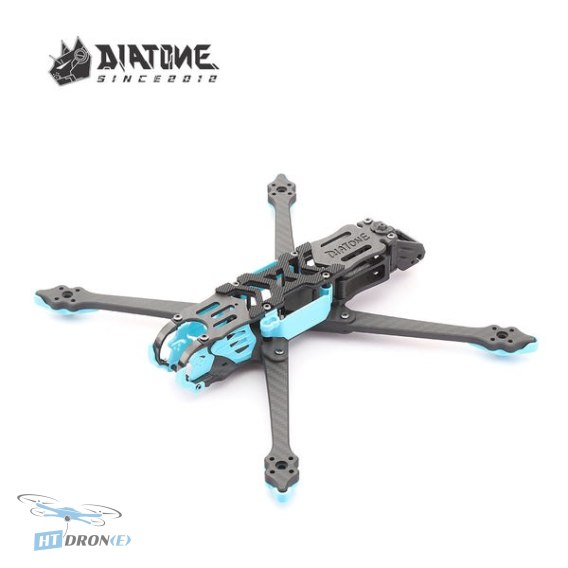

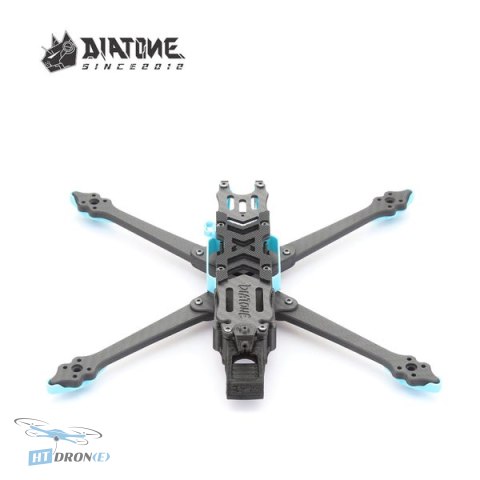

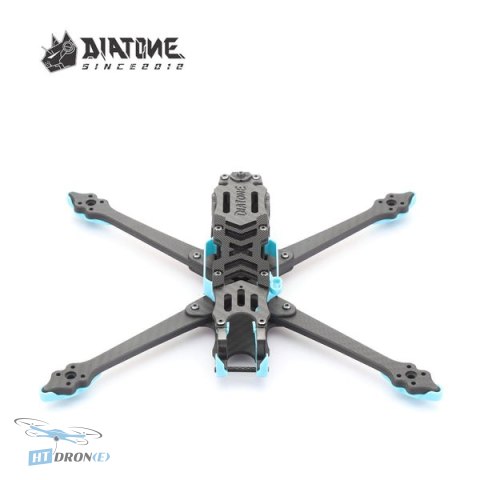

The Diatone Roma F7 Frame Kit is meticulously designed for demanding FPV racing and freestyle applications. It offers a solid and durable platform for constructing a high-performance drone capable of extreme maneuvers and stable flight. This frame kit is the perfect choice for pilots seeking reliability and agility in their FPV builds.

Key Advantages

• Robust construction with T300 3K carbon fiber and SUS304 metal parts for superior durability.
• Optimized for 7-inch propellers, delivering excellent thrust and flight characteristics for racing and freestyle.
• Versatile FC mounting options supporting both 30.5x30.5mm (M3) and 20x20mm (M2) stacks.
• Engineered for high-performance builds, recommended for 4-6S voltage and 28-series motors.
• Includes default blue injection-molded parts such as a head guard, camera mount, and arm protector for added protection and aesthetics.
• Generous maximum stack height of 23mm to accommodate various electronics.
• Designed for optimal flight stability and control, crucial for competitive FPV flying.
• Lightweight at only 200g, ensuring a high power-to-weight ratio for agile performance.

Technical Specifications

• Name: Roma F7 Frame Kit
• Propeller Size: 7 inch
• FC Mounting: 30.5x30.5mm (M3) and 20x20mm (M2)
• Motor Mount: 16mm (M3)
• Recommended Motor Size: 28 series motor
• Top Plate Thickness: 2.5mm
• Middle Plate Thickness: 2mm
• Bottom Plate Thickness: 3.5mm
• Arm Thickness: 6mm
• Max Stack Height: 23mm
• Rated Voltage (Recommended): 4-6S
• Recommended Lipo Battery Size: 6S 1600-1800 mAh
• Drone Nose Metal Parts: SUS304
• Carbon Fiber: T300 3K
• Wheelbase: 290mm
• Weight: 200g

Applications

This frame is ideally suited for FPV racing, competitive freestyle flying, and high-speed drone cinematography. Its robust design and 7-inch propeller support make it a versatile choice for pilots pushing the limits of drone performance.

Compatibility

The Diatone Roma F7 Frame Kit features flexible Flight Controller mounting options, supporting both 30.5x30.5mm (M3) and 20x20mm (M2) sizes. Motor mounting is compatible with 16mm (M3) patterns, suitable for 28-series motors. The maximum stack height accommodates up to 23mm of electronic components. Recommended for 4-6S LiPo batteries, with a sweet spot around 6S 1600-1800 mAh.

FAQ

What is the Diatone Roma F7 Frame Kit best suited for?

The Diatone Roma F7 Frame Kit is meticulously designed for high-performance FPV racing and freestyle applications. Its robust construction and 7-inch propeller support make it ideal for pilots seeking speed, agility, and durability.

What are the key materials used in the Diatone Roma F7 frame?

This frame kit is constructed from durable T300 3K carbon fiber for the main plates and arms, complemented by SUS304 metal parts for the drone nose. This combination ensures excellent strength and longevity.

What size flight controller and motors can be mounted on the Diatone Roma F7?

The Roma F7 supports FC mounting for both 30.5x30.5mm (M3) and 20x20mm (M2) stacks. Motor mounting is designed for 16mm (M3) patterns, recommended for 28-series motors.

What is the recommended battery voltage and size for the Diatone Roma F7?

The frame is rated for 4-6S voltage. For optimal performance, a 6S LiPo battery in the range of 1600-1800 mAh is recommended.
