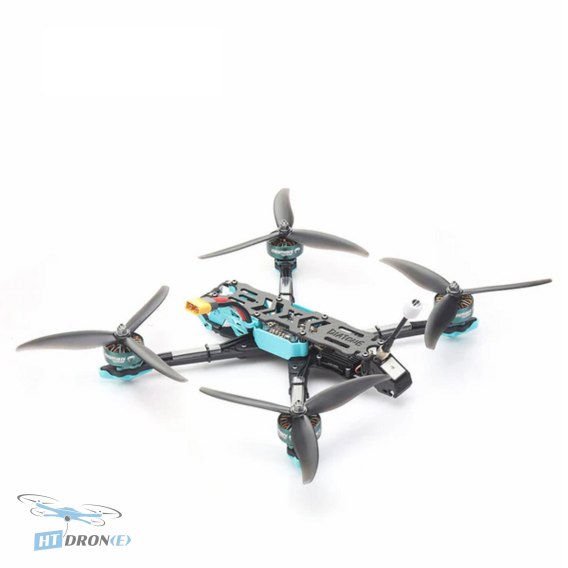

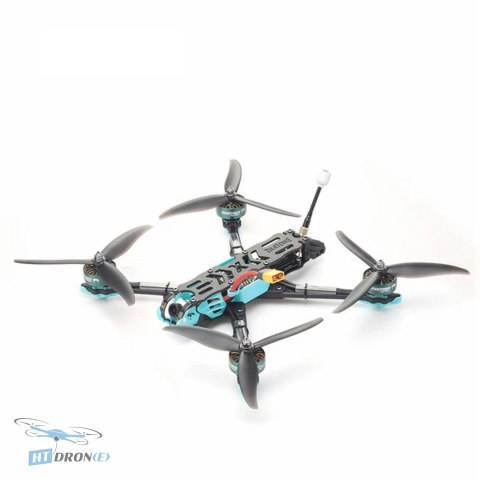

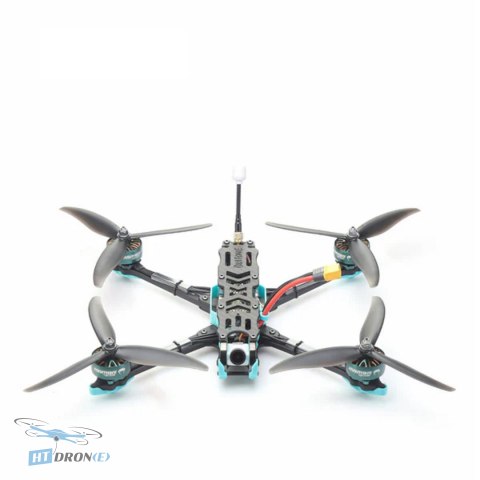

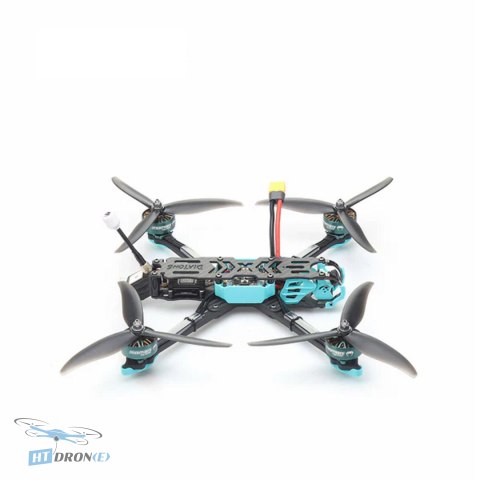

Diatone Roma F7 Ratel 2 VTX 2.5W FPV Drone for Long Range Flights

Introduction

The Diatone Roma F7 Ratel 2 VTX 2.5W is a premium 7-inch FPV drone engineered for pilots who demand exceptional performance in long-range flying. This advanced quadcopter combines a powerful 2.5W video transmitter with a high-quality camera, delivering crystal-clear video feeds and reliable signal strength over vast distances. It's the ideal platform for ambitious FPV adventures, aerial exploration, and challenging long-distance missions.

Key Advantages

• Extreme Long Range Capability: Designed specifically for extended flight distances.
• Powerful 2.5W VTX: Equipped with the MAMBA Ultra 2500 VTX for superior video transmission range and stability.
• High-Quality Imaging: Features the renowned Caddx Ratel 2 camera for sharp, clear FPV footage.
• Robust Construction: Built around the durable DIATONE Roma F7 frame with a protected body for enhanced resilience.
• Advanced Flight Controller & ESC: Utilizes MAMBA MK4 F722 APP FC and MAMBA F65 128K ESC for smooth and responsive flight control.
• Integrated GPS: Includes an M8PLUS GPS module for enhanced navigation and flight logging.
• Powerful Propulsion: Driven by Mamba Toka 2808 1100KV motors for strong performance.
• Large Battery Support: Optimized for a 5600mAh battery, providing extended flight times.

Technical Specifications

• Model: Roma F7 Ratel 2 VTX 2.5W
• Frame: DIATONE Roma F7
• Flight Controller (FC): MAMBA MK4 F722 APP
• Electronic Speed Controller (ESC): MAMBA F65 128K
• Video Transmitter (VTX): MAMBA Ultra 2500 2.5w
• GPS Module: M8PLUS
• FPV Camera: Caddx Ratel 2
• Antenna: MAMBA Ultra 160mm
• Motor: Mamba Toka 2808 1100KV
• Receiver (RX): ELRS868
• Body: Protected body
• Battery Capacity: 5600mAh x1 (recommended)
• Weight: 490g (without battery)
• Payload Capacity: Up to 2.0 kg

Applications

This drone is perfectly suited for long-range FPV flying, aerial photography and videography over extended distances, drone racing with a focus on endurance, and advanced UAV operations requiring reliable, long-distance control and video transmission.

Compatibility

The Diatone Roma F7 Ratel 2 VTX 2.5W is designed to work with compatible LiPo batteries, specifically recommending a 5600mAh capacity for optimal flight duration. It uses the ELRS868 receiver system.

FAQ

What is the main advantage of the Diatone Roma F7 Ratel 2 VTX 2.5W?

The primary advantage is its exceptional long-range capability, thanks to the powerful 2.5W MAMBA Ultra 2500 VTX and efficient design. This allows for reliable video transmission and control over extended distances, making it ideal for ambitious FPV pilots.

Who is the Diatone Roma F7 Ratel 2 VTX 2.5W FPV drone best suited for?

This drone is best suited for experienced FPV pilots who specialize in long-range flying and require robust, high-performance equipment. Its specifications also make it suitable for aerial exploration and demanding UAV missions.

What are the key components included in the Diatone Roma F7 Ratel 2 VTX 2.5W?

The drone includes the DIATONE Roma F7 frame, MAMBA MK4 F722 APP FC, MAMBA F65 128K ESC, MAMBA Ultra 2500 2.5w VTX, M8PLUS GPS, Caddx Ratel 2 camera, Mamba Toka 2808 1100KV motors, and an ELRS868 receiver.

What is the recommended battery for the Diatone Roma F7 Ratel 2 VTX 2.5W?

The drone is designed to use a 5600mAh battery. This capacity ensures a good balance between flight time and weight, optimizing performance for long-range flights.

Where can I buy the Diatone Roma F7 Ratel 2 VTX 2.5W with fast delivery?

You can buy the Diatone Roma F7 Ratel 2 VTX 2.5W directly from HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your order promptly.
